VAA1 series thermostat for various heating pads
VA1/VAA1 is a slow-action thermostat designed for low-voltage electrical appliances.Especially suitable for car seat cushions, pet pads and medical cushions.This bimetal thermostat has multiple terminals and a long life.
Features
Use bimetallic material with good electrical conductivity to ensure that it can withstand the requirements of normal loop current.
Creep action device,slow make/slow break switching action.
No obvious difference between the opening and closing temperature.
The housing is electrically conductive, and insulating sleeves can be added according to customer requirements.
Preset calibration temperature.
Available with same end termination, Model VA1-A or opposite end termination, Model VAA1-B.
Available with factory applied lead wires.
Specifications
|
Item No.
|
VA1/VAA1
|
|
Electrical specifications
|
5 amps/120 volts AC resistive
|
|
5 amps/24 volts DC resistive
|
|
Operating temperature range
|
5°C~200°C
|
|
Temperature tolerance
|
± 3°C, ± 5°C, ± 8°C
|
|
Case material
|
Metal
|
|
Case size(mm)
|
24.2*9.5*4.5
|
|
Wire
|
Optional and customized
|
Applications
 |
 |
 |
 |
| Car heating seat pads |
Electric blankets |

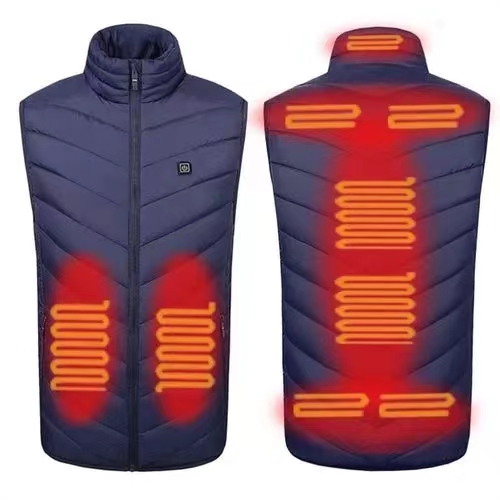

Electric heating suits |
Foot bath |
 |
 |
 |
 |

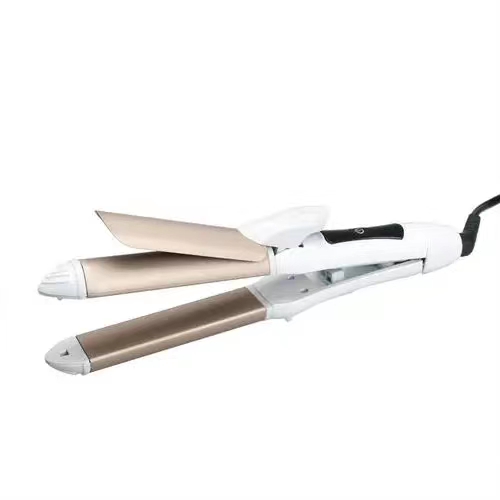

| Hair curlers |

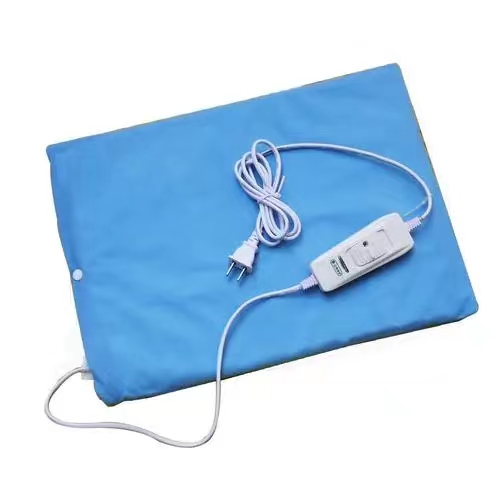

Medical pads |
Pet pads |

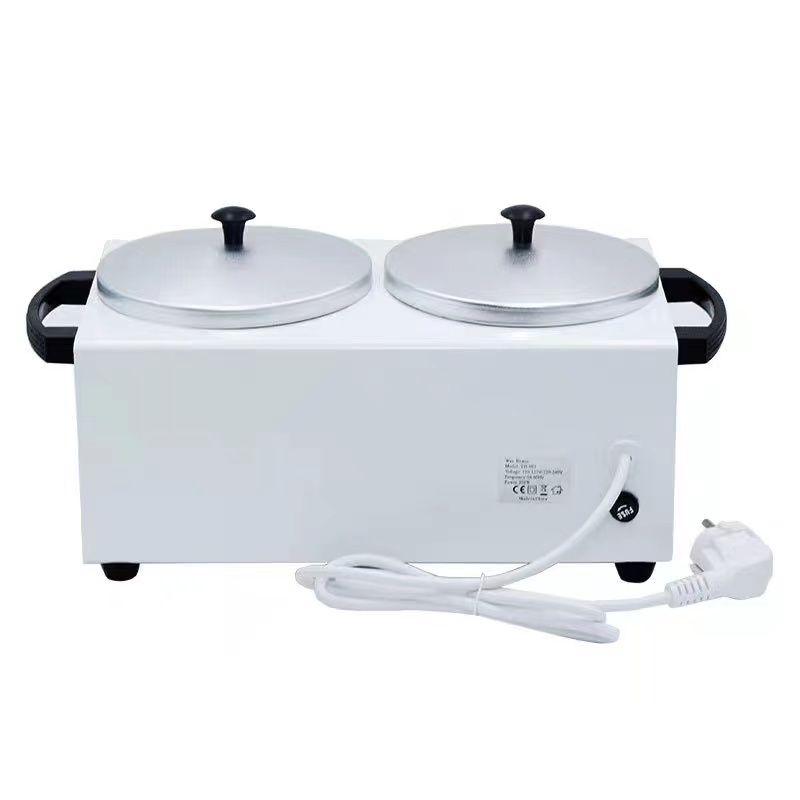

Wax melting machines |

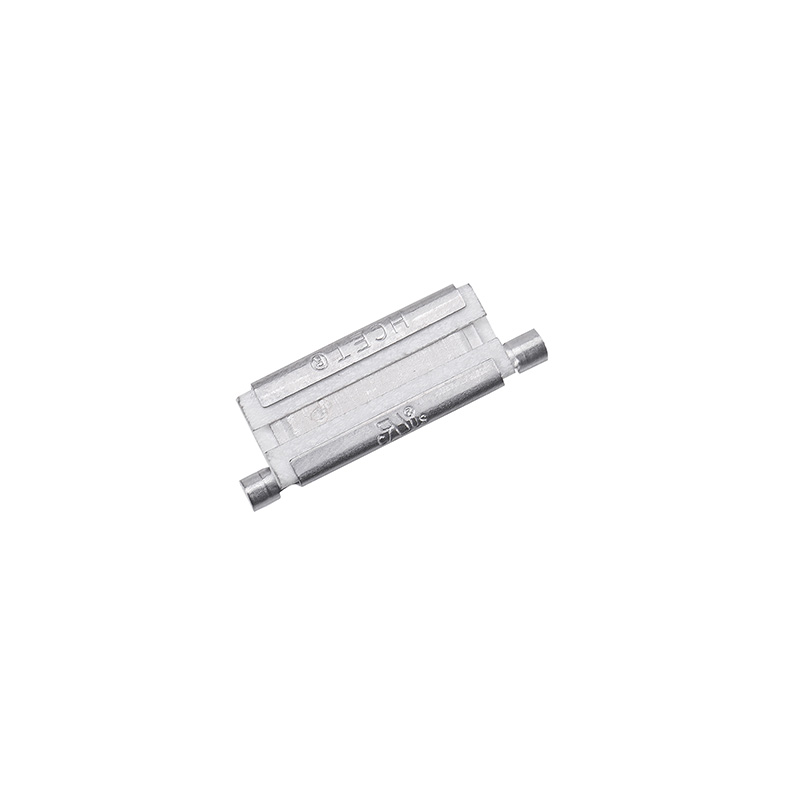

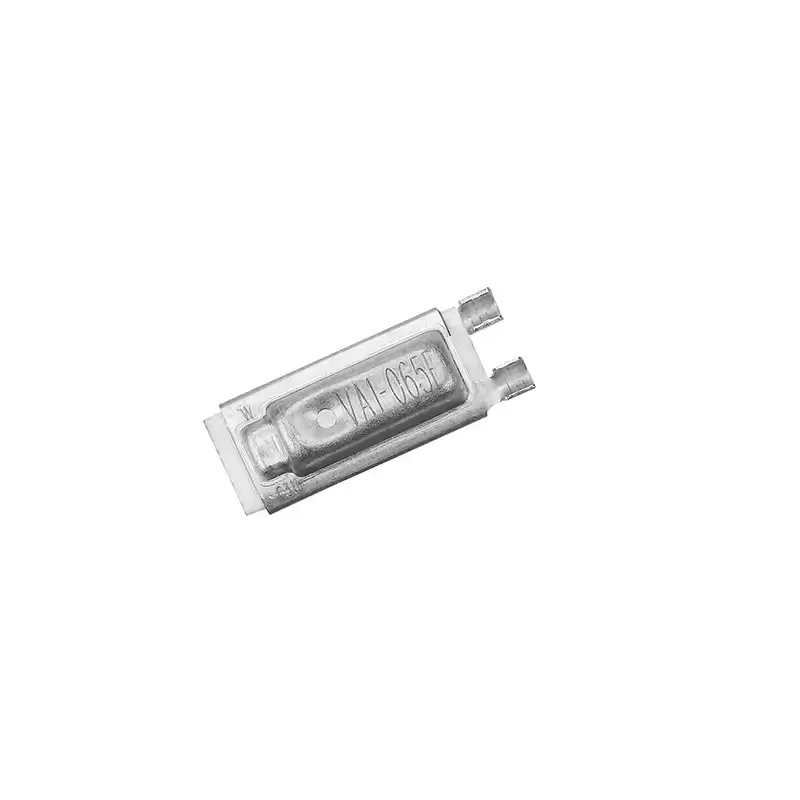

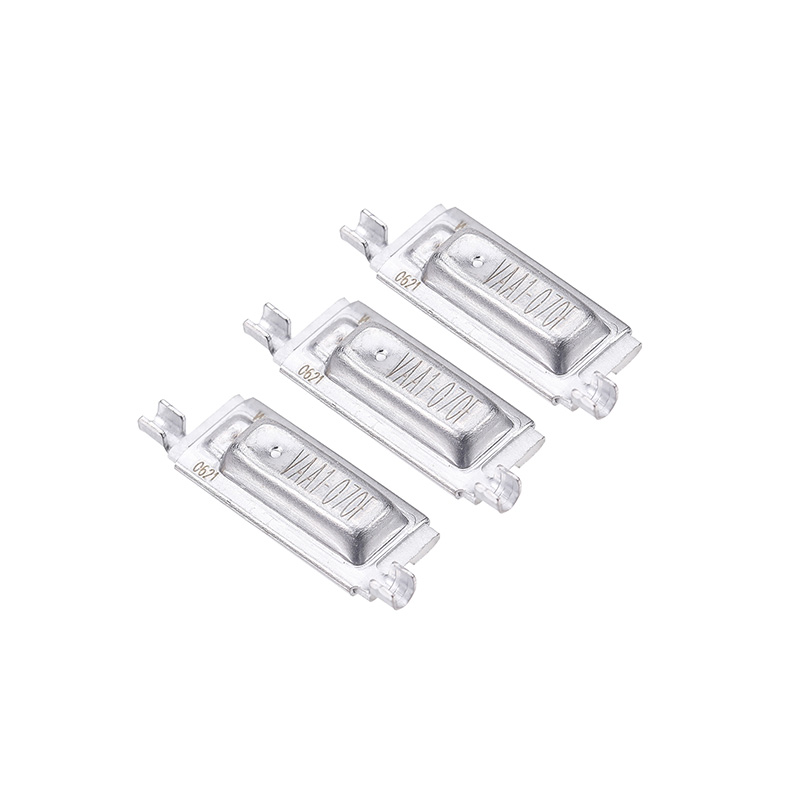

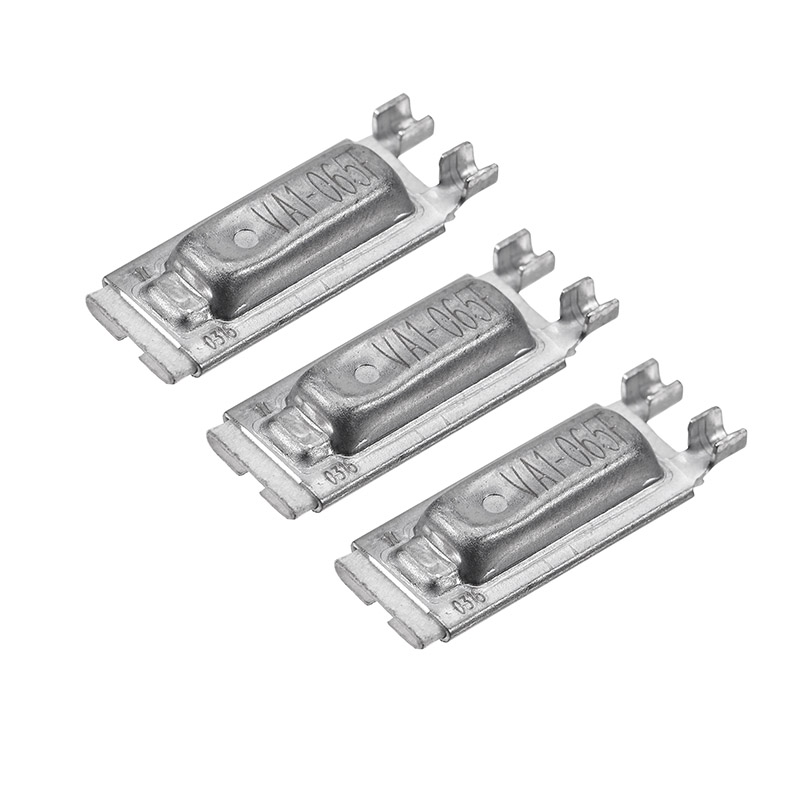

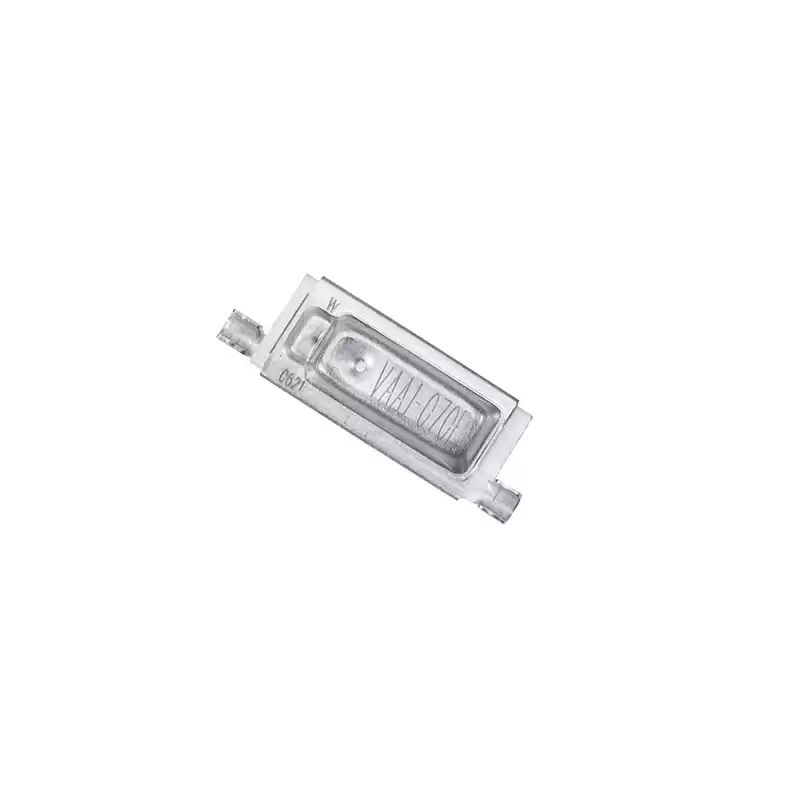

Product display

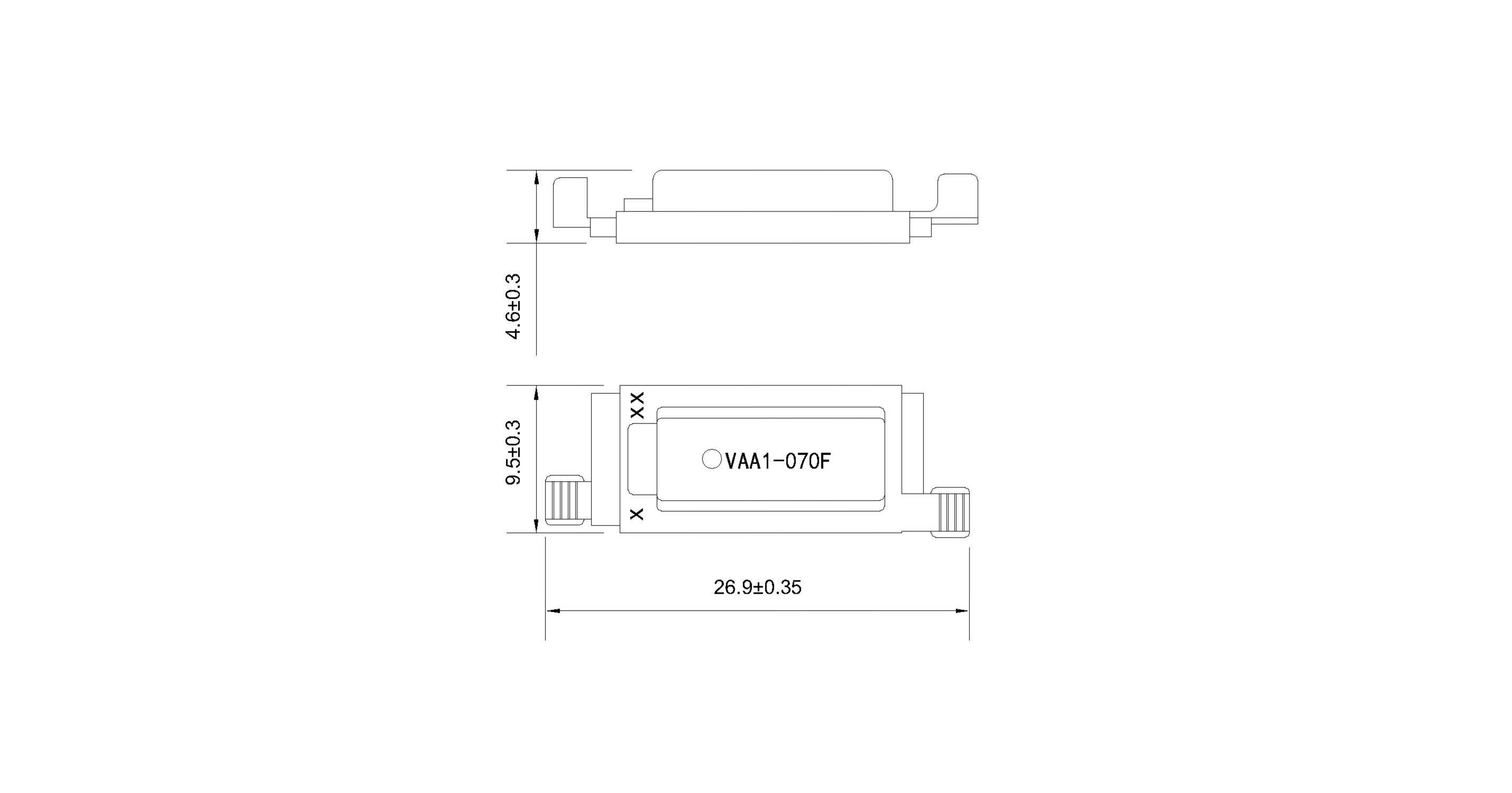

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.

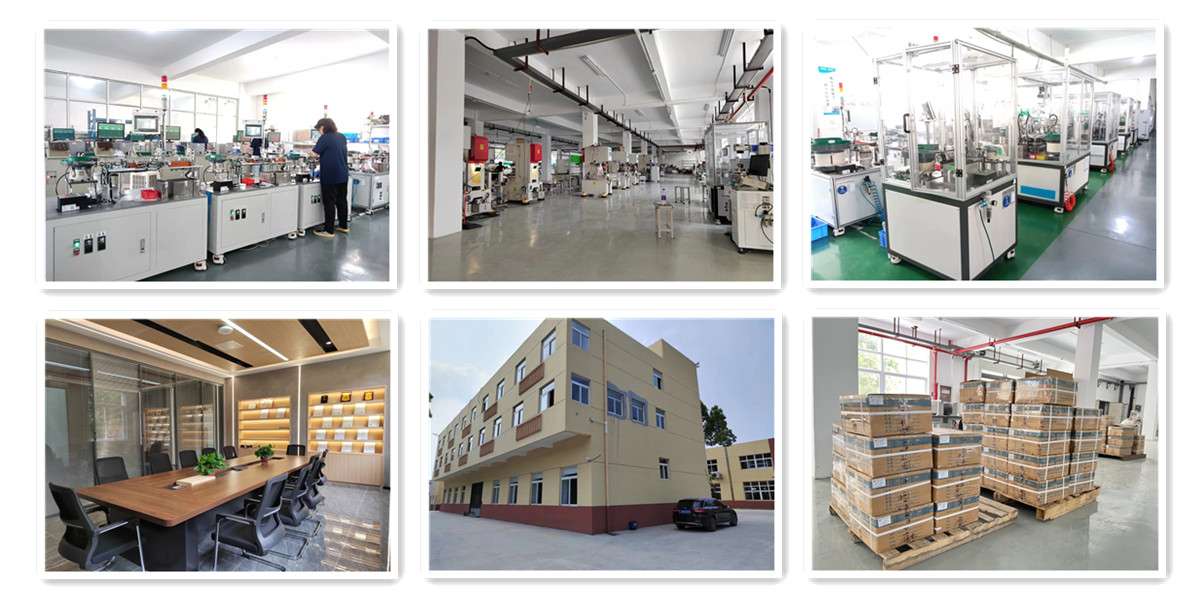

Factory display
