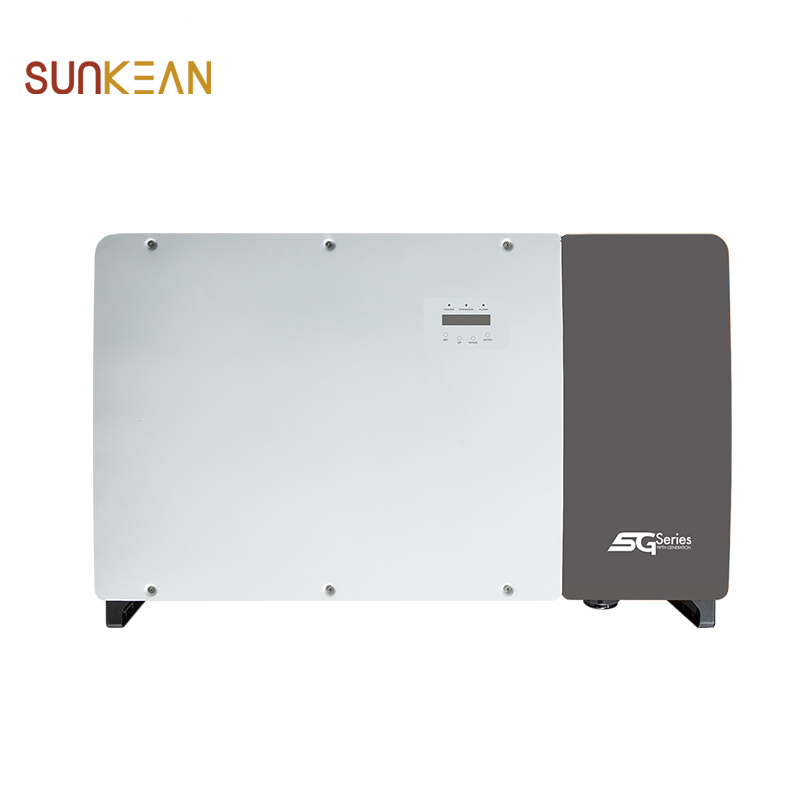

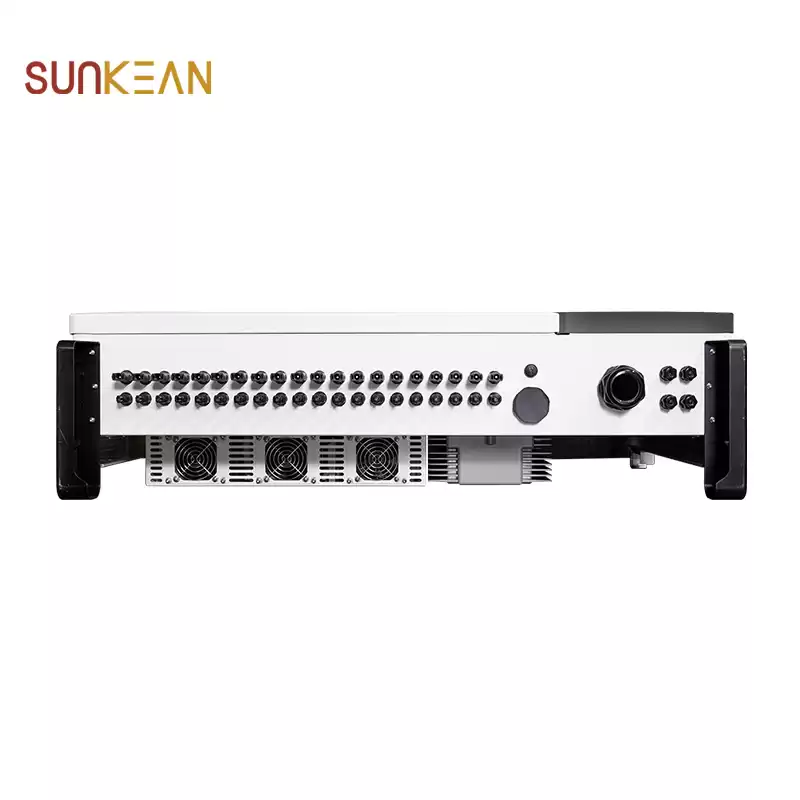

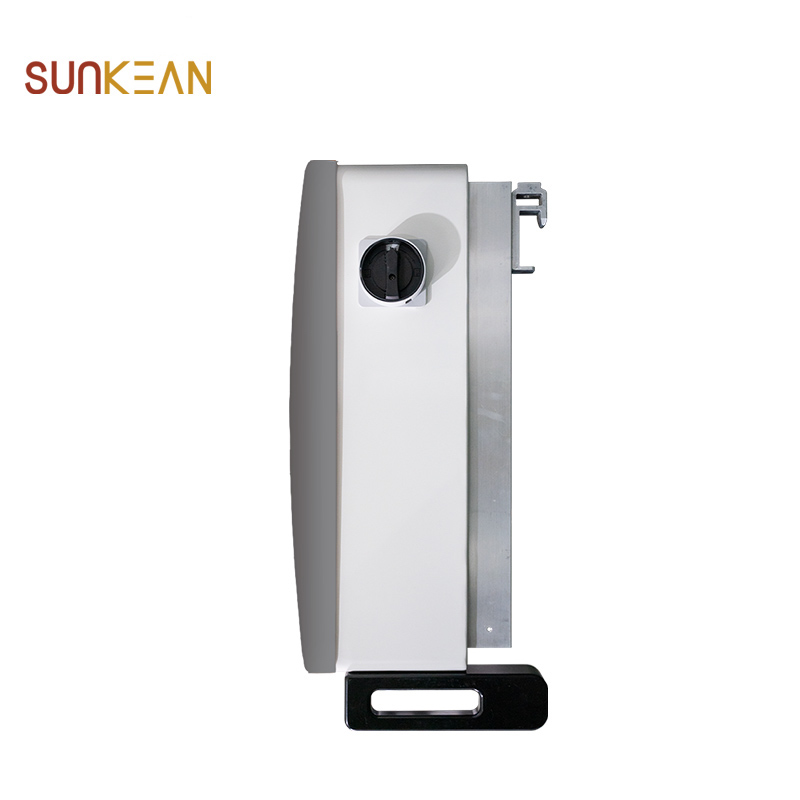

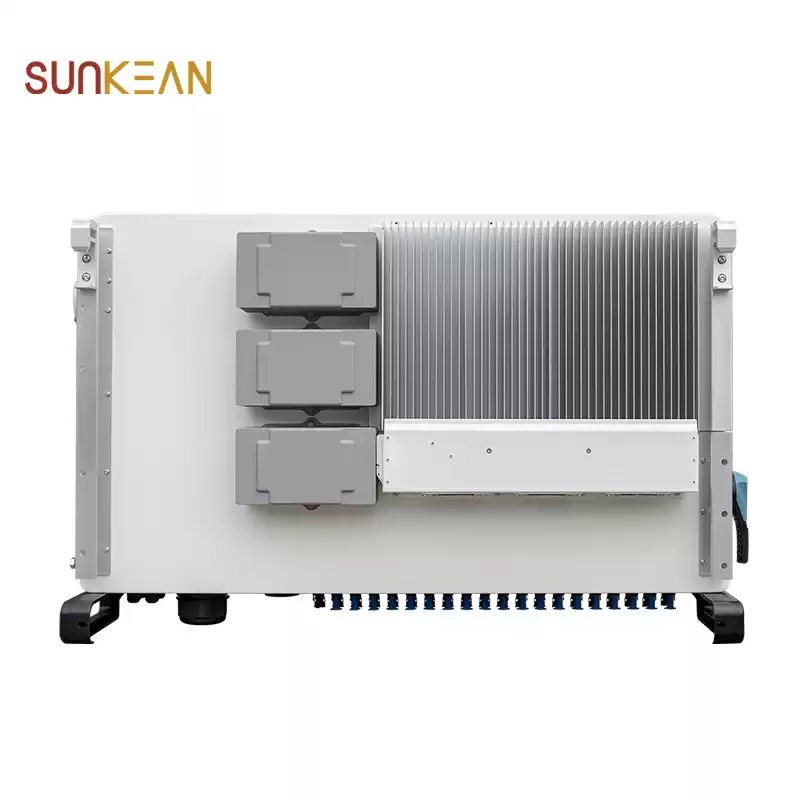

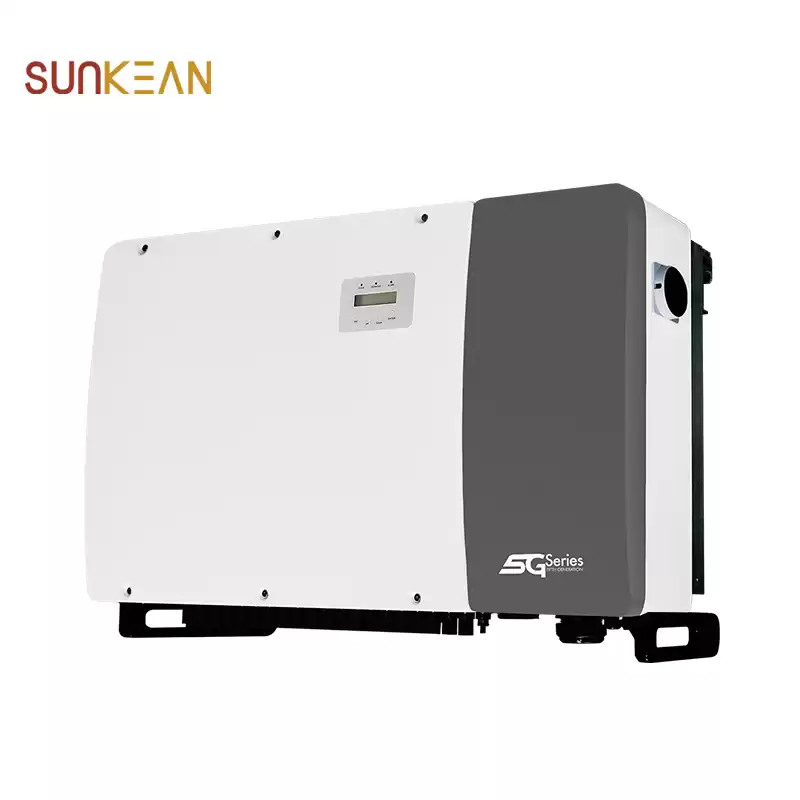

125K-EHV-5G 1500V Three Phase On Grid Solar Inverter

Three phase Inverters convert DC power from the photovoltaic(PV) array into alternating current(AC) power that can satisfy local loads as well as feed the power distribution grid.



125K-EHV-5G 1500V Three Phase On Grid Solar Inverter

125kW 5G three phase series string inverter have Maximum 20 strings input, support 1.5 DC/AC inverter load ratio and higher generation efficiency,Maximum efficiency up to 99.00%.Touch safe DC Fuse holders adds convenience and safety.


Product Information:


Datasheet

Model Name

SKE-125K-EHV-5G

Input DC

Max. input voltage

1500V

Rated voltage

950V

Start-up voltage

900V

MPPT voltage range

860-1450V

Max. input current

150A

Max. short circuit current

300A

MPPT number/Max. Input strings number

1/20

Output AC

Rated output power

125kW

Max. apparent output power

125kVA

Max. output power

125kW

Rated grid voltage

3/PE 600V

Rated grid frequency

50/60HZ

Rated grid output current

120.3A

Max. output current

120.3A

Power Factor

>0.99 (0.8 leading - 0.8 lagging)

THDi

<3%

Efficiency

Max. efficiency

99.1%

EU efficiency

98.6%


Protection

DC reverse-polarity protection

Yes
Short circuit protection
Yes

Output over current protection

Yes

Surge protection

DC Type II / AC Type II

Grid monitoring

Yes

Anti-islanding protection

Yes

Temperature protection

Yes

Strings monitoring

Yes

I/V Curve scanning

Yes

Integrated DC switch

Yes

Integrated AC switch

Yes

General Data

Dimensions (W*H*D)

1178*713.5*315 mm

Weight

84kg

Topology

Transformerless

Self consumption

<3W (without anti-PID)

Operating ambient temperature range

-25~+60°C

Relative humidity

0-100%

Ingress protection

IP65

Cooling concept

Intelligent redundant fan-cooling

Max. operation altitude

4000m

Grid connection standard
G98,G99,EN 50549-1/-2, IEC 61727
Safety/EMC standard
IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-4
Features
DC connection
MC4 connector
AC connection
OT terminal (max. 185 mm2)
Display
LCD
Communication
RS485, Optional: Ethernet,Wi-Fi, GPRS


Product Features:

  • Efficient

------ Max. efficiency 99.1%

------ >150% DC/AC ratio

------ Compatible with bifacial modules

  • Safe

----- Built-in PID recovery for better module performance (optional)

----- Equipped with AC/DC switch, safe and convenient maintenance

----- Globally recognised branded componentry for longer life

  • Smart

----- Strong reactive power compensation

----- Multiple communication modes applicable to various scenarios

-----Remote firmware upgrade with simple operation

  • Economic

----- Max. DC input voltage: 1500V

----- Supports aluminium wire access to reduce cost


Three Phase Solar Inverter production process:

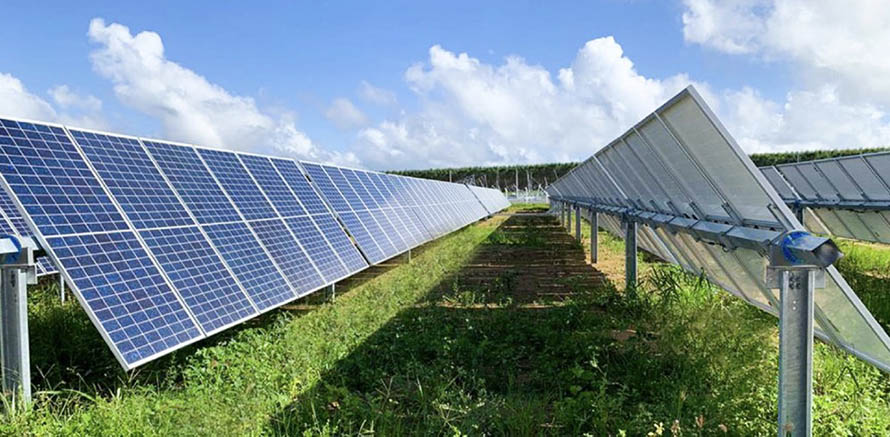

Application Scenario:
