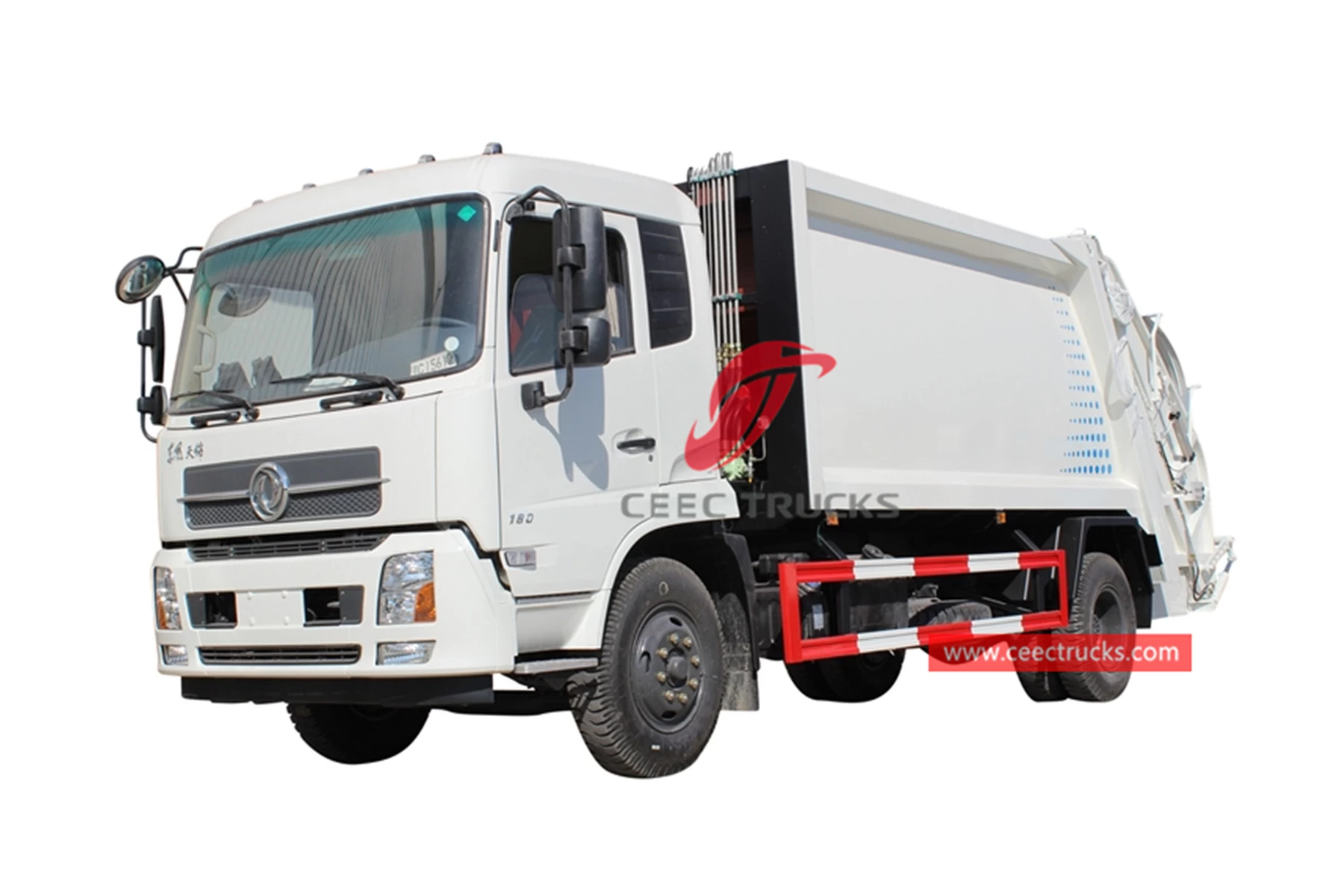

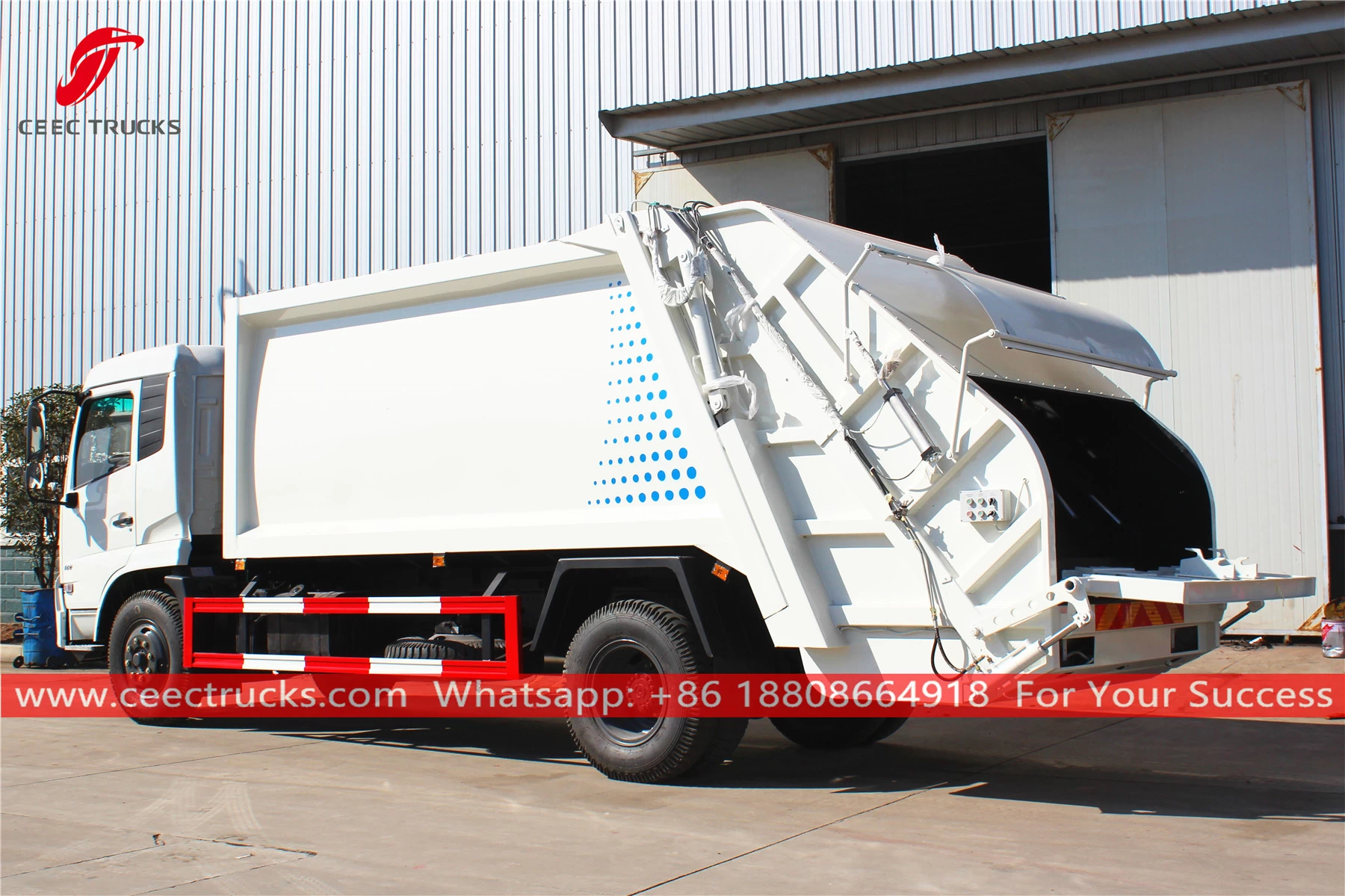

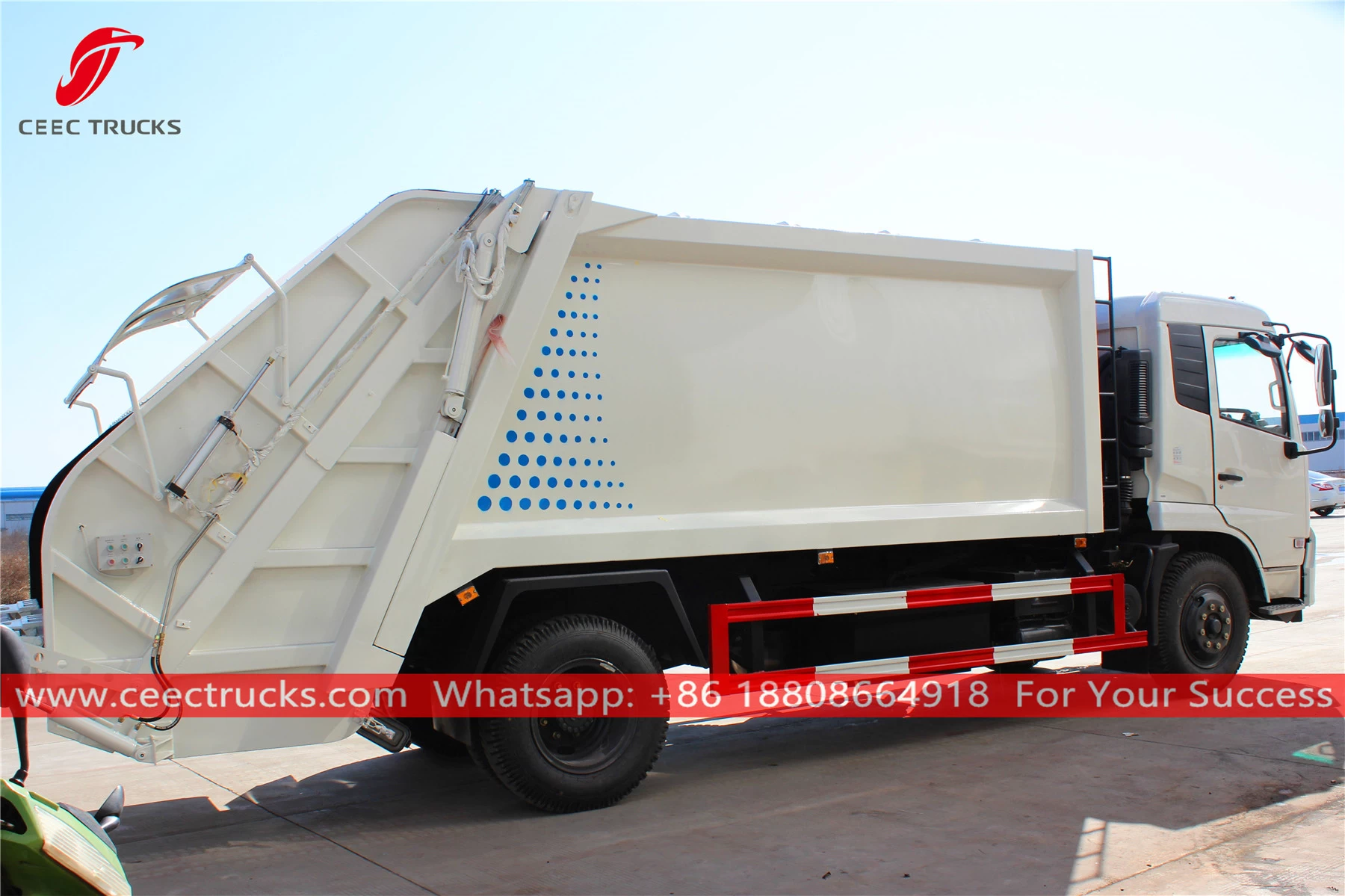

12CBM Compressor Garbage Truck Dongfeng

Dongfeng brand 12cbm garbage compressed truck, the truck chassis use CUMMINS 190HP diesel engine, Manual 6-shift transmission gear. Siemens technology PLC control box for easy operation. All painting and logos based on clients requirement.




 Applications:



12CBM Refuse Compactor Truck Dongfeng (also called Dongfeng Compressed garbage truck, rear loader refuse compactor truck, waste compactor truck Dongfeng, new back loader garbage compression truck, Dongfeng garbage compactor truck, 6-wheel waste collection truck, 12,000 litres trash compression truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- DONGFENG chassis, perfect performance

---- CUMMINS / YUCHAI / CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Dongfeng Garbage Compactor truck (12 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

8200 * 2500 * 3050 mm

GVW / Kerb Weight

16,000kg / 8,450kg

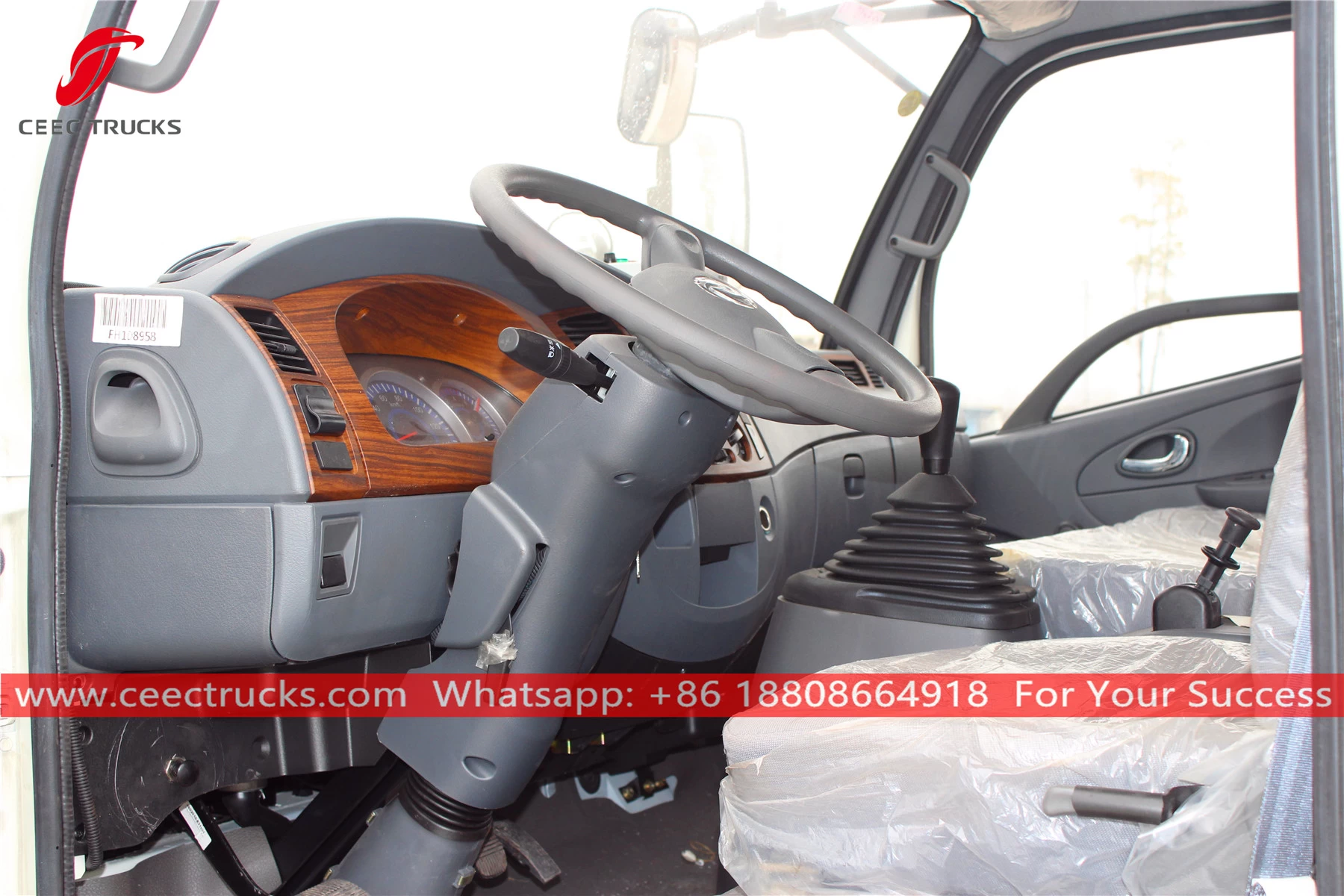

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

190 HP (140 KW)

Displacement

5900 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

4550 mm / 2

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

12 cbm

Fill Hopper capacity

1.3 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
