Open frame 12v 12.5a power supply
Description:
K28L-UP150S12 model is a single output type AC/DC switching power supply built-in active PFC function, operate with high efficiency working, it is widely used to the LED stage lighting products.
Features:
1, 12V DC power supply with universal AC input;
2, Open frame 12VDC 150w power supply built in active PFC;
3, 12V 12.5A power supply with high efficiency;
4, 150W Power Supply with short circuit, overload protection.
|
Item NO.
|
K28L-UP150S12
|
K28L-UP150S24
|
|
Output
|
DC output voltage
|
+12V
|
+24V
|
|
Output rated current
|
12.5A
|
6.25A
|
|
Output current range
|
0-12.5A
|
0-6.25A
|
|
DC output power
|
150W
|
150W
|
|
Ripple & noise
|
150mVp-p
|
300mVp-p
|
|
DC voltage ADJ.
|
±10%
|
|
Output V. Tolerance
|
±1%
|
|
LINE regulation
|
±0.5%
|
|
LOAD regulation
|
±0.5%
|
|
Setup,Rise,Hold up time
|
950ms,40ms,30ms
|
|
Input
|
Input voltage range
|
100-240V AC
|
|
AC current
|
0.8A @ 230V AC
|
|
Input frequency
|
47-63 Hz
|
|
efficiency
|
>84% @ 230V AC
|
|
Power factor
|
>0.99@115V;>0.95@230V
|
|
Inrush current
|
COLD START 14A/115V，28A/230V
|
|
Leakage Current
|
<0.5mA@240V AC
|
|
Protection
|
Overload Protection
|
110~200%,TYPE:HICCUP RESET:AUTO RECOVER
|
|
Environment
|
Working TEMP., humidity
|
-20~40℃，10~90% RH，non-condensing
|
|
Storage TEMP., humidity
|
-20~85℃，10~95% RH
|
|
TEMP. coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC
|
Safety Standards
|
GB4943
|
|
Withstand voltage
|
I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:600VDC
|
|
Isolation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
----
|
|
Other
|
Dimension
|
165*44*38mm
|
|
Weight
|
0.35Kg
|
|
Note
|
1.All parameters are specified at 230vac input, rated load, 2525ºC 70% RH. Ambient
2.Tolerance: Include set up tolerance,line regulation,load regulation.
3.Ripple&noise are measured at 20MHz by using A 12" Twisted pair terminated with A 0.1uF & 47uF capacitor
4.Line regulation is measured from low line to high line at rated load
5.load regulation is measured from 20% TO 100% rated load, and other output at 60% rated load.
6. Add fans auxiliary cooling when using full power
7.Derating 20% when using low voltage
|

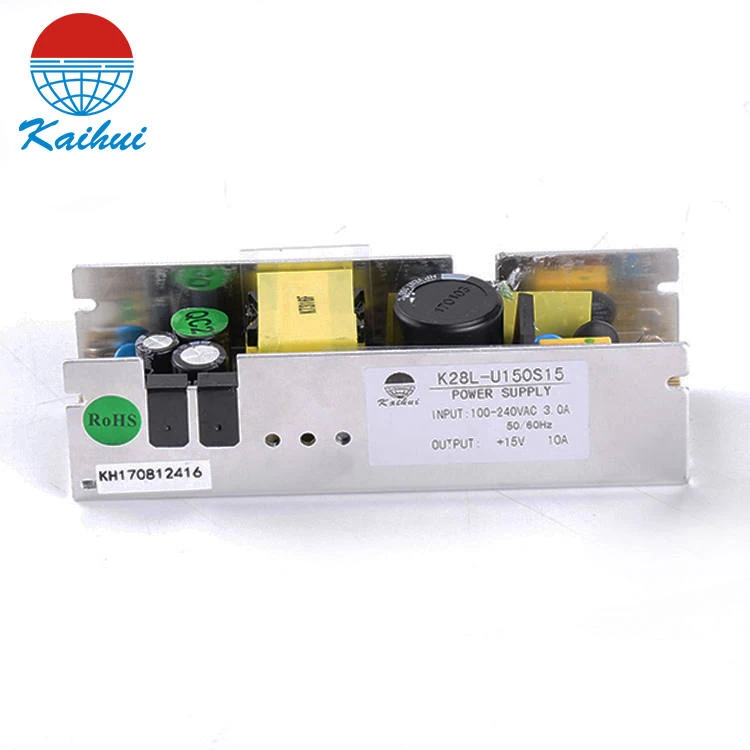

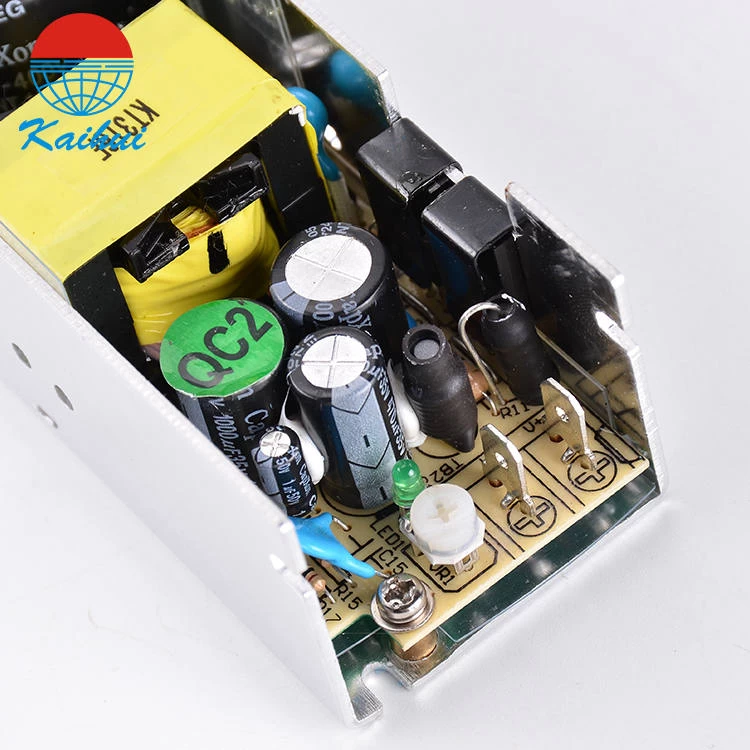

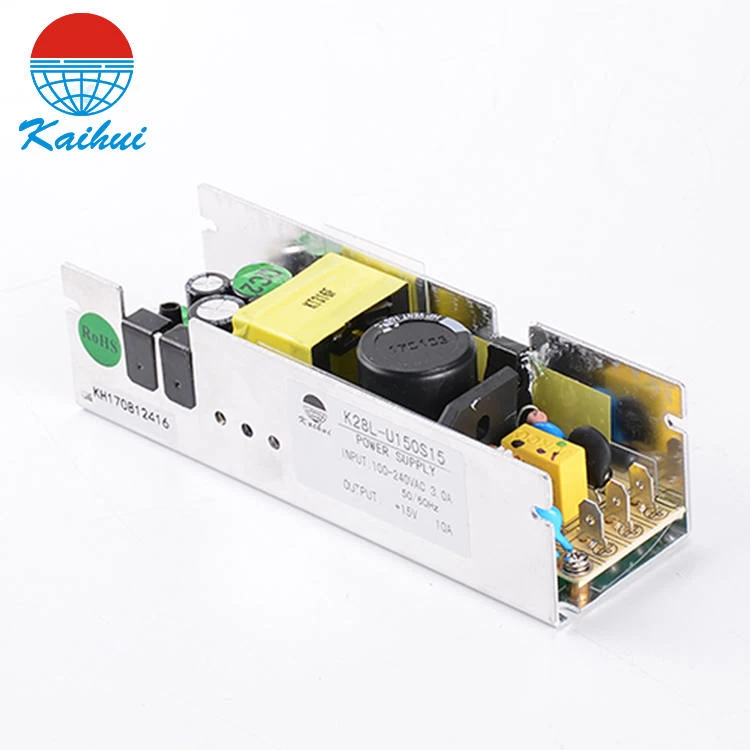

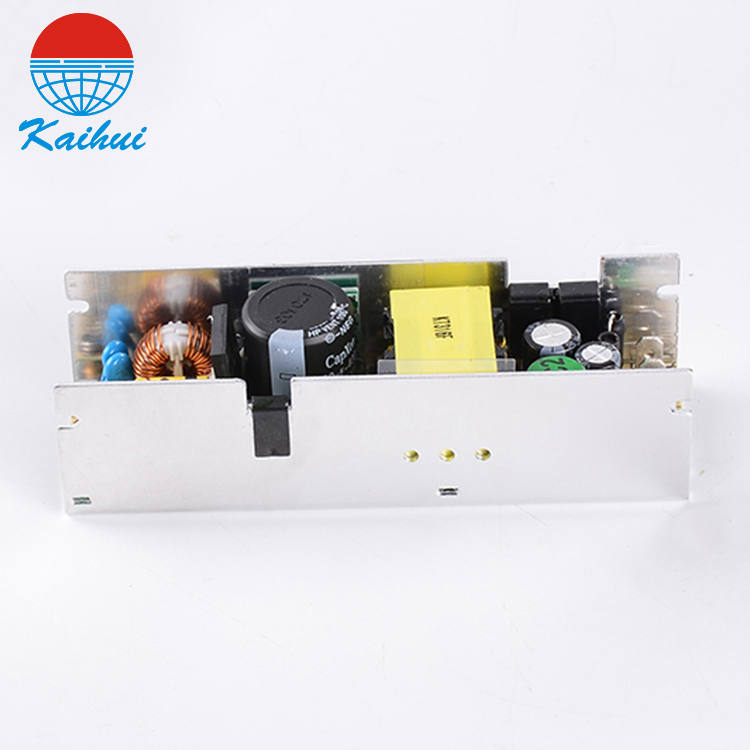

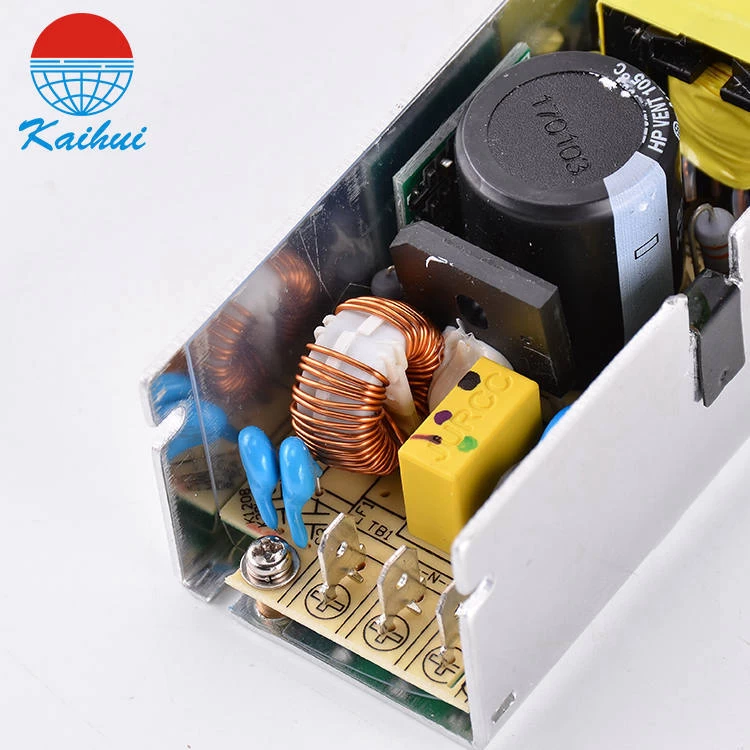

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
