12V 25A 300W SMPS enclosed switching power supply
Description:
K19-UP300S12 model 300W switching power supply has high efficiency and 12v 24v 36v 48v output voltage adjustable with 2 years warranty, widely used in LED stage lighting products.
Features:
1, 300W 12v power supply with wide range AC input voltage;
2, 300W single output power supply 12V built-in PFC function;
3, High efficiency,Low ripple noise;
4, Short circuit, overload, over voltage, overheating protections.
|
Parameter
|
|
Item NO.
|
K19-UP300S12
|
K19-UP300S24
|
K19-UP300S36
|
K19-UP300S48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
25A
|
12.5A
|
8.3A
|
6.3A
|
|
Current Range
|
0-25A
|
0-12.5A
|
0-8.3A
|
0-6.3A
|
|
Rated power
|
300W
|
300W
|
298.8W
|
302.4W
|
|
Ripple
|
200mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable output range
|
10.8~13.2V
|
21.6~26.4V
|
32.4~39.6V
|
43.2~52.8V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage range
|
90-264V AC
|
|
Input current
|
1.5A @ 220V AC
|
|
Input frequency
|
47-63 Hz
|
|
Efficiency
|
>88% @ 220V AC
|
|
Power Factor
|
>0.99@110V;>0.95@220V
|
|
Inrush current
|
Cold start 15A/115V，30A/230V
|
|
Leakage Current
|
<0.35mA@240V AC
|
|
Protection
|
Overload protection
|
110~200%,Hiccup protection, automatic recovery
|
|
Output overvoltage
|
15-18V
|
28-33V
|
42-46V
|
55-60V
|
|
Over temperature
|
Thecover temperature>105 ° C, the output is off, and the recovery is automatic.
|
|
Others
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMCStandards
|
Safety standards
|
GB4943,EN60950-1
|
|
Withstand voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
MEET EN55022 CLASS B，EN61000-3-2
|
|
Others
|
Dimension
|
140*82*50mm
|
|
Weight
|
0.6Kg
|
|
Notes
|
1. All parameters are measured at 230 VAC input, rated load, ambient temperature 25 ° C, humidity 70%
2. Accuracy: including setting error, line regulation, load regulation rate;
3. Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz oscilloscope measured at the load side;
4. Line regulation: the rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: Measured output is measured from 0 load to 100% load change.
|

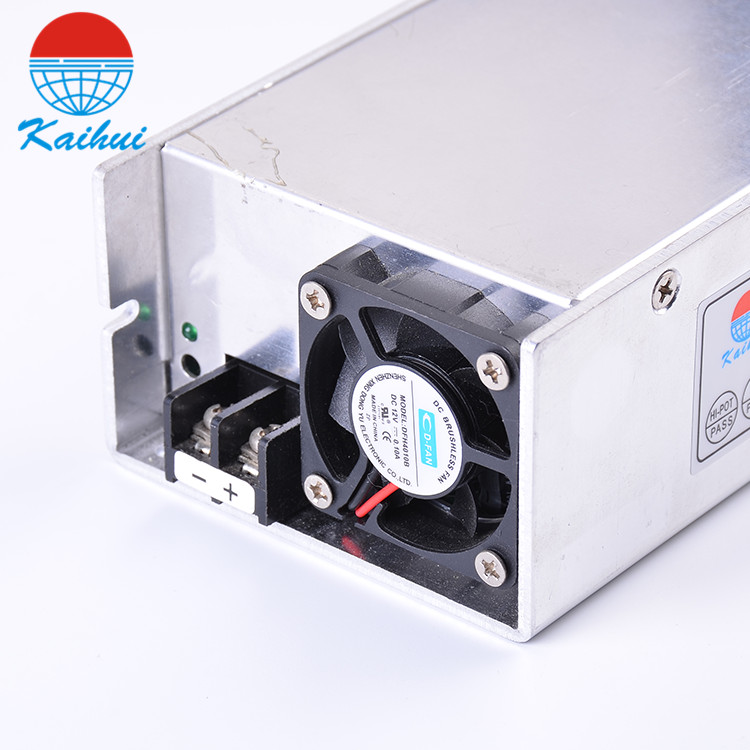

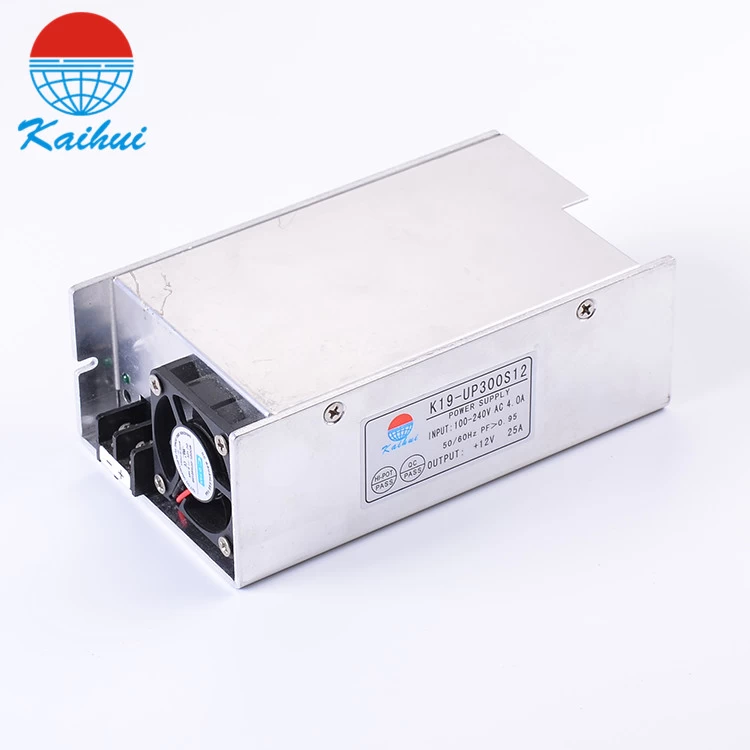

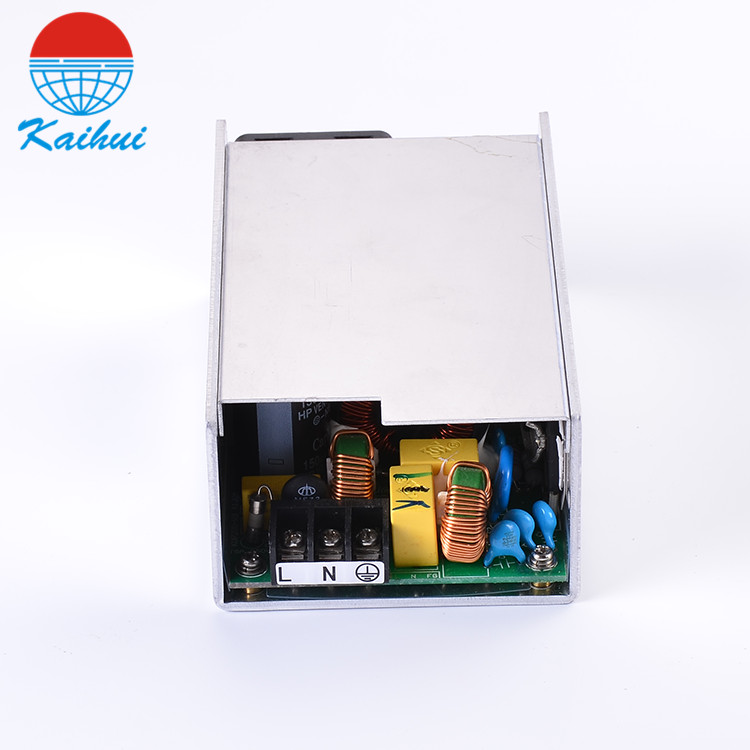

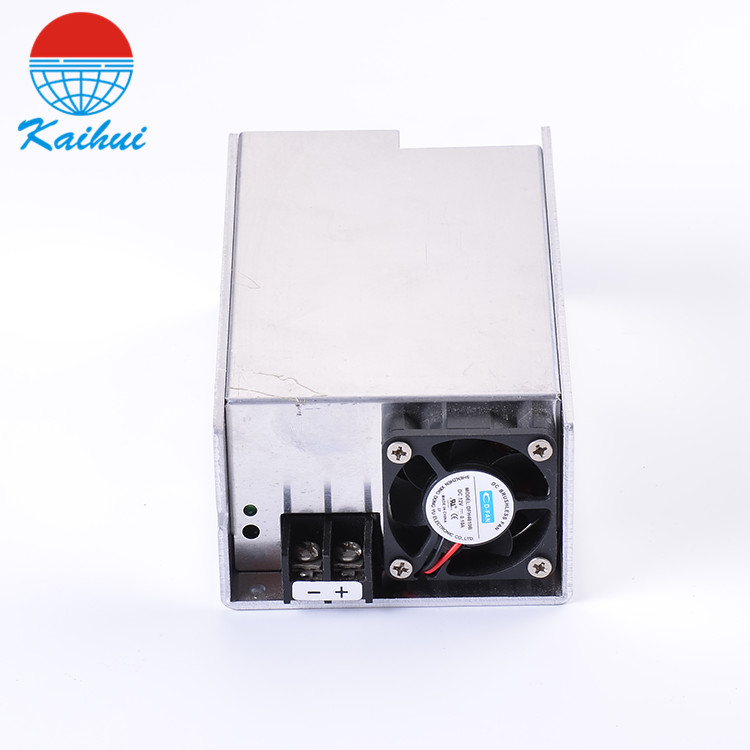

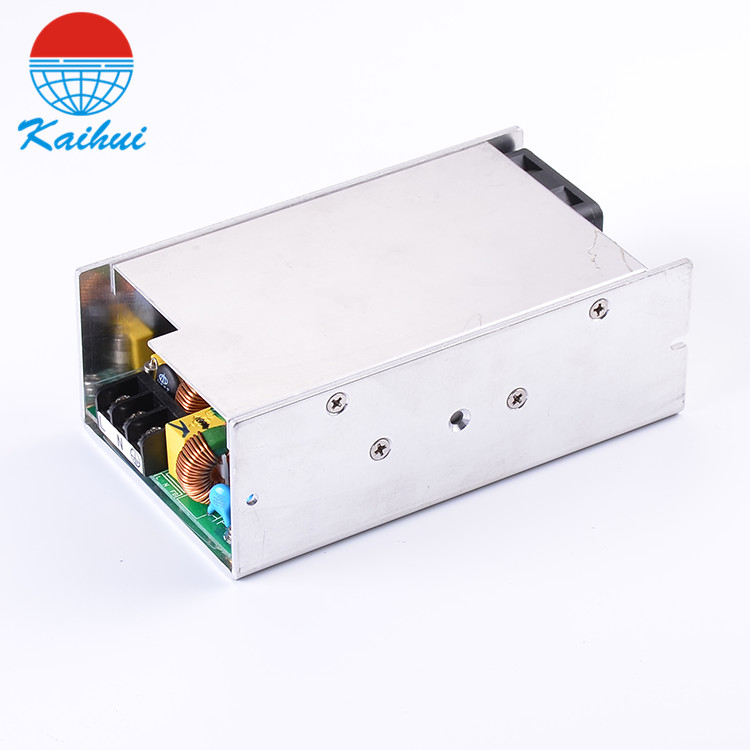

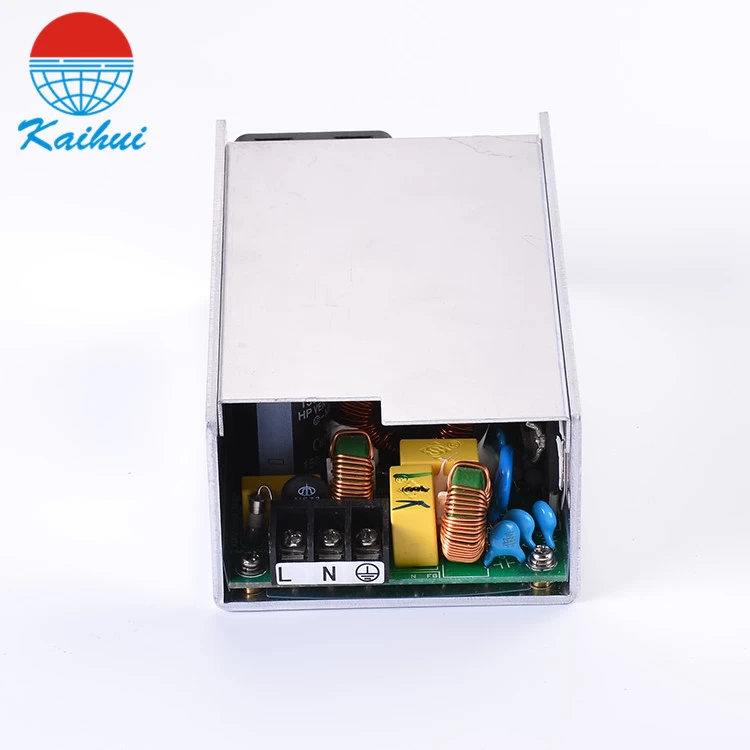

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
