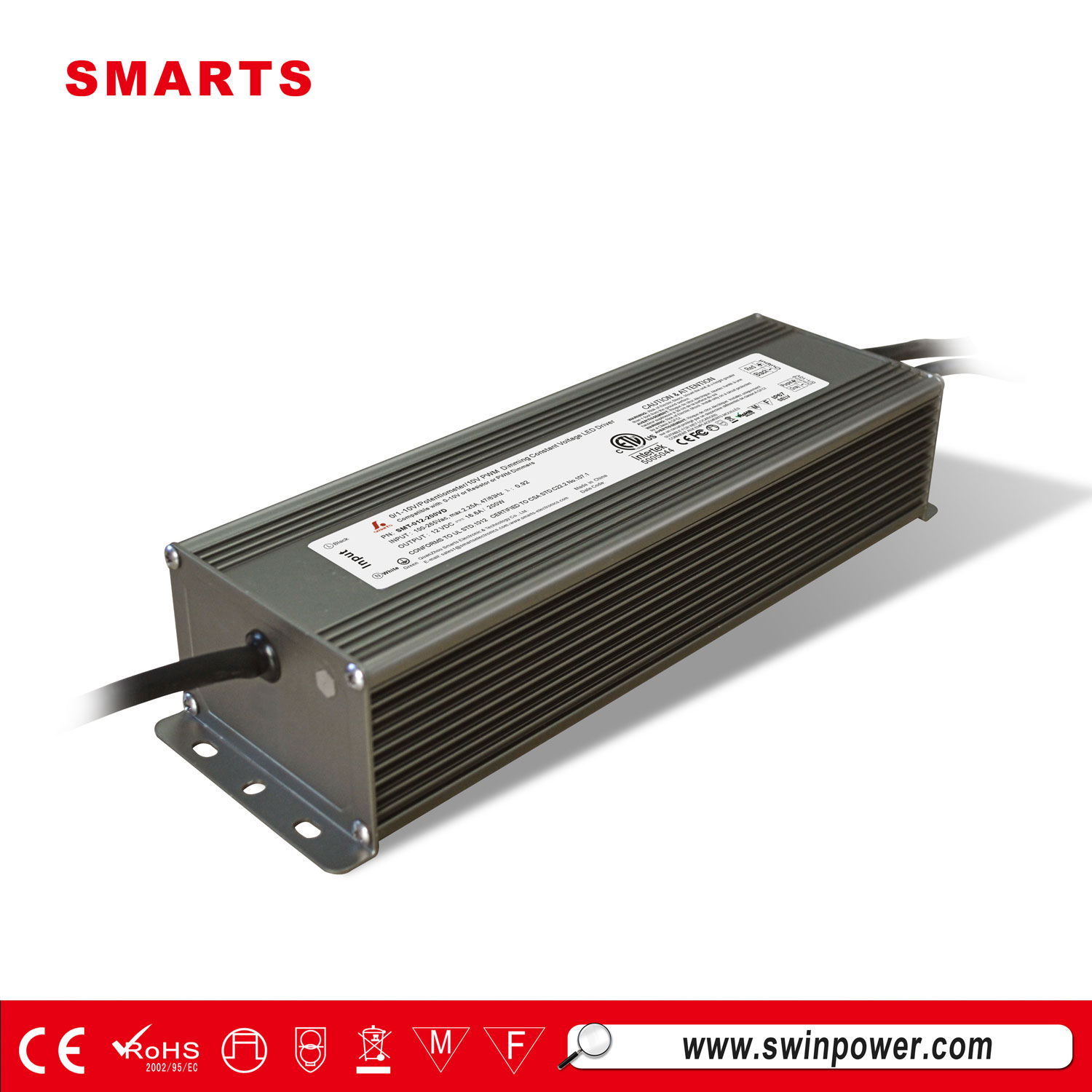

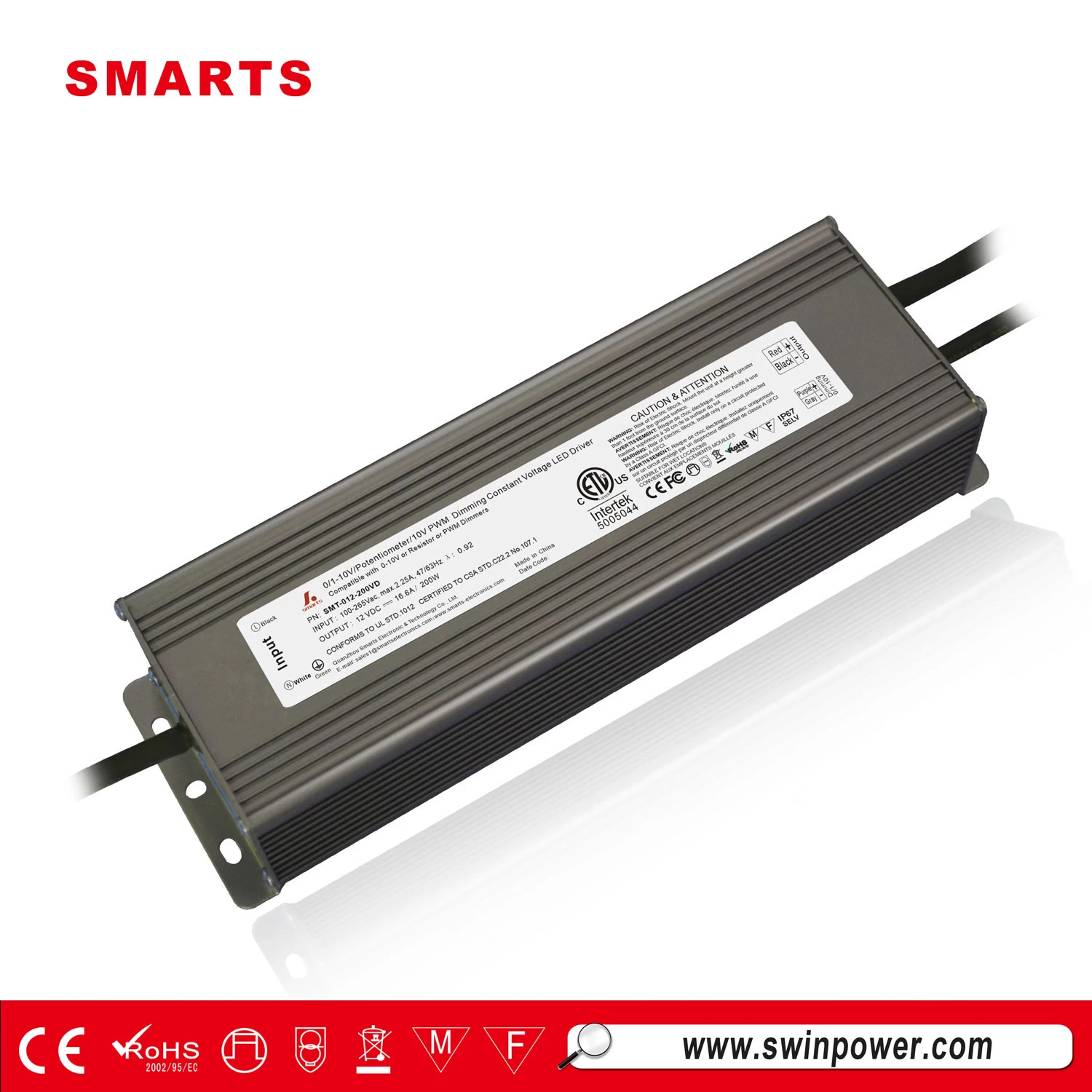

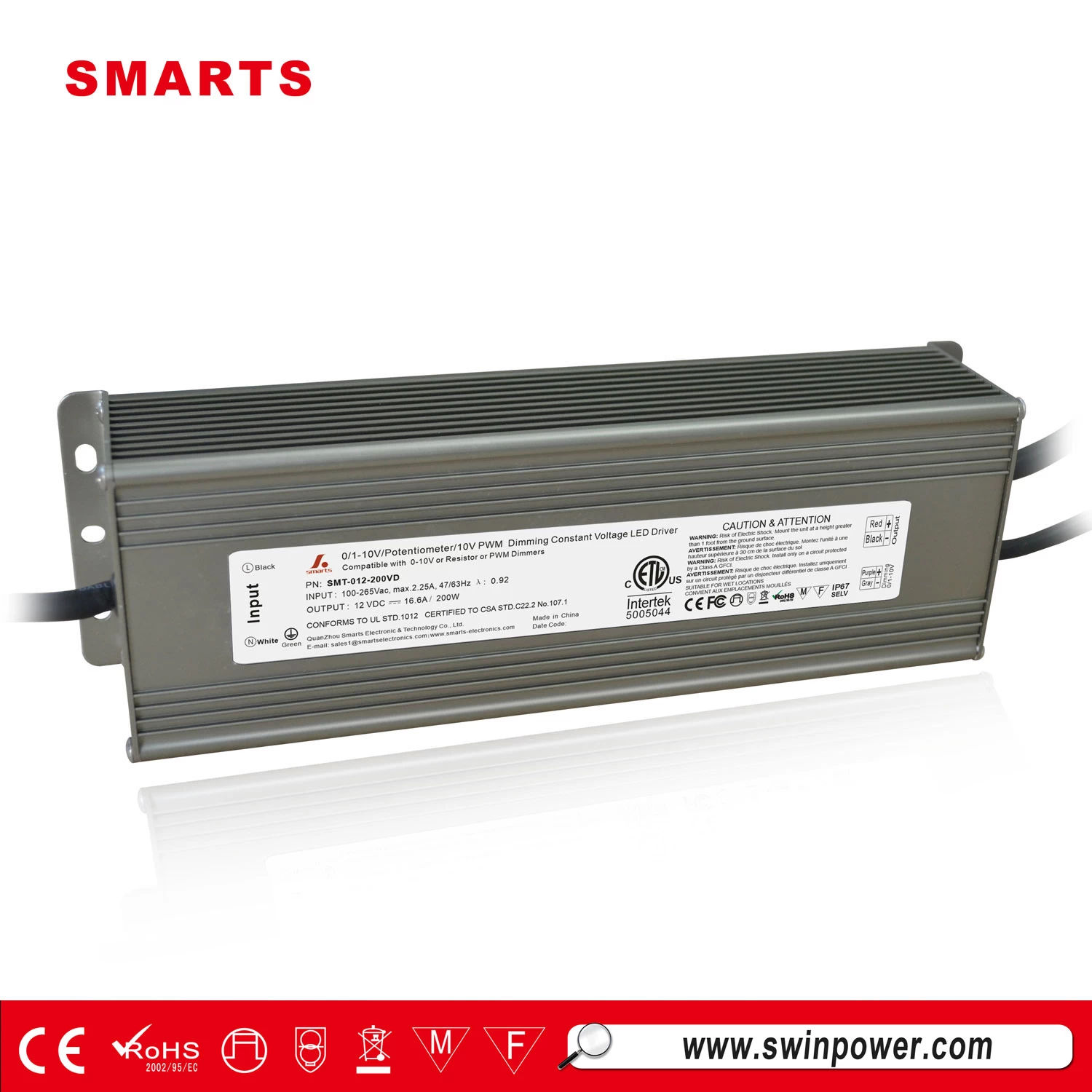

12v 200w 0-10v dimmable led driver with 5 years warranty
SMT-012-200VD is 0-10v Dimmable 200w led power supply, with ETL/CE/ROHS/FCC listed, we can provide you 5 years warranty.
Specification
|
Model
|
SMT-012-200VD
|
SMT-024-200VD
|
|
|
Single Output features
|
Constant voltage
|
12vDC
|
24vDC
|
|
|
output current
|
16.67Amp
|
8.3Amp
|
|
|
output power
|
200watt
|
200watt
|
|
|
Ripple & Noise
|
250mV
|
|
Current Regulation
|
±3%
|
|
Starting time
|
1000mS/230Vac, 3000mS/110Vac
|
|
Input
|
Voltage range
|
100Vac-265Vac
|
|
Frequency range
|
47Hz-63Hz
|
|
Power factor
|
PF>0.93/230Vac,PF>0.92/110Vac
|
|
Efficiency
|
87%/110Vac , 86%/230Vac
|
|
Inrush Current
|
20A/110Vac, 40A/230Vac
|
|
Leakage Current
|
<1mA/120Vac,240Vac
|
|
Protection
|
short circuit
|
|
Single Protection,Hiccup ,recovery after the fault removed.
|
|
Over voltage
|
Protection mode:Limit highest voltage, recovery after the fault removed.
|
|
Over temperature
|
105oC±5 oC ( Internal radiator's temperature)
|
|
over load
|
Protection mode:Closed Output voltage,recovery after temperature automatic recovery.
|
|
Application:
-
Indoor LED illuminating lights
-
LED Neon, LED urban Decoration
-
LED Lighting Advertising,LED Display
-
Safety Protection Apparatus
-
Telecommunications, Networks
-
Vehicle Lights, Controller Panels
Packaging & Shipping
|
0-10v dimmable LED downlight driver 12v 200w waterproof power supply
|
|
Net weight (g)
|
Gross Weight/ctn
|
Qty/ctn
|
Carton size(mm)
|
|
1800 g
|
15 kg
|
10 pcs
|
414*308*174mm
|
Question:
In the diagram spec sheet it show the dimmer on the N (neutral)? Normally Triac the dimmer is on the L Line?
Answer:
Dimmer can be connected on the N (neutral) or on the L (Line). Depending on you.
