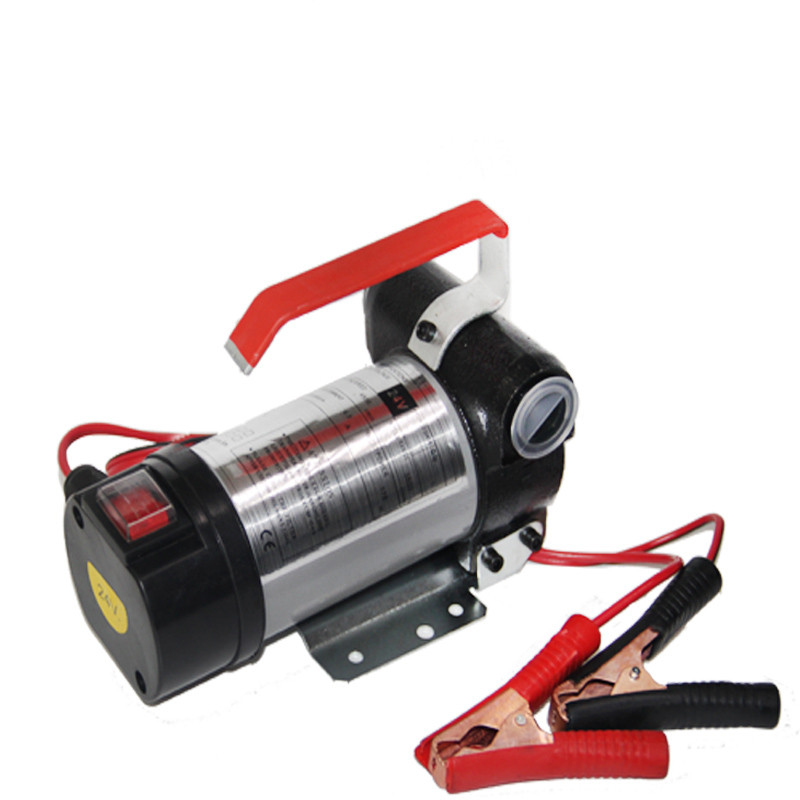

12V 24V DC Electric Diesel Oil Fuel Transfer Pump 40LPM
Products Details:
Power:155W
Flow:0-40LPM
The DC oil pump has been tested and passed through a strict performance test for temperature
resistance and antihock with a high quality protection rating of IP55.
Car batteries may be used to power the pump for fast and convenient fuel pumping.
This pump is designed for all kinds of machinery, tractor and farm equipment.
Specification:
It is an ideal portable pump for diesel and kerosene etc.
Our oil pump is through the strict aseismatic anti-scar performance tests.
IP standard is IP55, with inner by-pass valve,with excellent quality. It works
With various battery and has the feature of self-priming function.
Pump is only working with diesel oil and oil with similar specs. It's strictly
Prohibited for gasoline and low flash point mediums.
Pump casing and impeller is made of cast iron.
Note: Not suitable for low-ignition fuel (such as gasoline, liquefied petroleum gas, alcohol, etc.) transmission.
Whaleflo Diesel Oil Transfer Pump Troubleshotting
|
Trouble
|
Reasons
|
Treatments
|
|
No initial oil output
|
1.Polarity reversed(+/-)
|
1.Correctly attach polarity to power source+/-
|
|
2.Leak in suction line
|
2.Ensure the suction hose is securely fastened and there are no leaks
|
|
3.Pump not primed
|
3.Prime the pump by adding oil to near the pump inlet
|
|
Little oil flow
|
1.Low voltage supply
|
1.Increase the supply voltage to proper levels
|
|
2.Excessive suction height or head
|
2.Reduce suction height or head
|
|
3.Obstruction in the filter strainer
|
3.Clear foreign objects, clean filter strainer
|
|
4.Vanes worn or gear broken
|
4.Replace the vanes or gear
|
