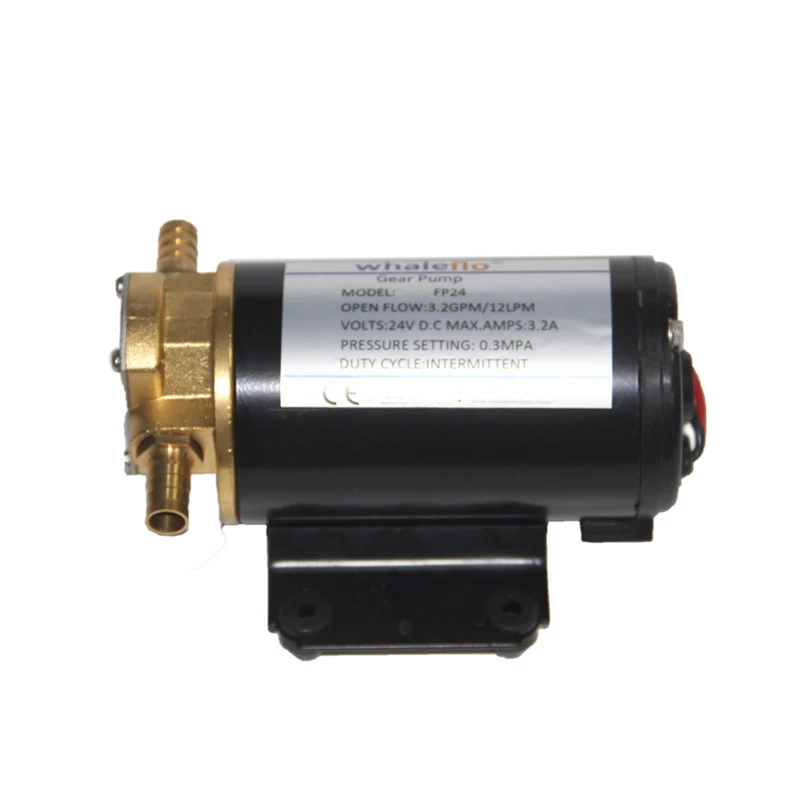

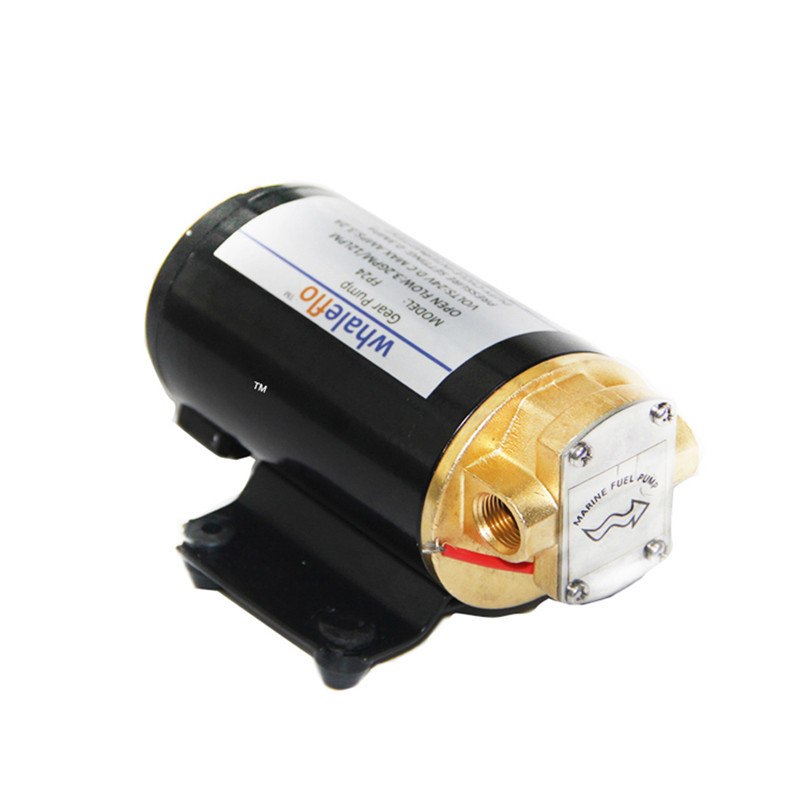

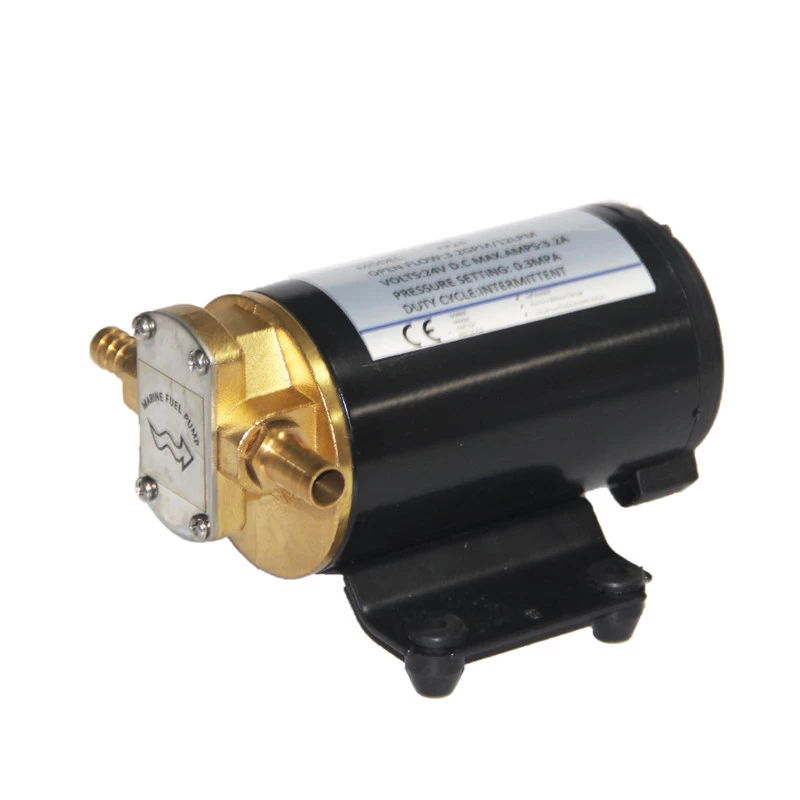

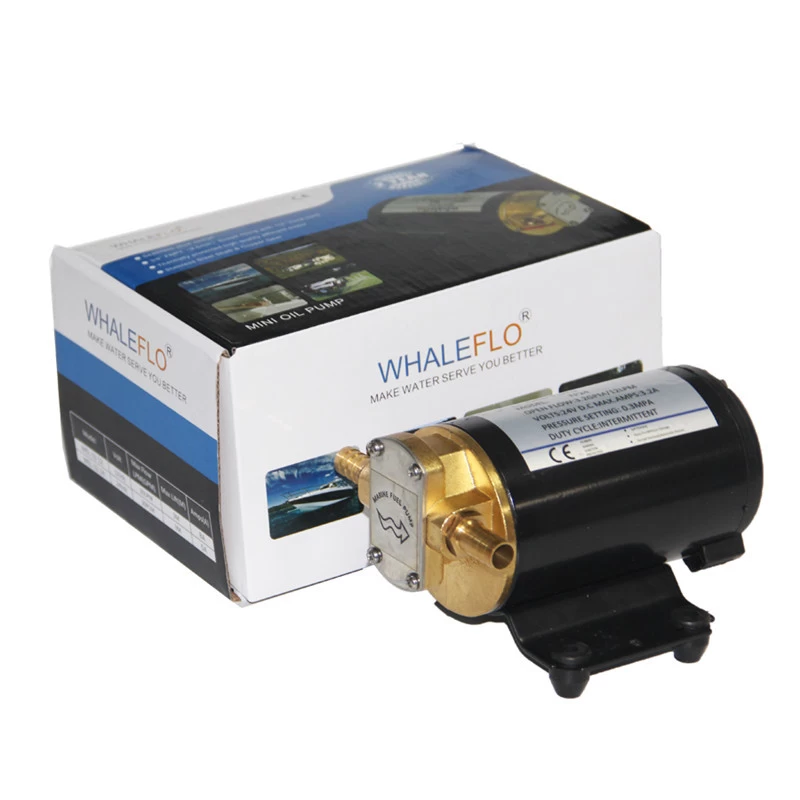

Whaleflo DC 12V 24V Gear Oil Pump

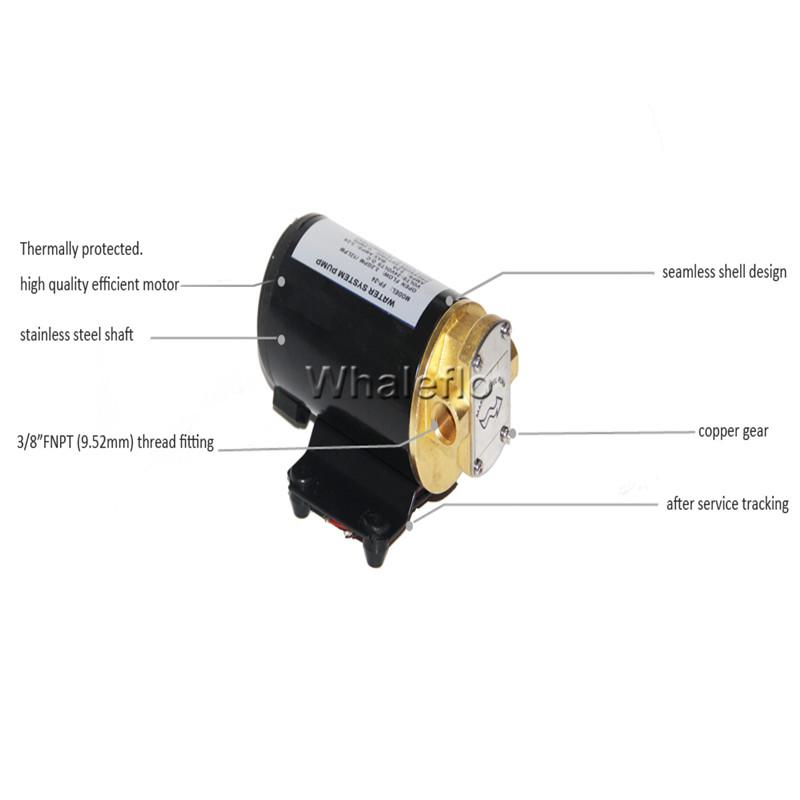

Features include:
-
Pump body:copper
-
Seal:rubber
-
Gear:brass
-
Motor:steel&copper
Whaleflo Gear Pump application
The Whaleflo gear pump is an ideal product for oil transfer. The pump is able to
transfer oil with viscosity between 5x10^(-6) and 1.5x10^(-3)m2/s(5-1500 cSt), and
the temperature below 60℃. The pump can not pump corrosive oil and any oil withgrain.
The connection to the engine should be controlled by a 3/8" ball valve to guard against accidental oil leakage.
-
Disel
-
Lubricant,
-
Viscous Liquids
-
Water
|
Item No.
|
Volt
|
Amps(a)
|
Max Aamps
|
Max Lift(m)
|
Packing Size(mm)
|
N.W/G.W
|
|
FP-12
|
12V
|
6.0A
|
10.0A
|
1.0
|
215*135*110
|
2.5/2.6
|
|
FP-24
|
24V
|
4.0A
|
6.0A
|
1.0
|
215*135*110
|
2.5/2.6
|
