12v 30w ac to dc led power supply

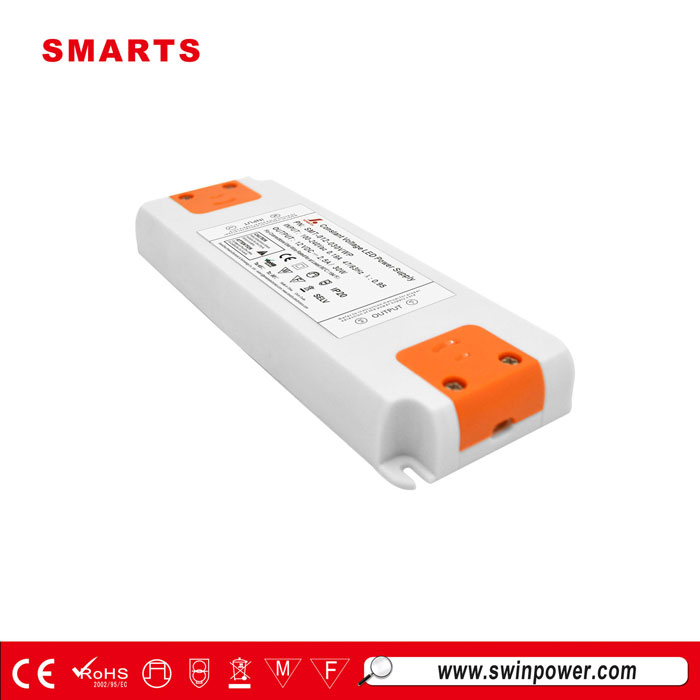

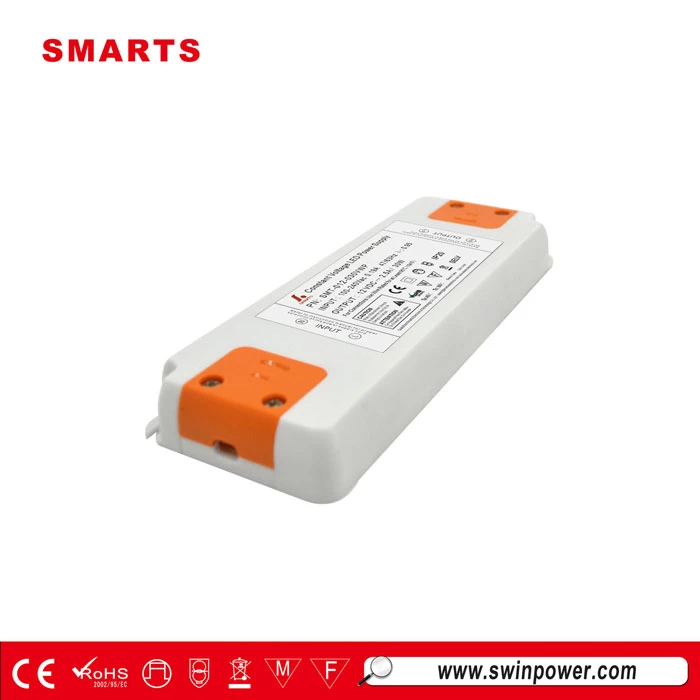

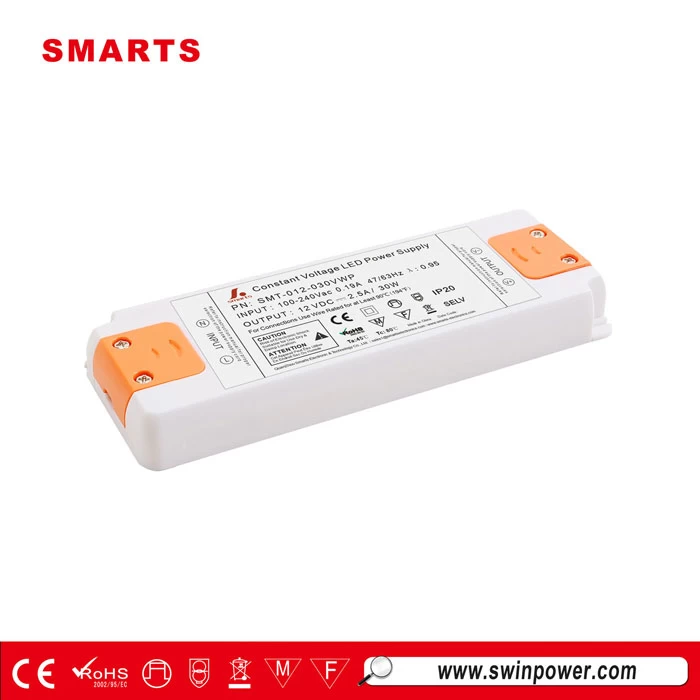

Smarts SMT-012-030VWP 160×57.6×18.4 small size, 85g light weight, plastic case non-isolate led power supply. ac to dc led power supply for your LED lighting project is easy to calculate.
Feture
|
Label for 30w led driver
|
● IP20 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE Certification
● 2 years warranty
|
|
Specification
|
MODEL
|
SMT-012-030VWP
|
SMT-024-030VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.5Amp
|
1.25Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
30Watt
|
30Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>84%
|
|
AC CURRENT(Typ.)
|
0.31A/110VAC, 0.17A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
Question
Do all of these units have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge?
Answer
Yes, all of those units have the protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge.

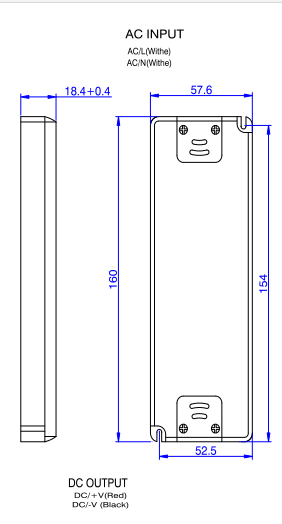

Mechanical Specification
