12V 30W class 2 led strip lights power supply led driver

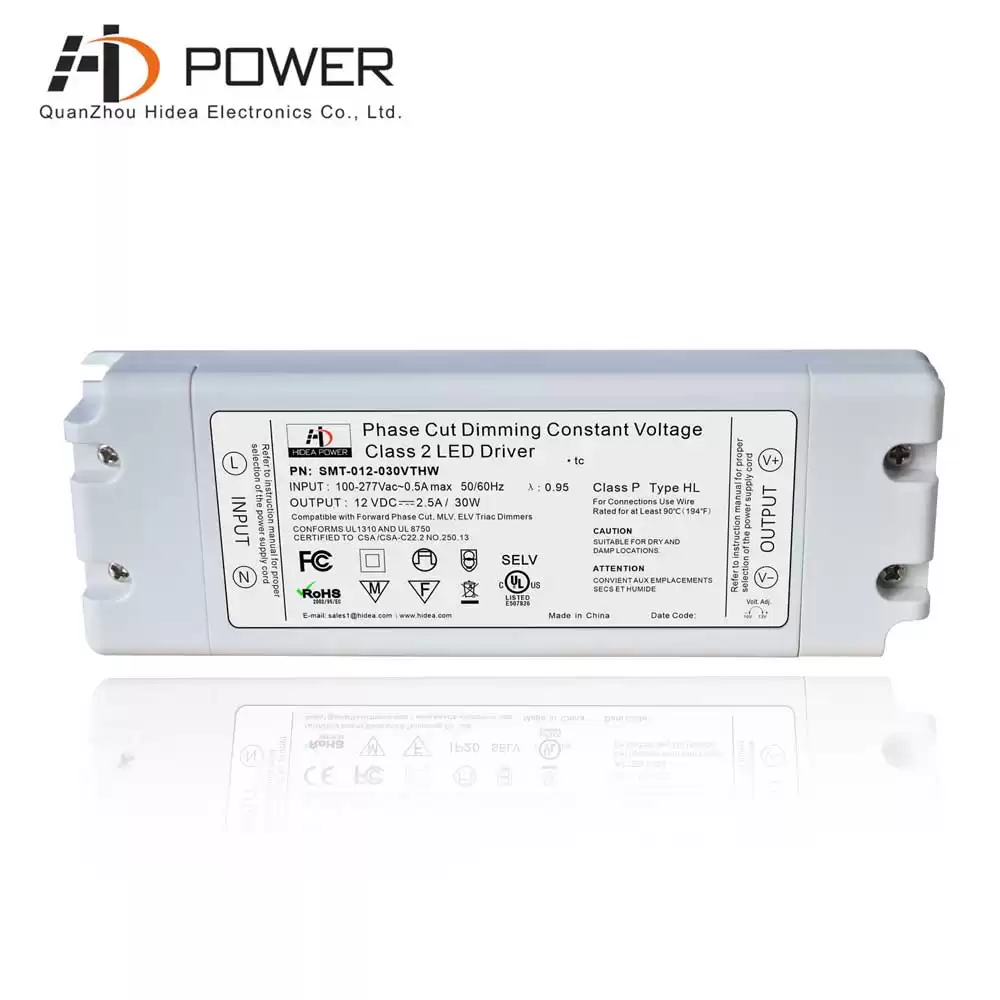

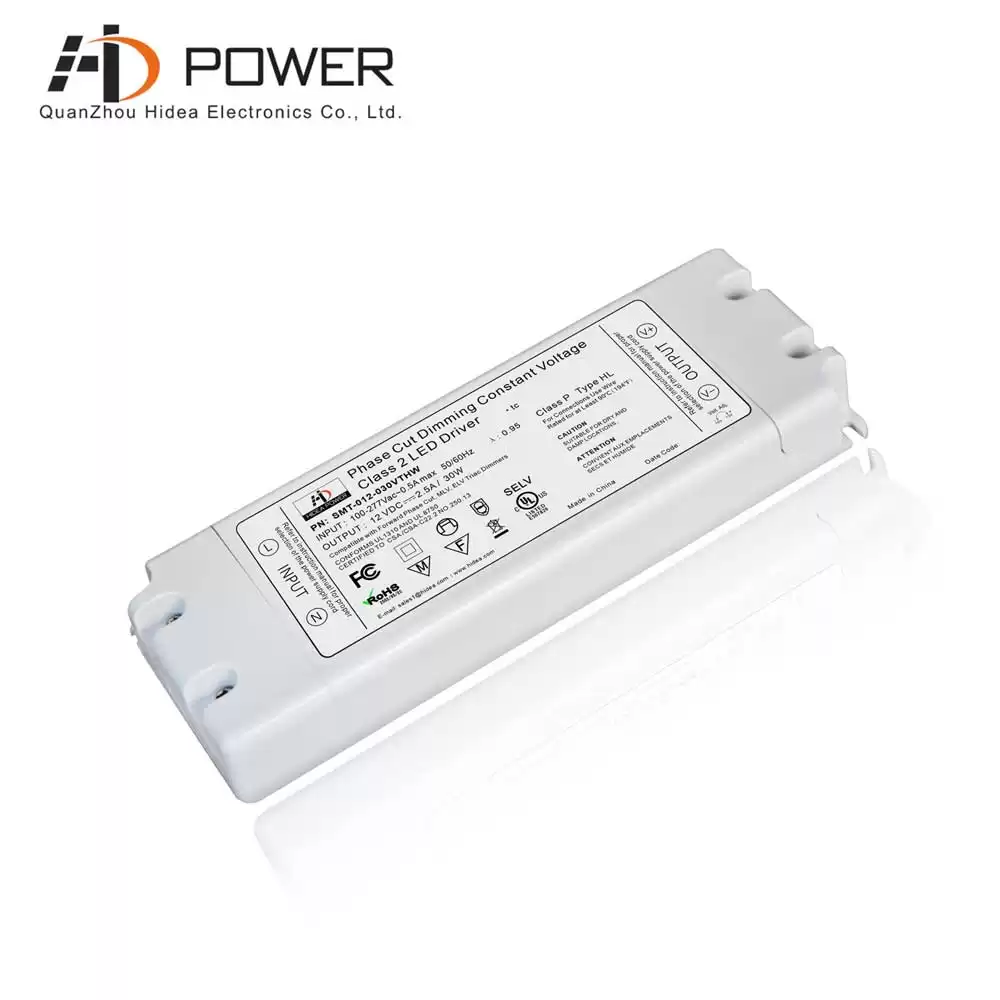

Model SMT-012-030VTHW is a 30w dimmable led power supply 30w, plastic case IP20, UL cUL FCC listed, indoor use, Compatitve with OTTAWA LED single color LED tape light.
Specification
|
model
|
SMT-012-030VTHW
|
SMT-024-030VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Adj. Voltage Range
|
10-13V
|
21.5-25.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2.50A
|
1.250A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
30W
|
30W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.97@277VAC
|
|
Full Load Efficiency(Typ.)
|
79%
|
79%
|
|
AC Current(Typ.)
|
0.5A/110VAC
|
|
Inrush Current (Typ.)
|
7.0A, 50%, 425us
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.21Kg
|
|
Size
|
155*54*20mm (L*W*H)
|
|
packing
|
40PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
Class 2 power supply is constant voltage type in 12vdc or 24vdc, IP67 or IP20 rated using in LED application, able to work with STEP 1 DEZIGNS LED signle Color Module lights in 12v /24v.
Related Products
|

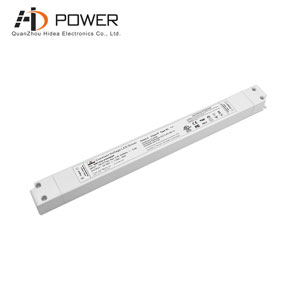

 Triac dimmable led drivers 12v 30w with UL listed, 7 years warranty, slim design for special projects.
