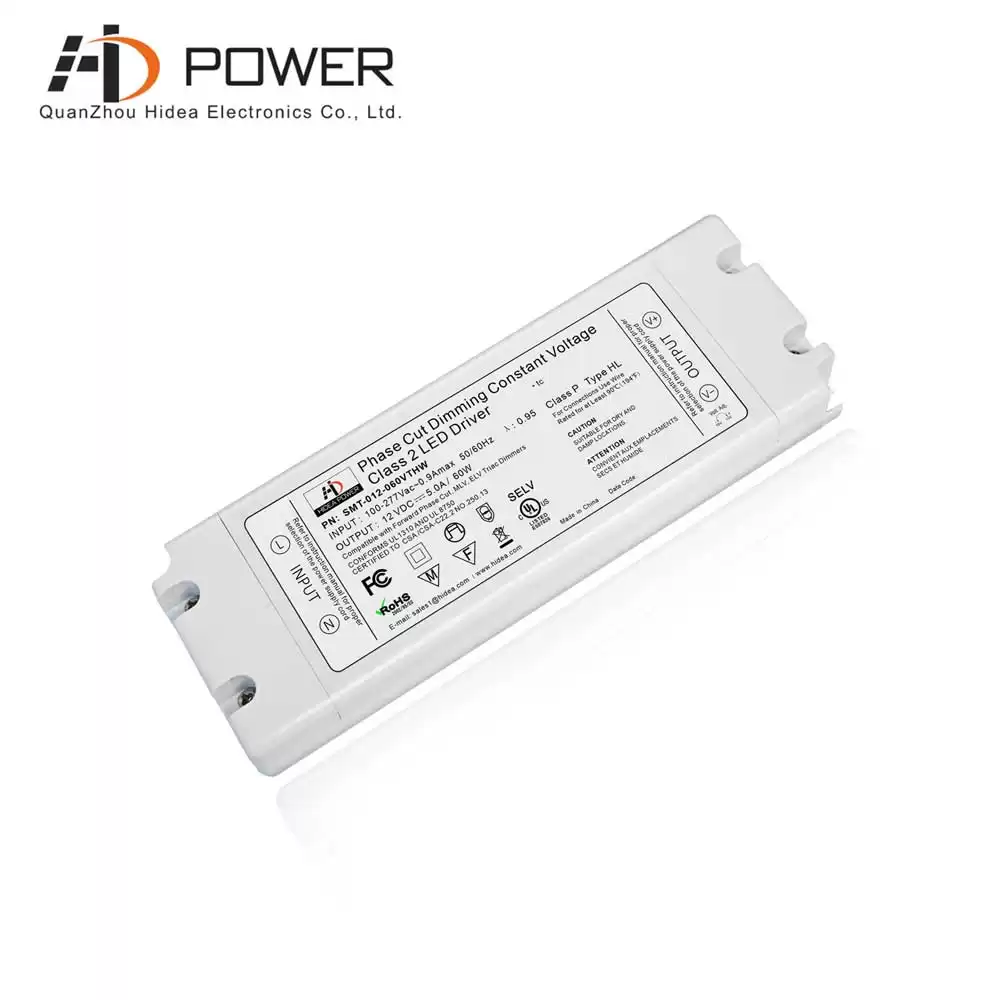

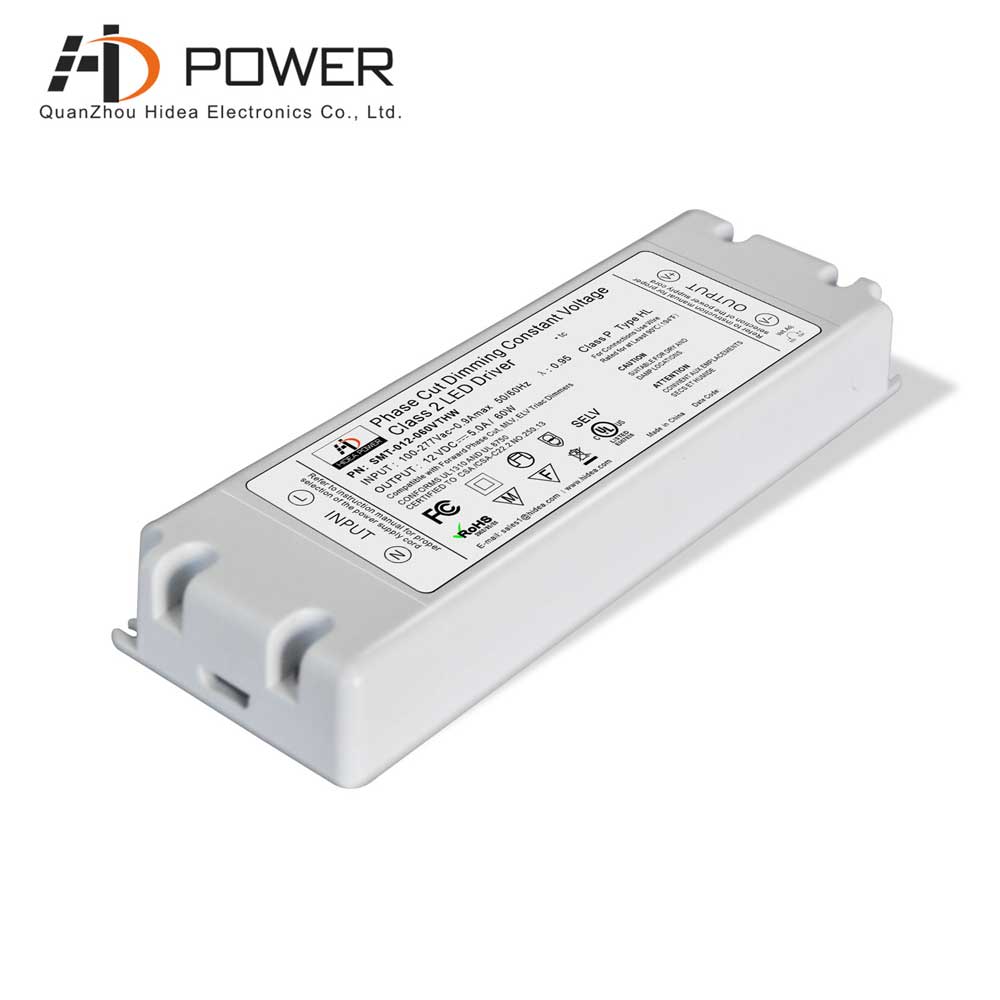

HIDEA led driver 12Vdc 60w triac dimmable led driver 60w for led stripe lights
HIDEA manufacture the 12v 60w triac dimmable led driver. It got UL FCC CE ROHS approval and has 7 years warranty. It has passed high, low temperature and waterproof testing. It works well with MERKURY's dimmable smart led stripes.
Specification
|
Model
|
SMT-012-060VTHW
|
SMT-024-060VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Adj. Voltage Range
|
10-13V
|
21.5-25.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1% ±0.5V
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>83%
|
|
AC Current(Typ.)
|
0.9A/110VAC
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 0.35Kg
|
|
Size
|
178*61*24mm(L*W*H)
|
|
packing
|
20PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|

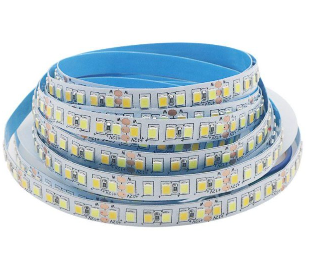

Compatible Stripe Light Type
This 60 watt triac dimmable led drivers is 100-277vac mainly for using in North American market. It is suitable for indoor use with JUNWEN warm white led stripe lights.
Related Products
|

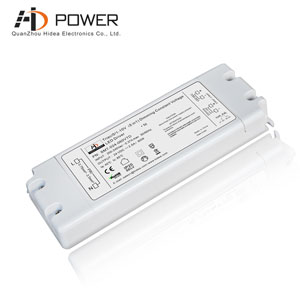

 12v led drivers 60w triac & 0-10v led driver is constant voltage 5 in 1 dimming for indoor use
Mode：SMT-012-060VTD
Dimming Mode : Triac/0-10V(5 in 1) Dimming
Output Power : 60W
intput voltage：100~277V AC
Size：178*61*24MM （L*W*H）
|
