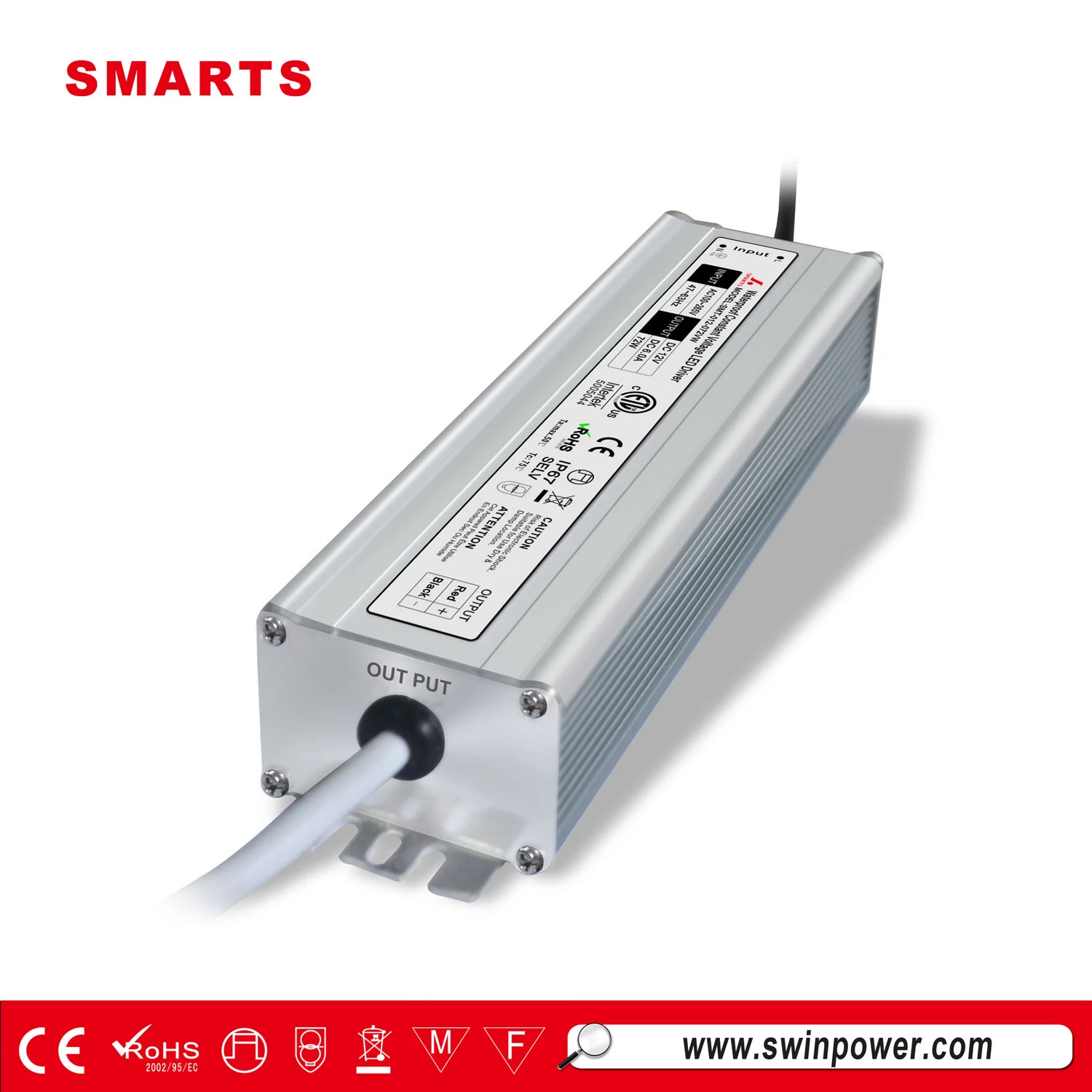

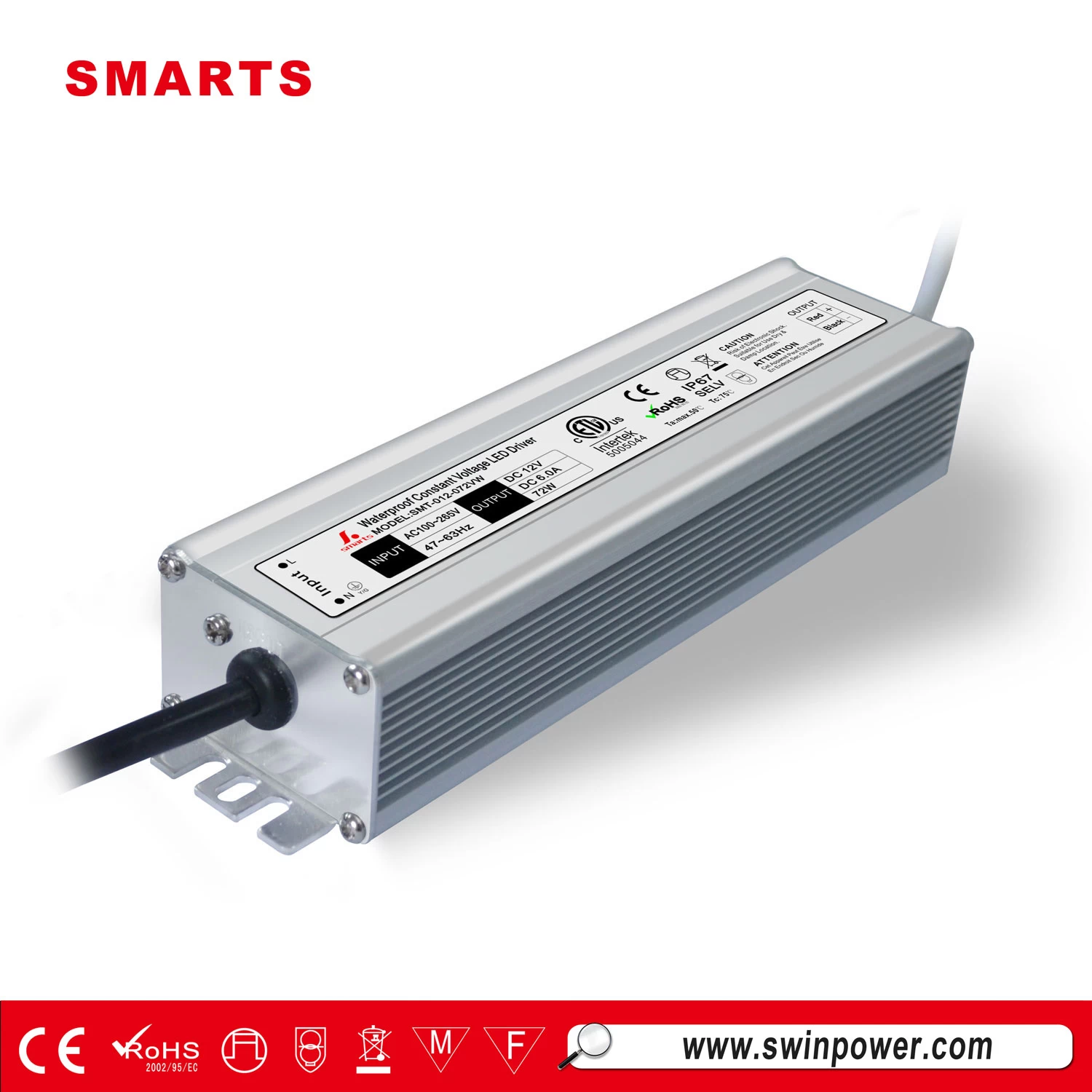

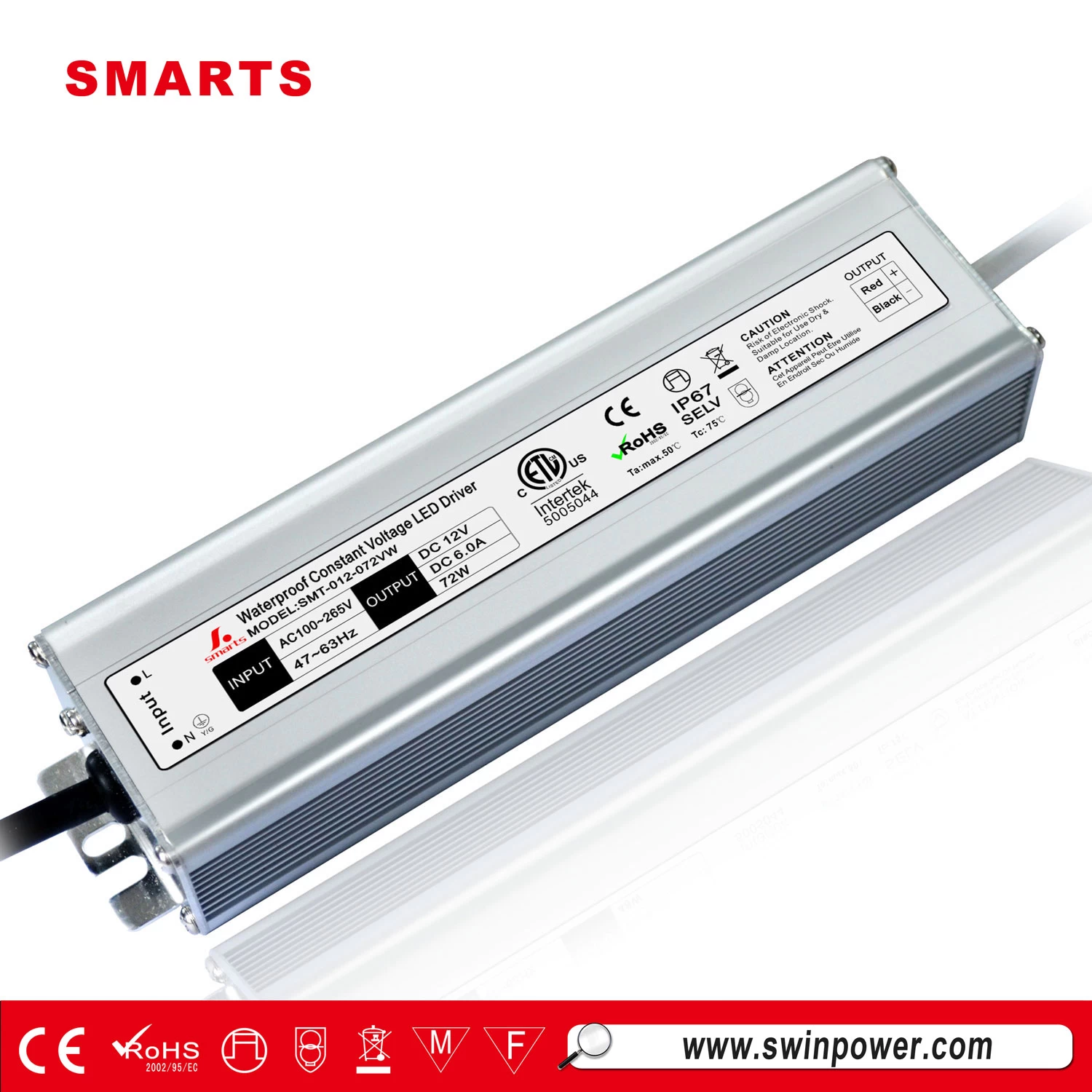

12v 72w ip67 waterproof led power supply 12v 6a for USA and Canada
SMT-012-072VW power supply 12v 6a with ETL file#: 500504 to meet with Canada and USA lighitng. Protections:Short circuit/Overload/Over temperature
Features
IP67 design for indoor or outdoor installations
Cooling by free air convection
100% full load burn-in test
Products through cETL,ETL,CE,RoHS Certification
2 years warranty
Environment
1.Working Temperature : -25 ~ +50°C
2.Working Humidity : 20 ~ 90% RH non-condensing
3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety :
1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2.Withstand Voltage : I/P-O/P: 3000KVAC
3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC
What is constant voltage led driver?
AConstantVoltageLED Driver 12V& 24v can be used to power LED lights that have constant current drivers already within the system or resistors . 'Constant voltage' refers to the ability to fluctuate output current to maintain a set voltage. So you need some type of constant voltage power supply that can convert your AC household voltage down to a safe DC voltage
