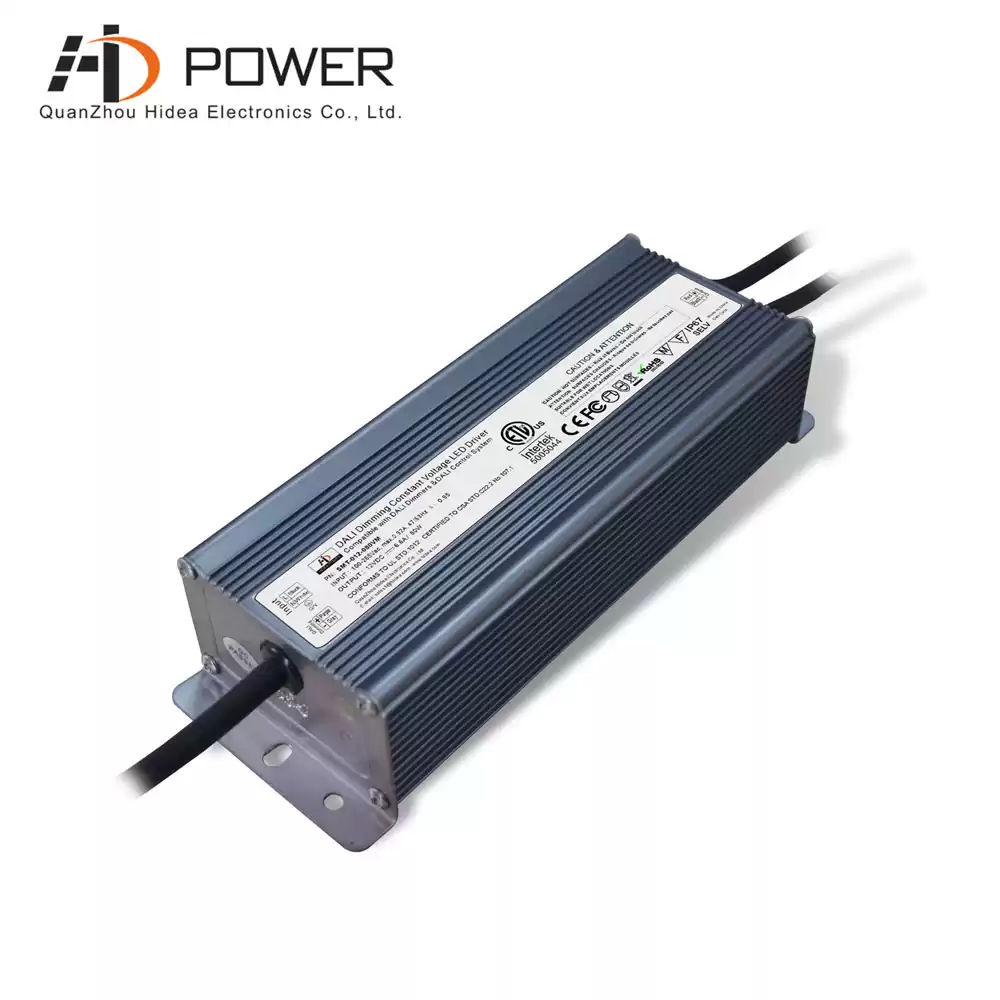

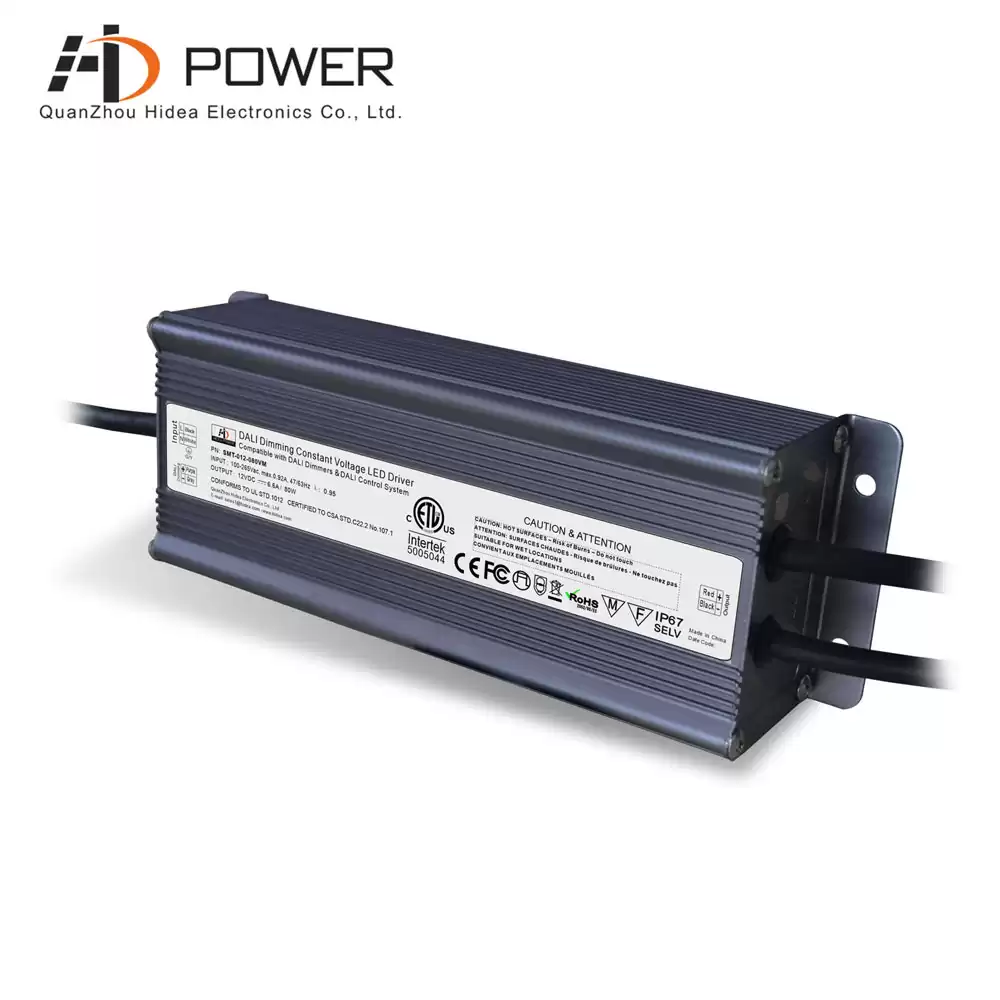

12v 80w dali dimmable led driver for outdoor use

Our dali dimmable led driver is 100-265vac, can be ordered in 12VDC or 24VDC outputs. the max wattage of the series is 200w, the 80w dali dimmable led driver could work well with Volka Lighting led strip SD2835.


  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)80W
  • Input Voltage100-265Vac
  • Size200*68*46mm
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeDALI Dimming
  • Weight1100g
  • CertificationETL
  • Warranty5 Years

The 80 watt led driver with dali dimming are rated to run at 80% load continuous. With load function, it can effectively protect Volka Lighting led strip Non-Waterproof.

  Specification

Model SMT-012-080VM SMT-024080VM
Output DC Voltage 12V 24V
Voltage Tolerance   ±3%
Rated current 0~6.6A 0~3.3A
Rated power 80W 80W
Input Voltage Range  100-130VAC/170-265VAC
Frequency Range 47~63HZ
Power Factor(Typ.) PF≧0.90/110V / PF≧0.90/220V
Full Load Efficiency(Typ.) >88% >88%
AC Current(Typ.)           0.92A/110VAC
Leakage current ﹤0.5mA/110V , ﹤0.7mA/220VAC
Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition  is removed
Over Load ≦120%
Over Circuit ≦1.4*I out
Over temperature 100℃±10℃ shut down o/p voltage, re-power on to recover
Environment Working TEMP. -40~+60℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13 IP67
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
Others Weight 1.1Kg
Size 200*68*46mm(L*W*H)
packing 329*279*176mm/10pcs/CTN
Notes 1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
2.Tolerance:includes set us tolerance, line regulation and load regulation .
3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final   equipment manufactures must be-qualify EMC Directive on the complete installation again

  Compatible Light Type

120w 12v DALI dimmable led driver all parameters NOT specially mentioned are measured at 110V, 220VAC input, it can compared with Volka Lighting led strip width 9.6, and to installed indoors and outdoors project.

80 watt led driver

  Related Products

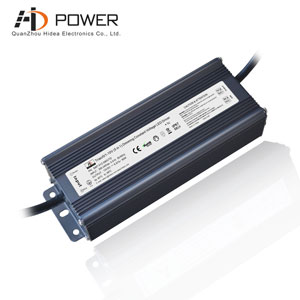

80 watt led driver277vac 12v 80w triac/0-10v 5 in 1 dimmable led driver, non-flicking, to meet AJ8&T24 standard...
