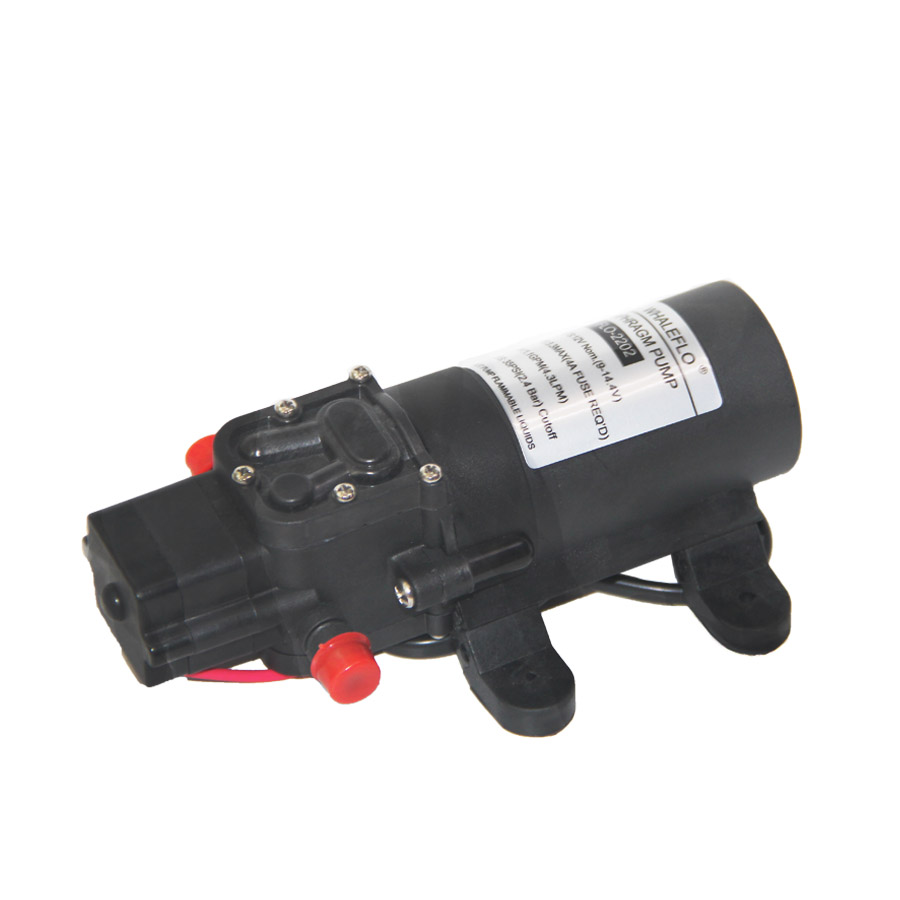

12V DC 4.3LPM Marine fresh water pump
12v marine pump Description：
Whaleflo FLo22 series is ideal water dispensing for agriculture sprayer, marine RV,Lawn and outdoor. The Pump designed basing on two diaphragm. Each of them has self-priming with head about 1 Meter.
Pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from 4-11PH value.
Pump pressure switch serves from 35PSi to 80PSI,and outlet port size is 3/8” (10mm)hose barb,female thread with 1/4’’BSPT(6mm) and male thread can match different requirement.
Pump duty working: working intermittent. Pump working power: battery, Sunshine energy via Solar panel.
12V Marine Pump performance
Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
12V Marine pump application
Agriculture, electric sprayer system,Atv system, beverage water dispenser,industrial field,Marine, RV,Lawn,caravan, yatch, Outdoor shower, vehichle -mounted sprayer, Misting system.
TYPICAL APPLICATIONS:
Agriculture, electric sprayer system,Atv system, beverage water dispenser,industrial field,Marine, RV,Lawn,caravan, yatch, Outdoor shower, vehichle -mounted sprayer, Misting system.
|
Model
|
Volt(V)
|
Open Flow(LPM/GPM)
|
Demend Pressure(PSI/Bar)
|
Amps Draw(A)
|
Check value
|
Diaphragm
|
Ports
|
Wire connections
|
|
FLO2201
|
12
|
2(0.52)
|
55(3.79)
|
1.8
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2202
|
12
|
3.8(1.0)
|
35(2.41)
|
3
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2202-1
|
12
|
4.3(1.13)
|
35(2.41)
|
3.5
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2203
|
12
|
2.6(0.68)
|
70(4.83)
|
2.1
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2203-1
|
12
|
3.1(0.82)
|
70(4.83)
|
2.2
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2202A
|
12
|
4(1.05)
|
80(5.52)
|
2.6
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2401
|
24
|
2(0.53)
|
55(3.79)
|
0.9
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2402
|
24
|
3.8(1.0)
|
35(2.41)
|
1.5
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2403
|
24
|
2.6(0.68)
|
70(4.83)
|
1
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
|
FLO2402A
|
24
|
4(1.05)
|
80(5.5.2)
|
1.3
|
EPDM/VITON
|
Santoprene
|
3/8" barb
|
2-pin /Leads
|
Dimension/PC
|
18.5*11*6.5cm
|
Net Weight/pc
|
0.64KG
|
Gross Weight/pc
|
0.72kG
|
Carton Dimension(50pcs)
|
56.5*38.5*36.5cm
|
