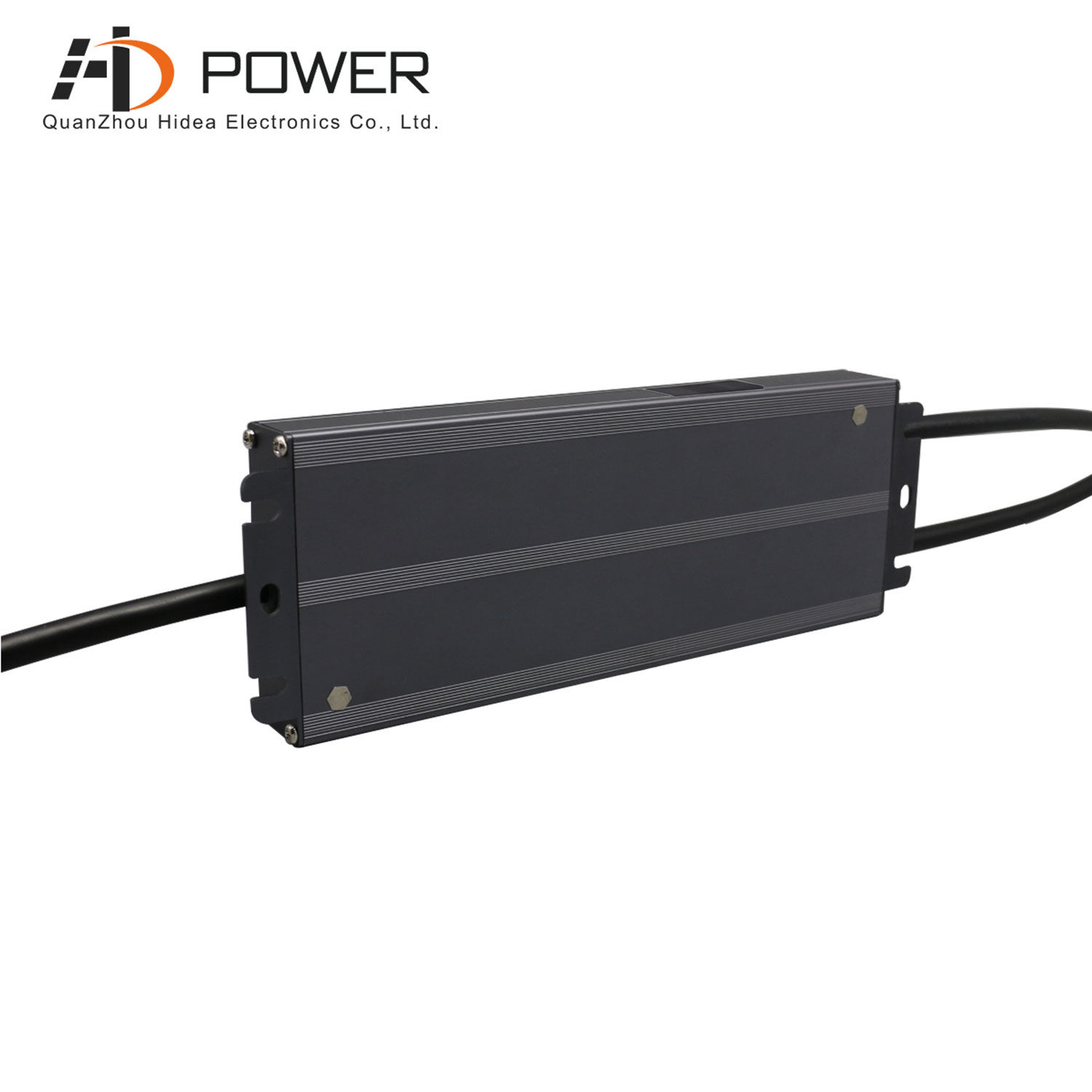

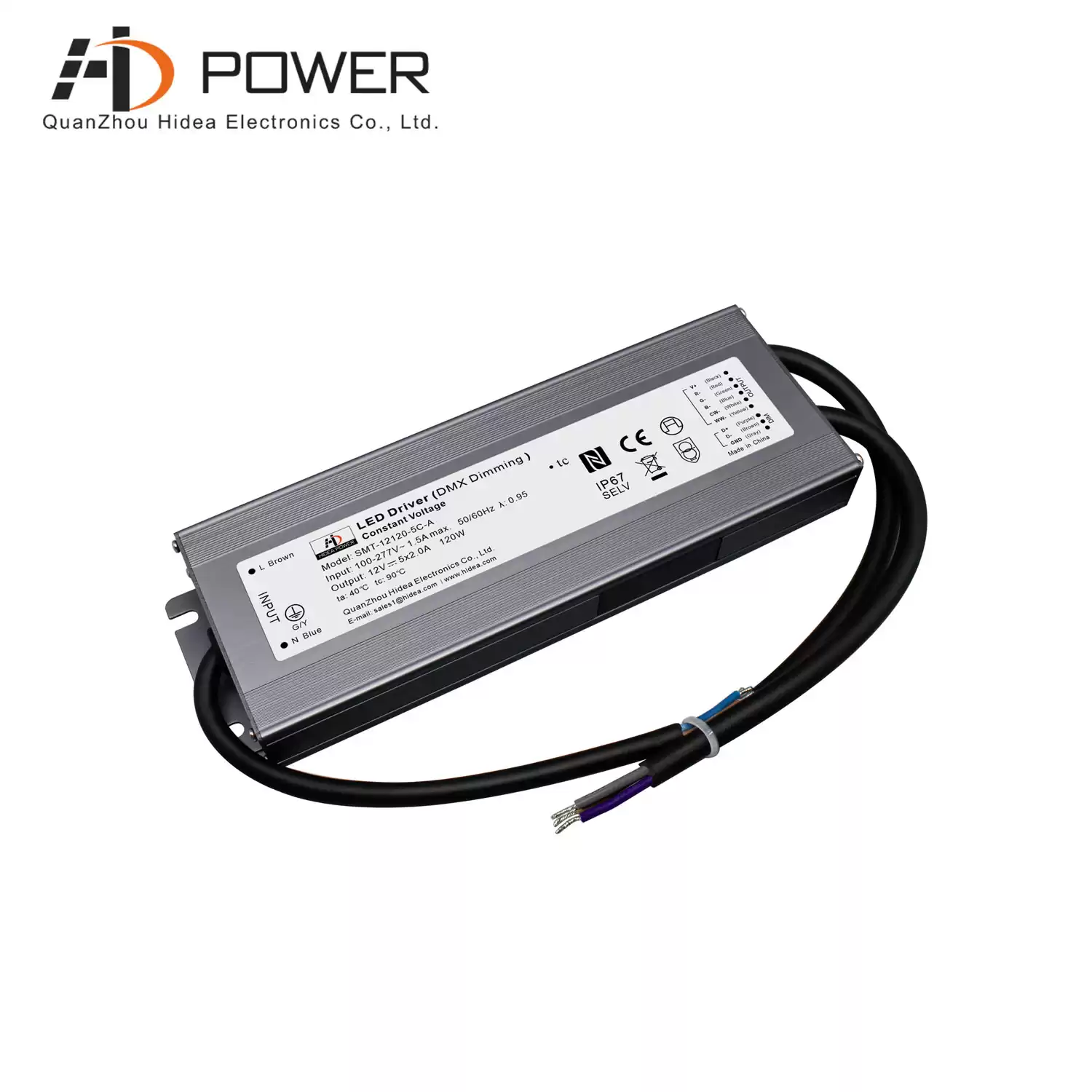

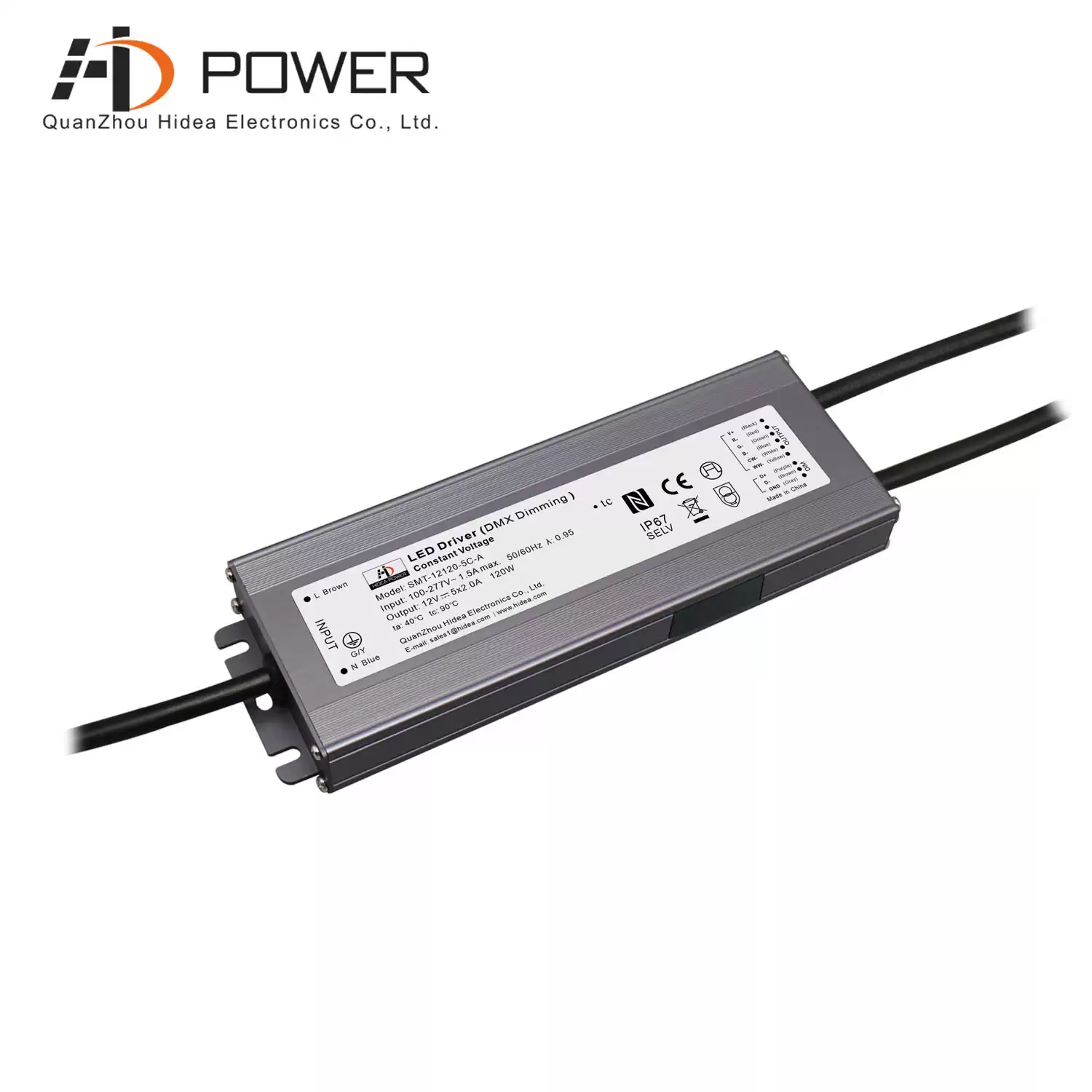

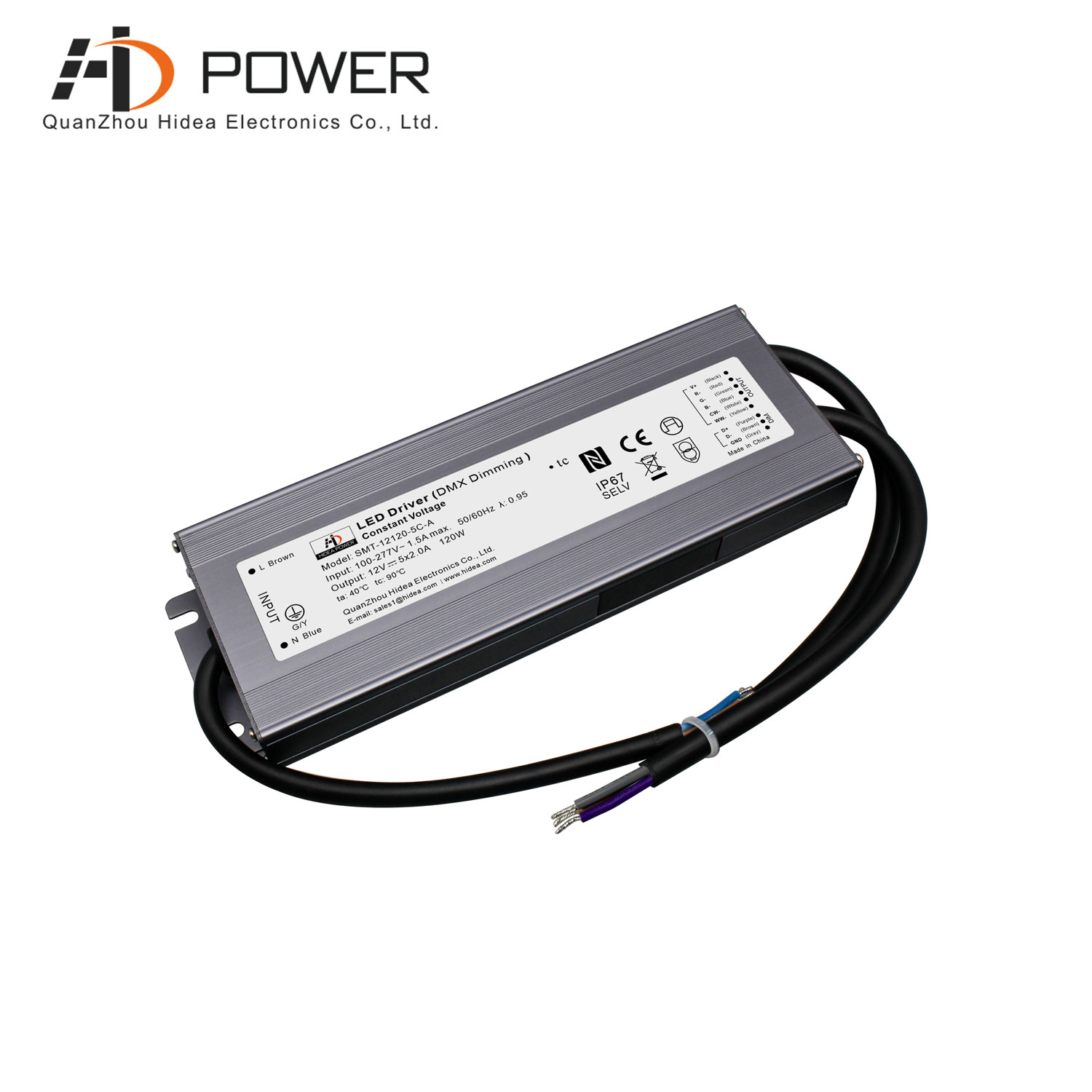

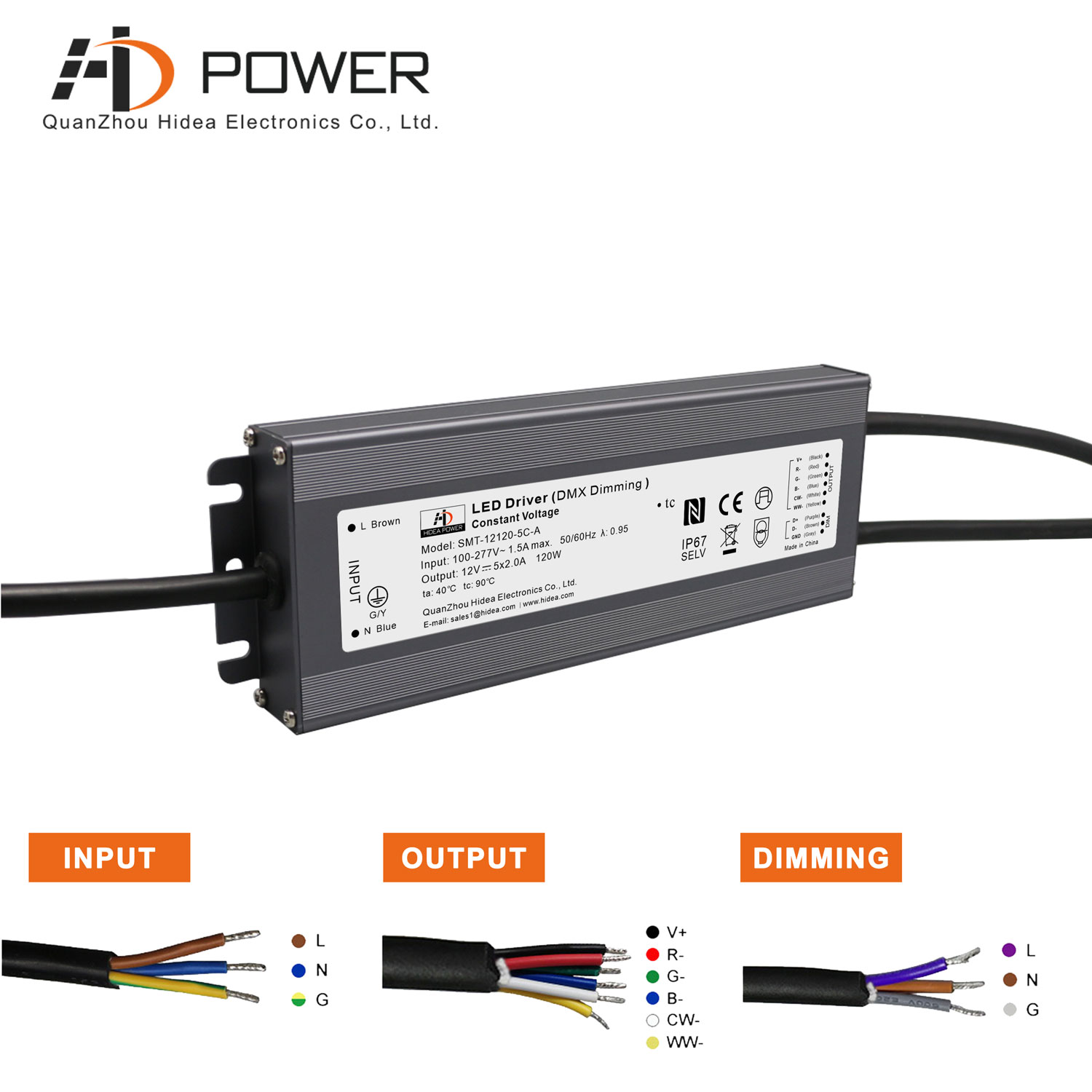

12v DMX dimmable led strip power supply driver ip67
120w led strip lighting power supply in 12vdc and 24vdc avalible, all are aluminum case design IP67 for outdoor locations, 7 years warranty, work well with TOP LIGHT LED strips.
|
|
Specification
|
Model
|
SMT-12120-XC-A
|
SMT-24120-XC-A
|
|
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
CH1+CH2+CH3+CH4+CH5=10.0A
|
CH1+CH2+CH3+CH4+CH5=5.0A
|
|
Rated power
|
120W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.@ full load
|
PF≥0.98/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<15%
|
|
Efficiency(Typ.)@full load
|
89% @230VAC
|
89%@230VAC
|
|
AC Current(Max.)
|
1.3A
|
1.3A
|
|
InrushCurrent(Typ.)
|
48.5A,164us@50%Ipeak
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% ,hiccup model, recover automatically after fault condition is removed
|
|
Over temperature
|
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
StorageTEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Net Weight
|
0.90KG
|
|
Dimension
|
230*78*25mm (L*W*H)
|
|
packing
|
10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
120w DMX dimmable driver ip67 are able to work in working temperature at -40~+60℃, following EMC and UL safety standard, work well with OTTAWA LED Premium 2835 LED Light Strip.
Related Products
|

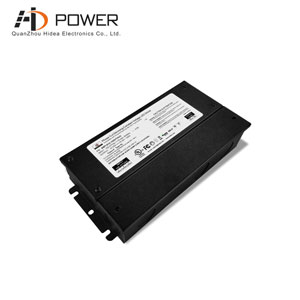

 12V 120W Triac dimmable constant voltage led driver with JBOX enclosure integrated.
