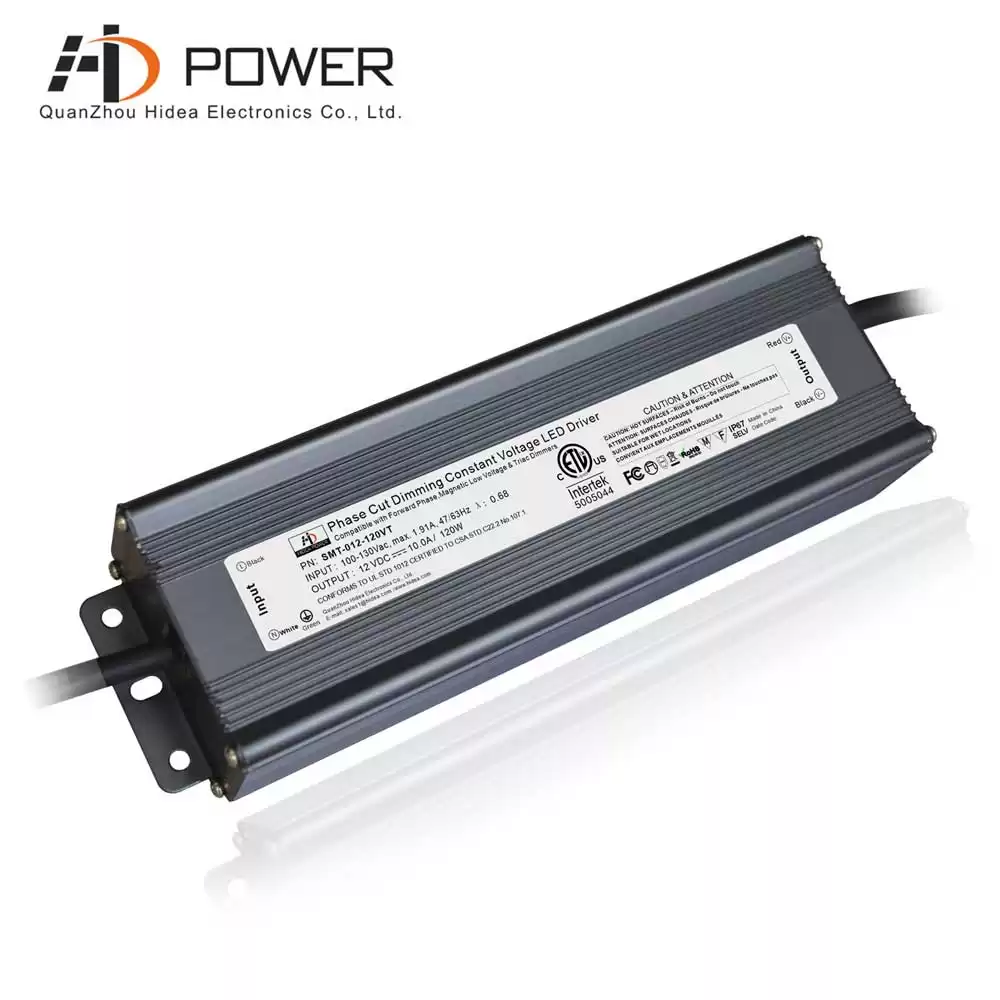

12v triac dimmable 120w led light power supplies

led light power supplies 12v 120w constant voltage working mode, Dimmable low voltage with strong compatibility, flicker-free dimming, triac Output with 0-100% load operation by working with Stouch Lighting high bay lighting 5000k.


  • Size230*68*45MM
  • Output Voltage12/24Vdc
  • Output Power(Watt)120W
  • Input Voltage100-130Vac
  • Input Voltage170-265Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeTriac Dimming
  • Weight1200g
  • CertificationETL
  • Warranty5 Years

Input voltage of this 120w led light power supplies is 100-130vac/170-265vac, 50-60Hz. it could workable with Stouch Lighting high bay lighting 5 years warranty for dry, damp, wet location.

  Specification

Model SMT-012-120VT SMT-024-120VT
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V ±0.5V
Rated current 10.00A 5.00A
Rated power 120W
Input Voltage Range 100~130VAC
Frequency Range 50~60HZ
Power Factor 0.65(Full loading)
Efficiency(Typ.) 81% 83%
AC Current(Max.) 2A 2A
Leakage current ﹤0.50mA/120VAC
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Current ≤1.2*I out
Over Loading ≤120%
Over temperature 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
Environment Working TEMP. -40~+60℃
Working Humidity 20~95%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
Safety&EMC Safety standards UL1012
Withstand voltage I/P-O/P:1500VAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Net. Weight 1.2Kg   With junction 1.84Kg
Size 230*70*46mm (L*W*H) 380*77*57mm (L*W*H)
packing 324*279*176mm  10PCS/CTN 415*360*190mm   10PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
3.Loading should be 5-100%.

led driver 12V
dimmable led driver
constant voltage led driver
SMARTS led power supply


  Compatible Light Type

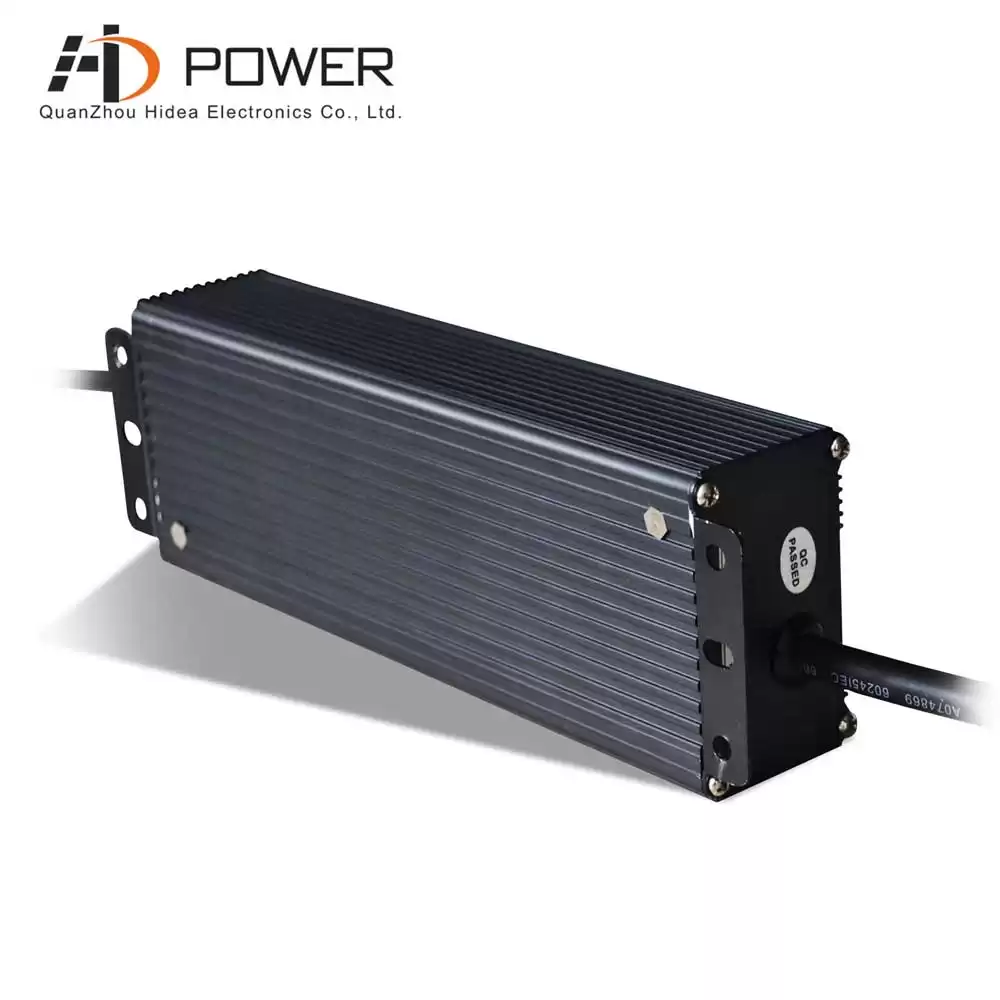

led light power supplies triac dimmable with the aluminum metal housing ip67 allows electrical connections to be made inside the J-box, Easier to install with Stouch Lighting high bay lighting ETL certificate for indoor and outdoor project.

led light power supplies

  Related Products

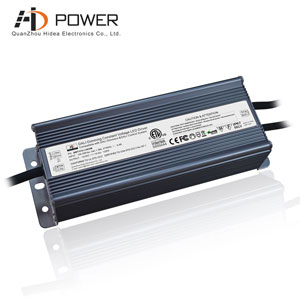

dimmable 24v led power supplyDali dimmable 12v 10a constant voltage led power supply, suitable for indoor and outdoor use, 5 years warranty...
