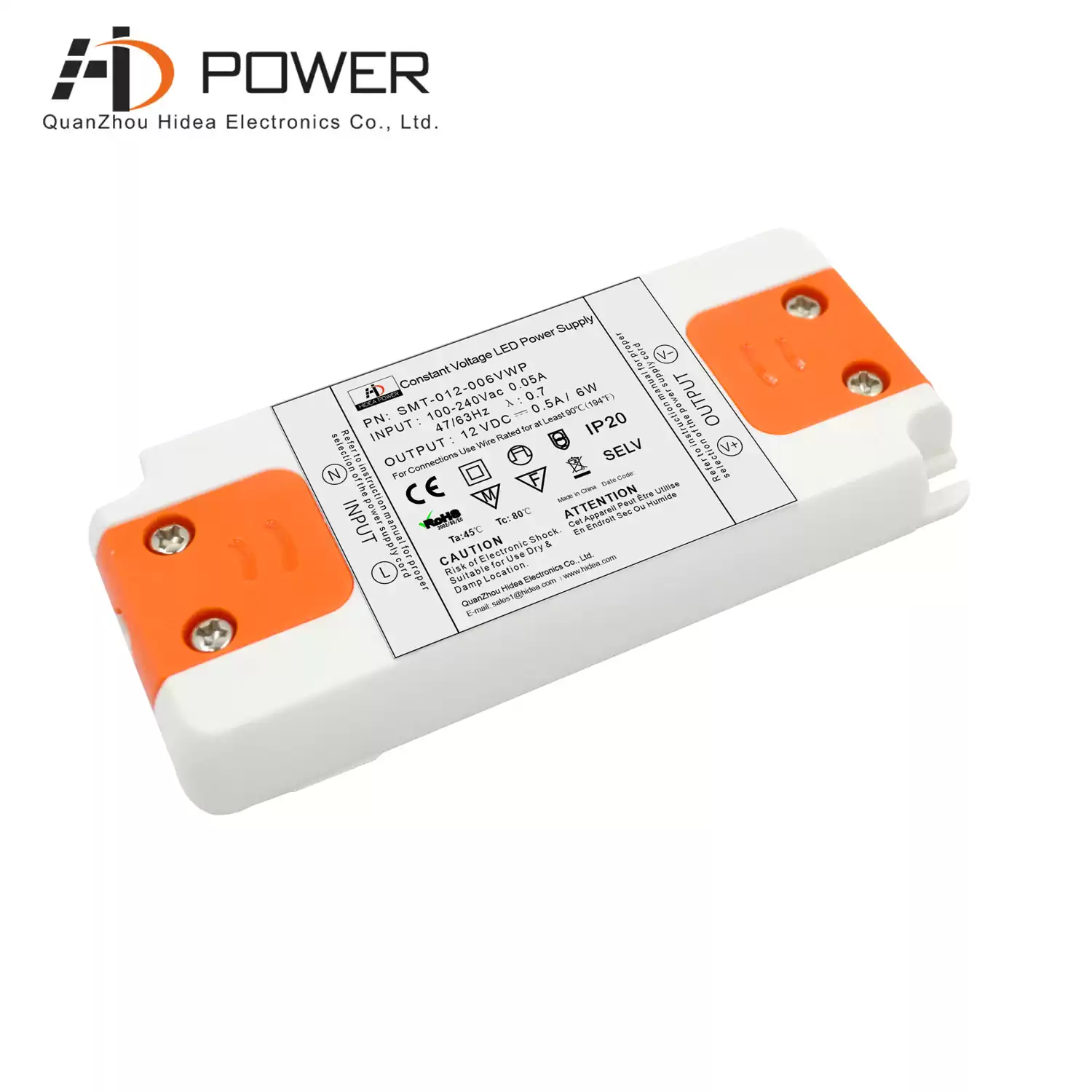

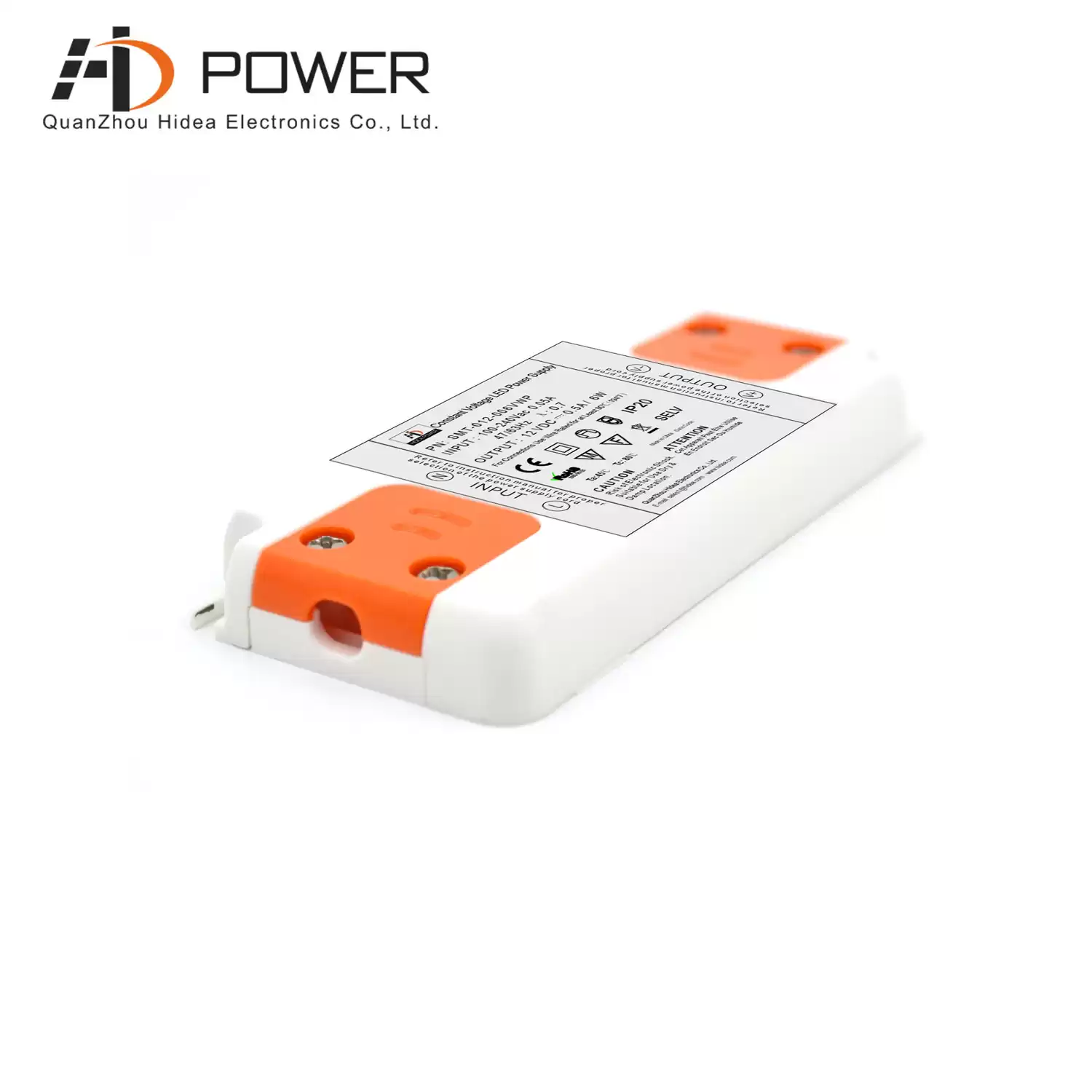

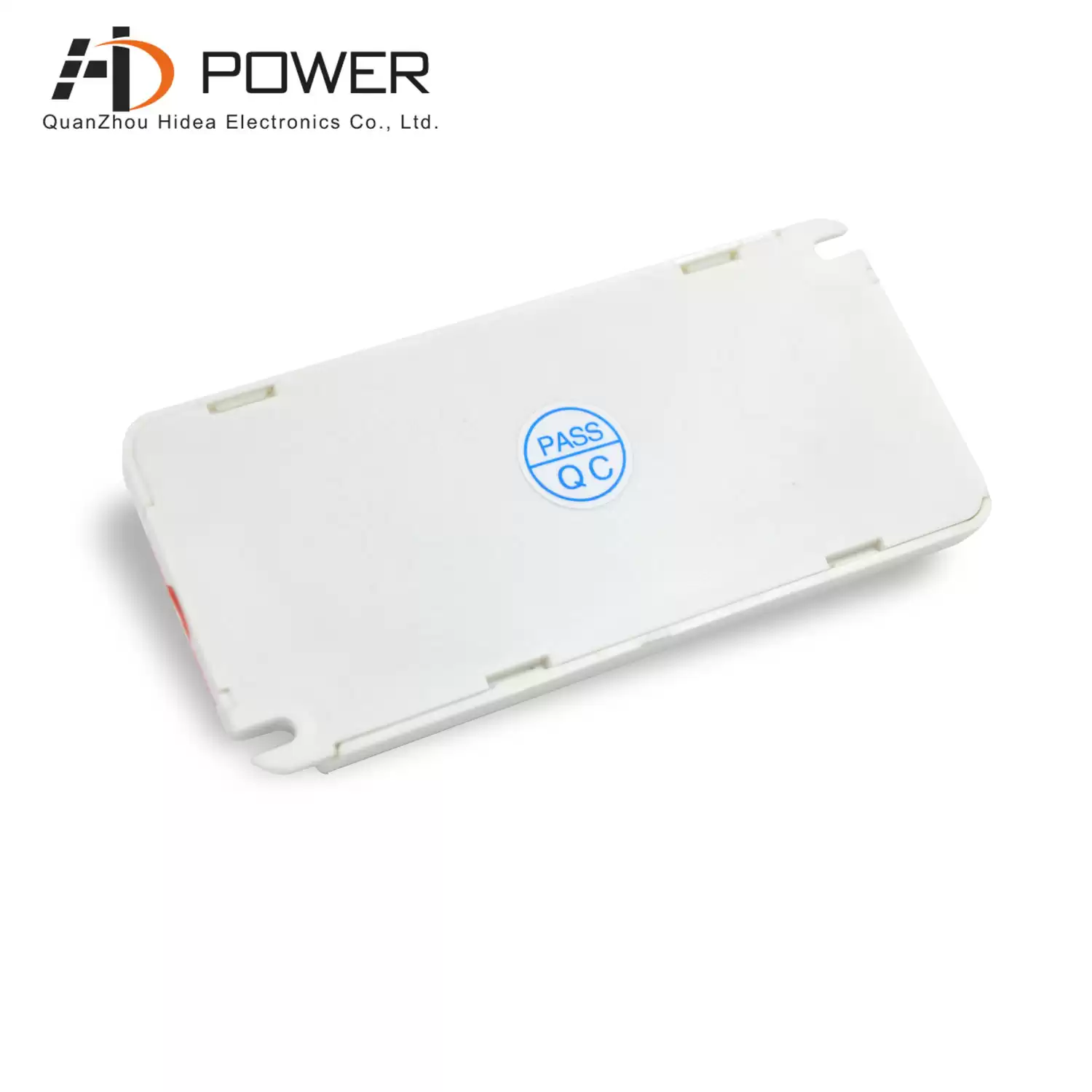

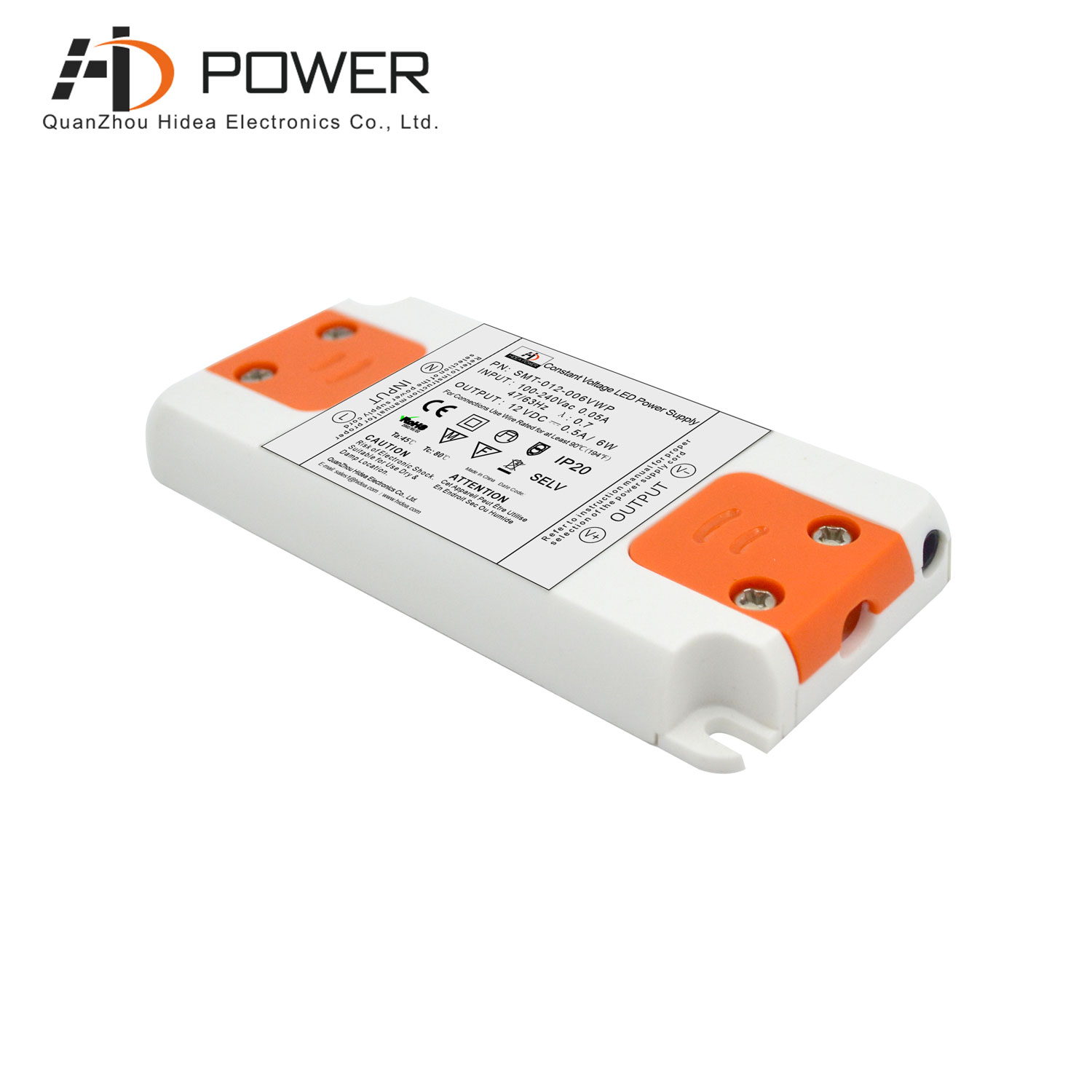

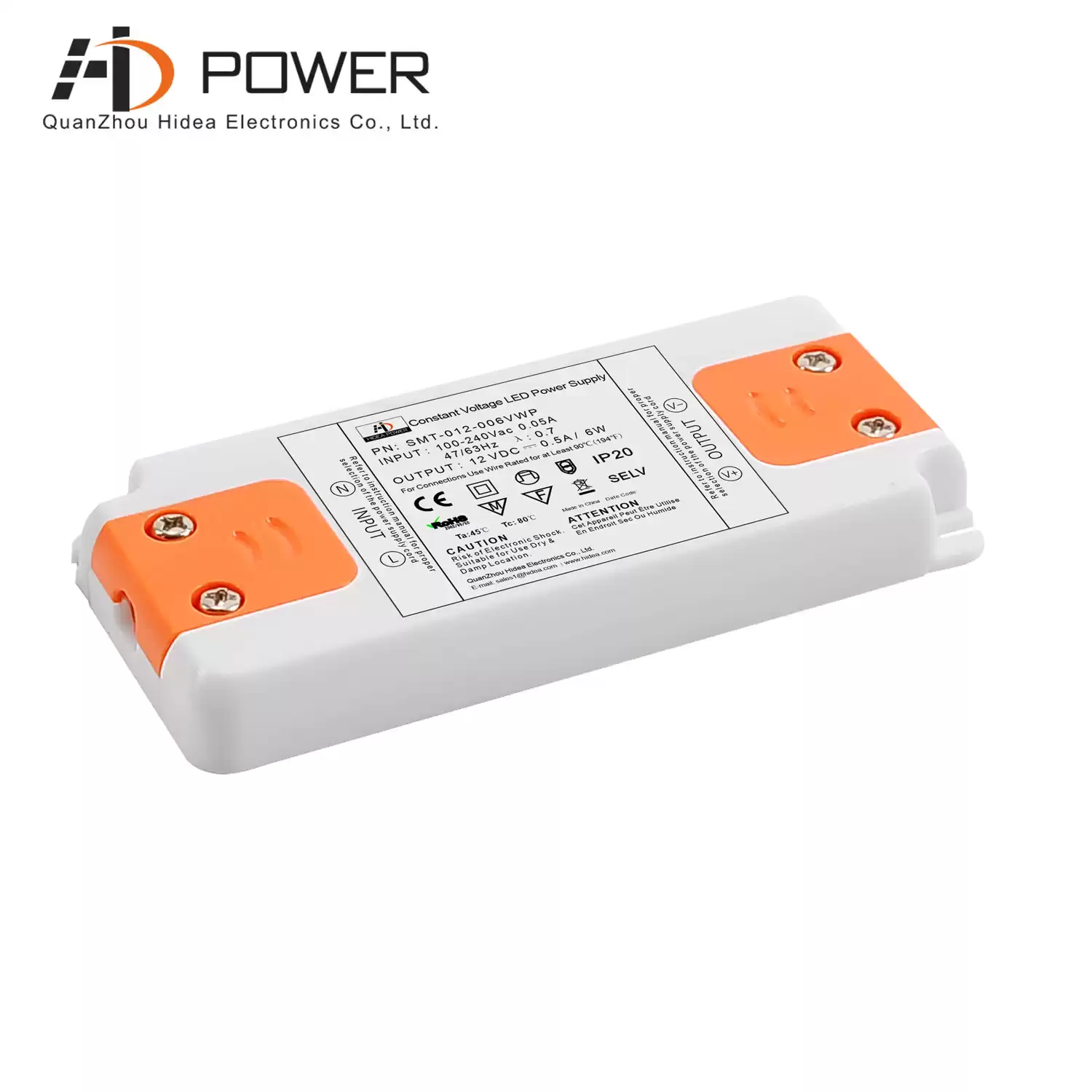

12vdc 6w ultra thin led constant voltage power supply
The led driver 6w ip44 is made of plastic material, durable & with better heat dissipation for the 2835 LEDS Ceiling Lights for Living Room.
Specification
|
MODEL
|
SMT-012-006VWP
|
SMT-024-006VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
0.5Amp
|
0.25Amp
|
|
VOLTAGE RANGE
|
0-0.5A
|
0-0.25A
|
|
RATED POWER
|
6Watt
|
6Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-240VAC
|
100-240VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.0.9A/110VAC, 0.06A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
1.0A
|
0.6A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGETEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type

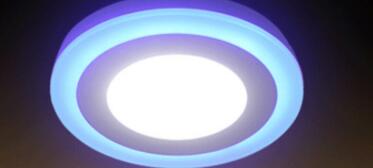

The Ultra slim led driver is quickly mateched with round/square concealed/surface RGB LED panel lights.
Related Products
|

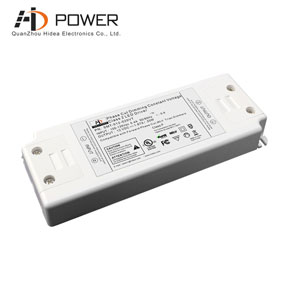

 The 12vdc 20w triac dimmable led driver is ultra thin led driver for the led lighting, they are 5 years warranty.
