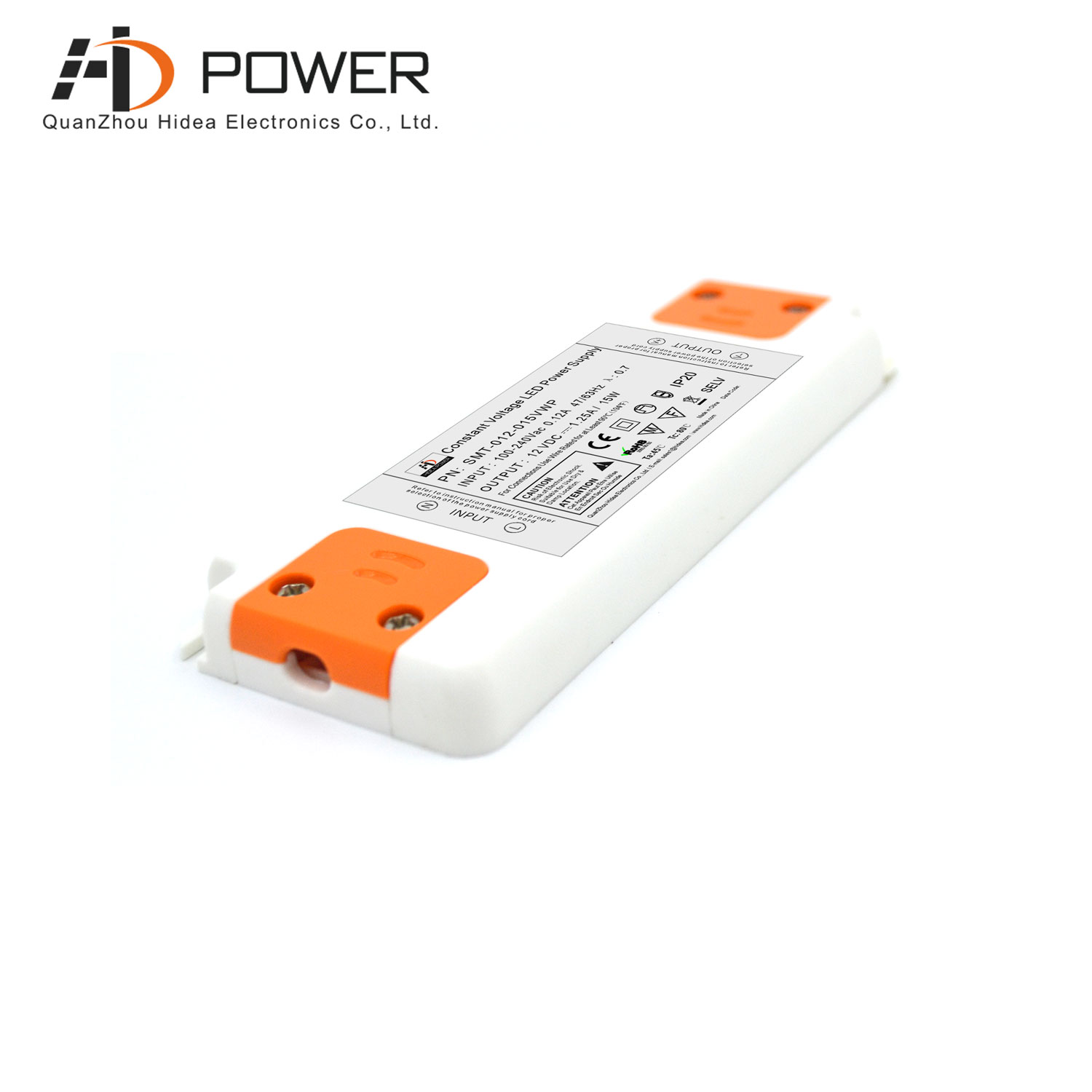

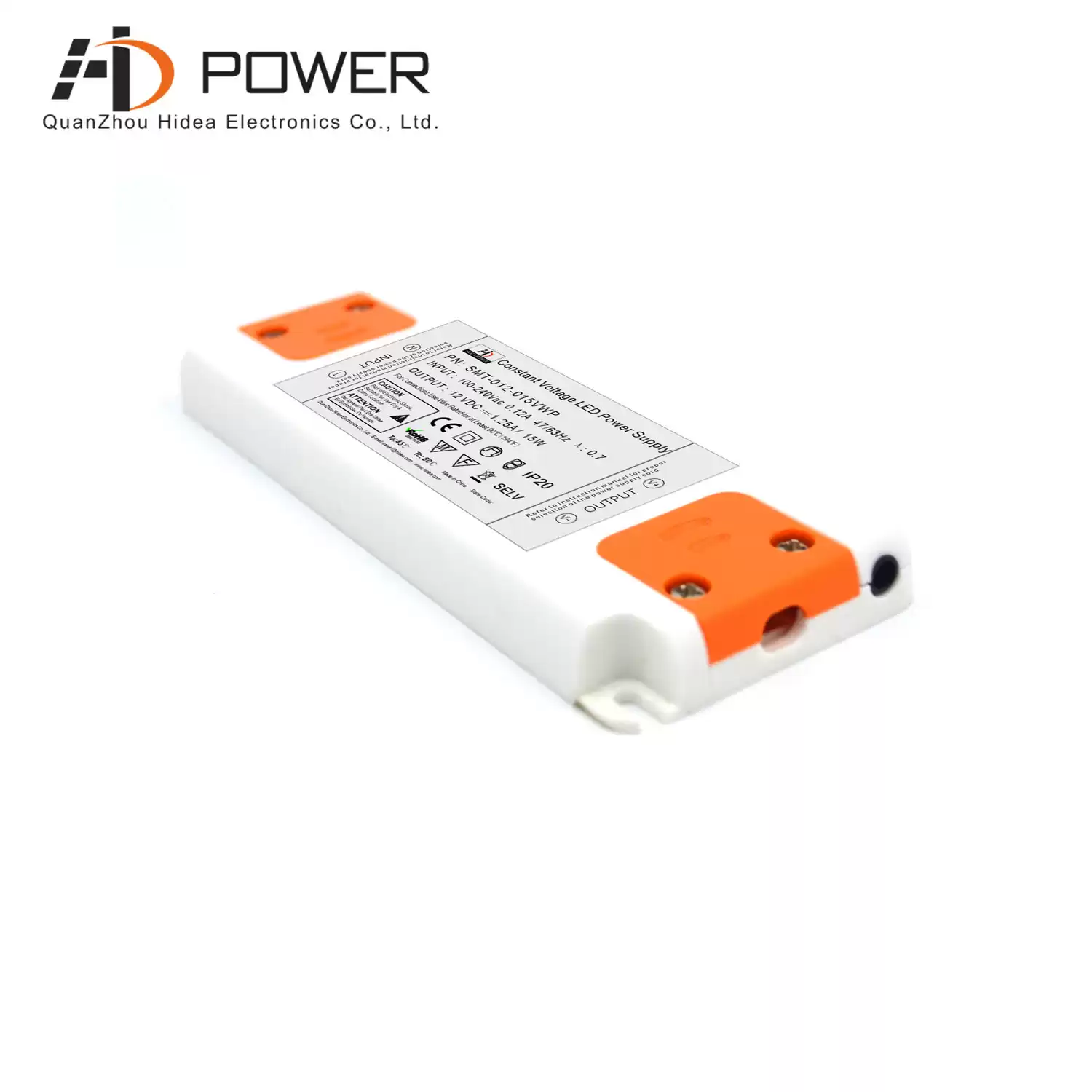

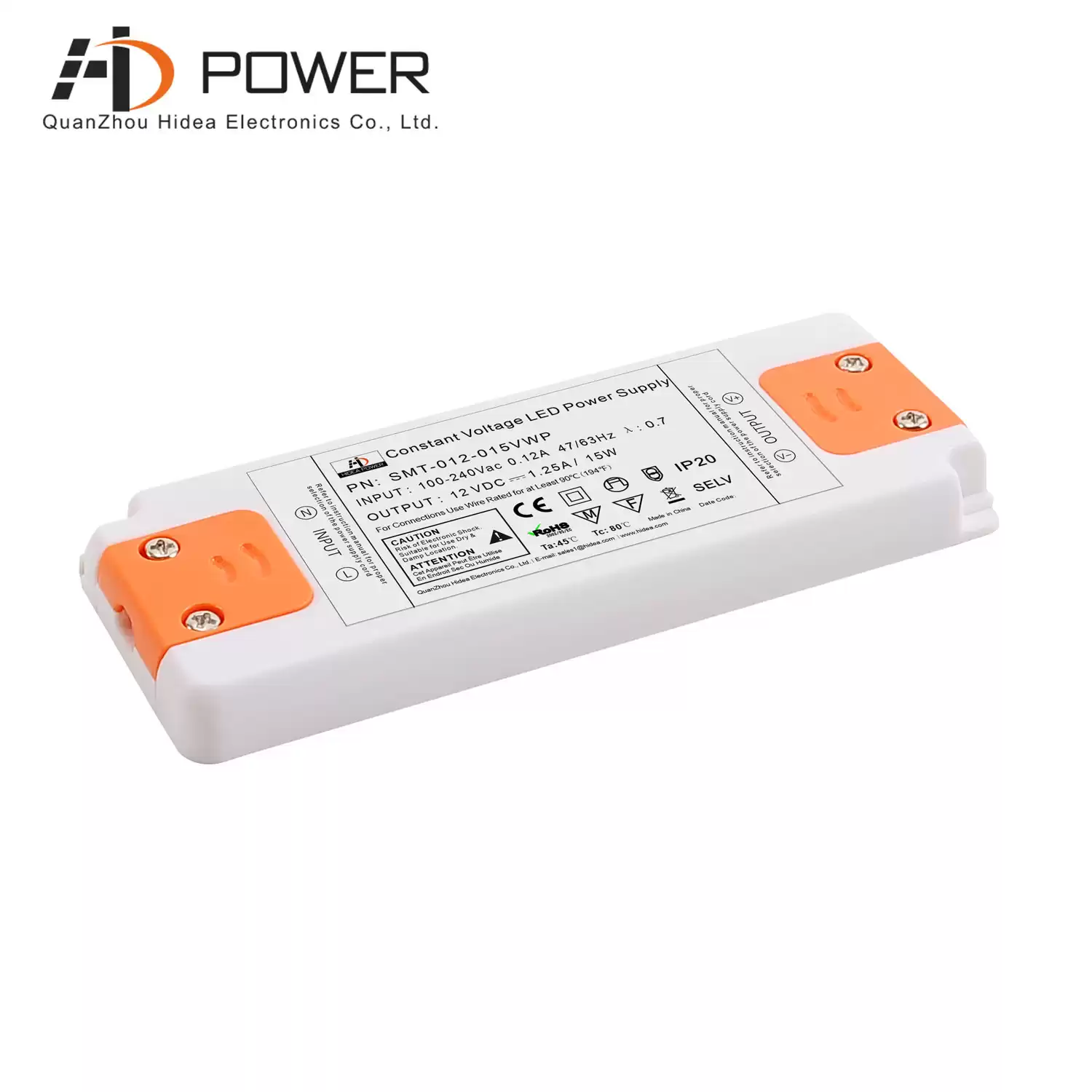

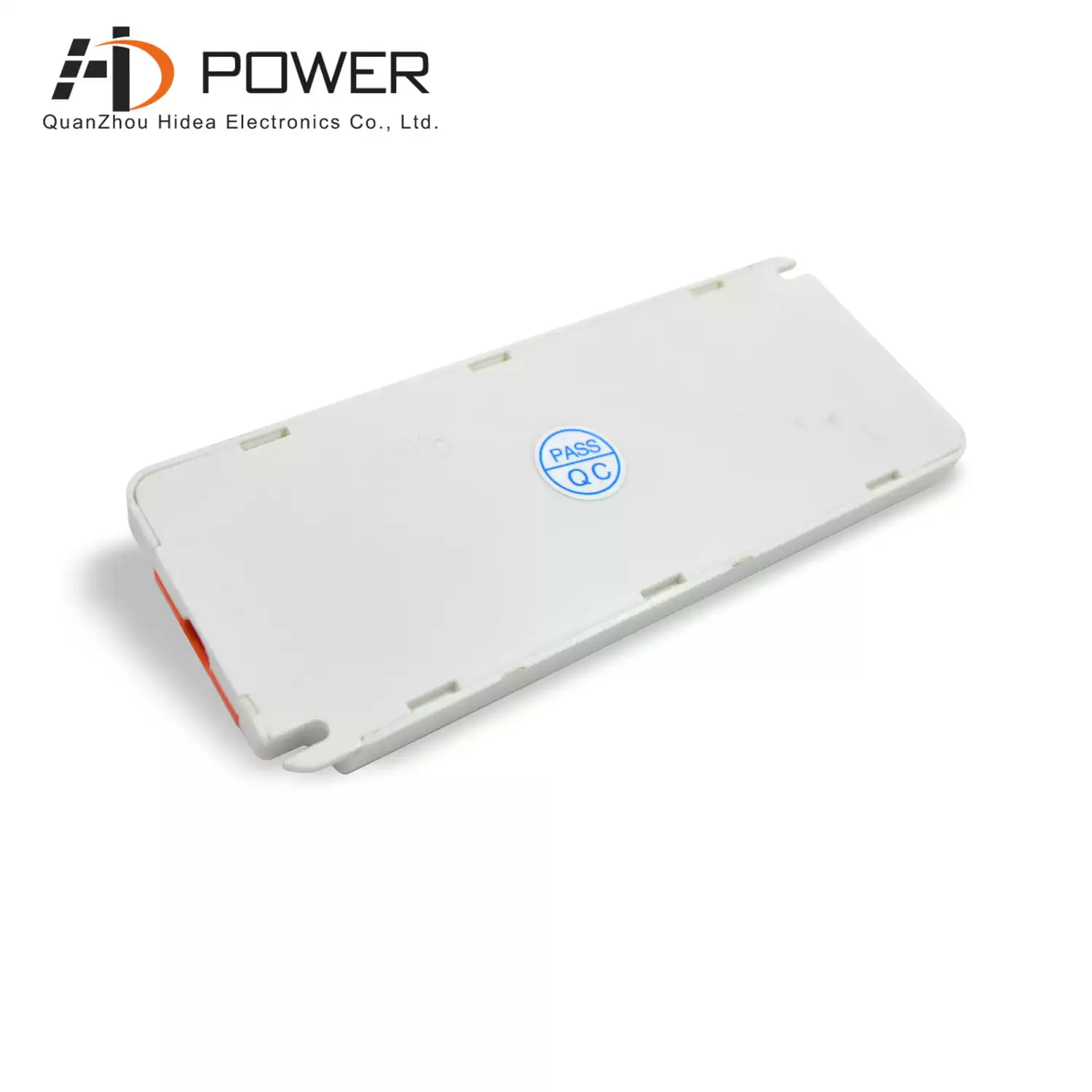

12VDC 15W non dimmable led driver ip20
The led driver 12v 15w is more ecologically friendly because unlike most conventional fluorescent lighting bulbs which contain a multitude of materials that are dangerous for the environment.
Specification
|
MODEL
|
SMT-012-015VWP
|
SMT-024-015VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.25Amp
|
0.625Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
15Watt
|
15Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-240VAC
|
100-240VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWERFACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.17A/110VAC, 0.0.86/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
2.3A
|
1.2A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGETEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

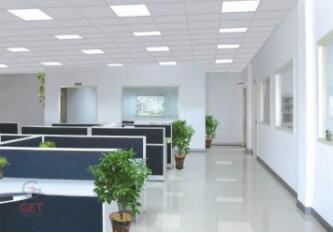

Compatible Light Type
They require less ongoing maintenance, reducing risk and time in high-level applications, with led driver selv ip20, not to mention the potential tax-benefits of huge CO2 reductions within your business.
Related Products
|

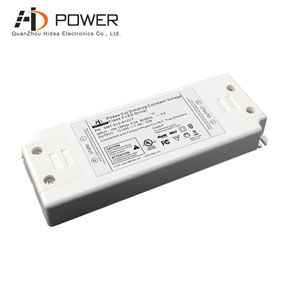

dimmable low voltage transformer constant voltage led driver 24v 12w for triac dimmable led driver for bright inside light and soft outside light, perfect for studio, stores, super market, office, exhibition, dance halls, bars, kitchen, parlors, bedroom and other lighting decoration.
