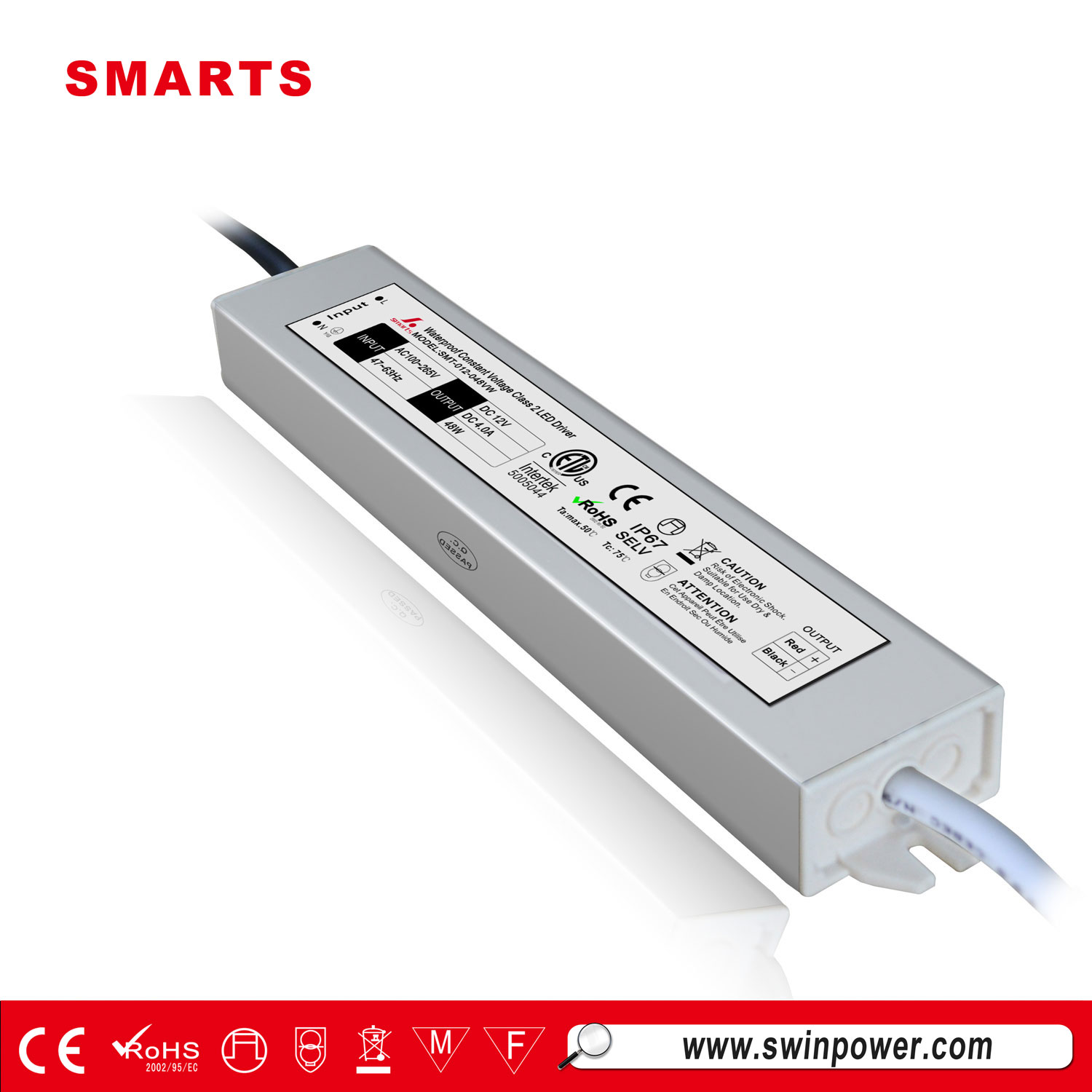

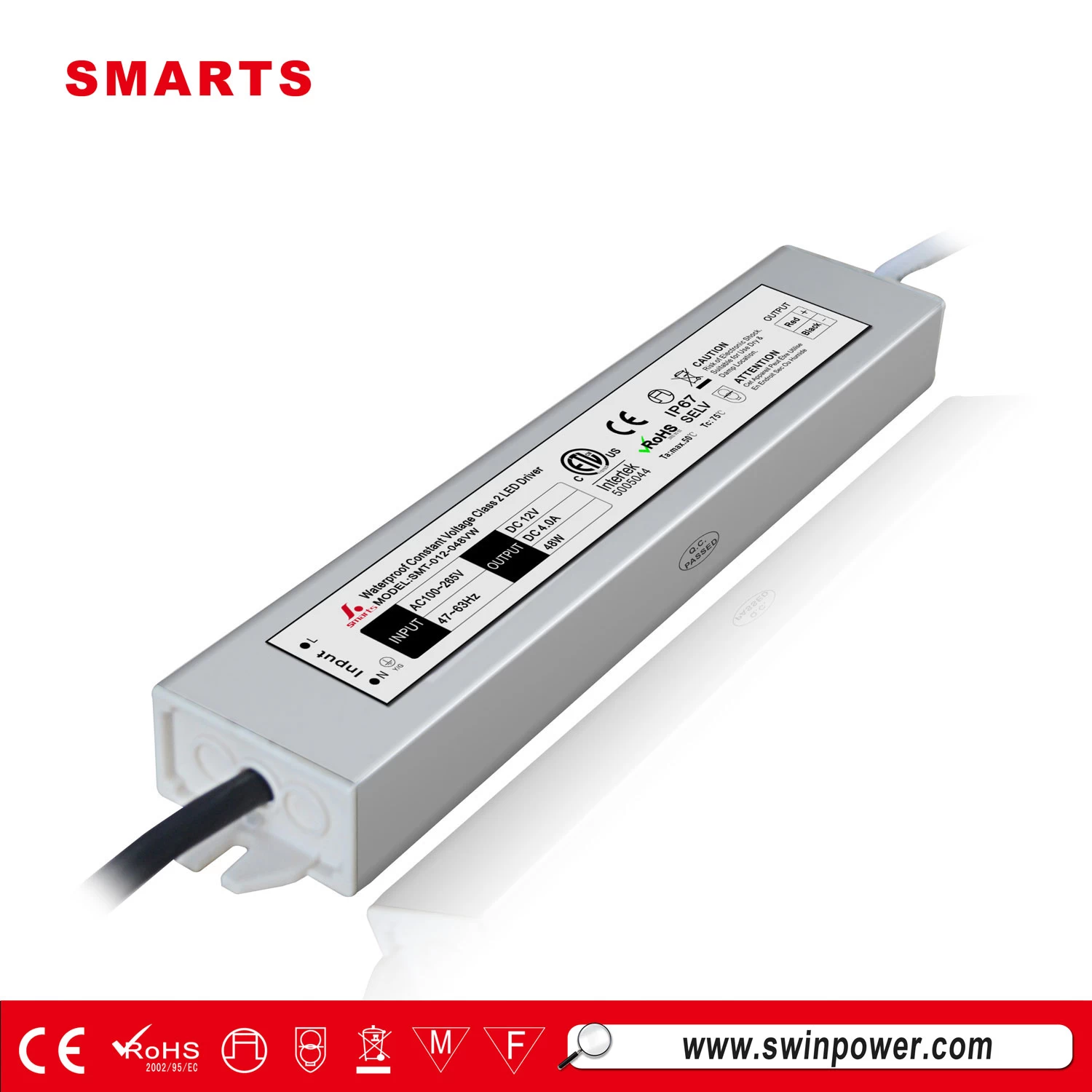

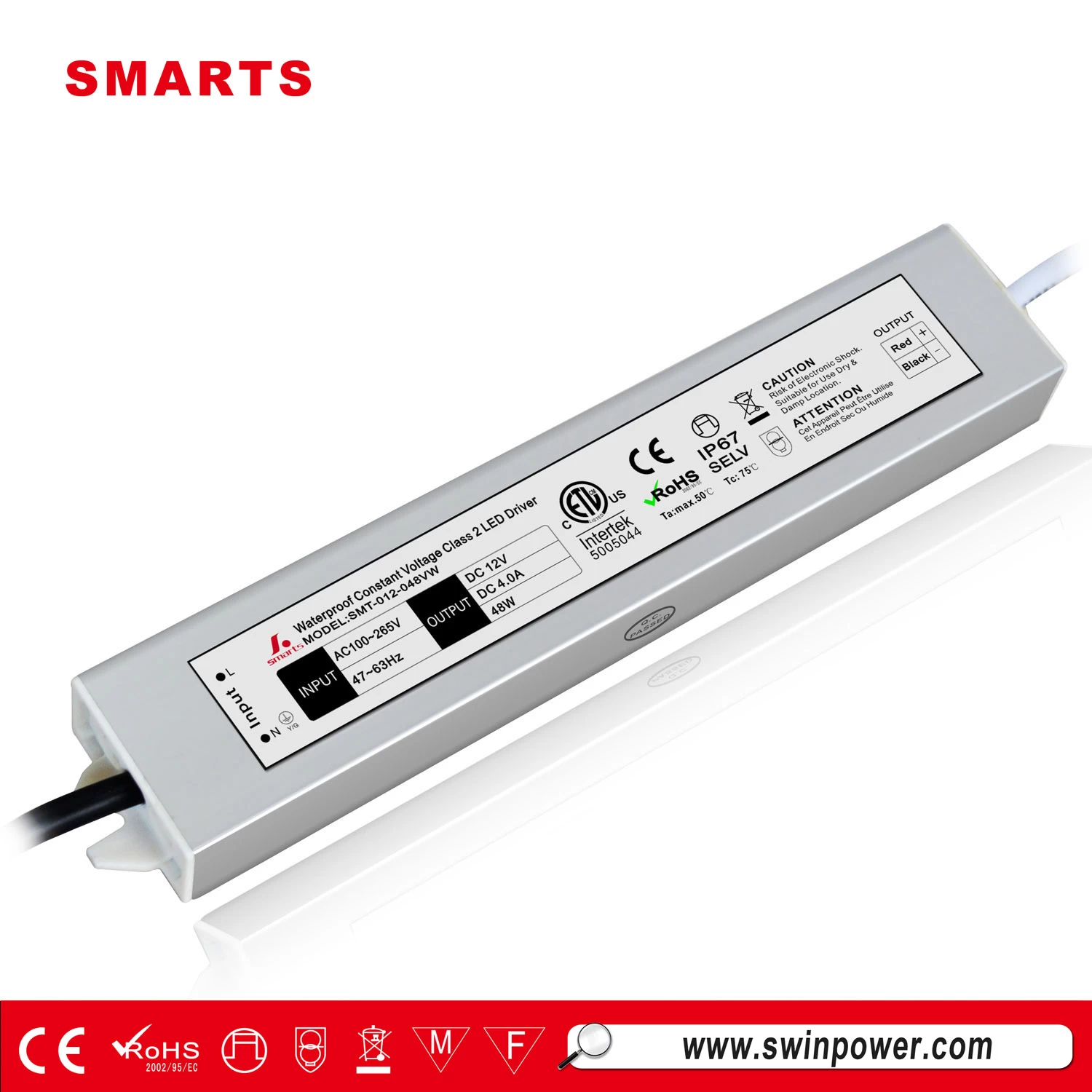

12volt 48watt slim waterproof IP67 12v 4 amp power supply for led mirror
products through ETL,CE,RoHS Certificationr, ETL file#: 5005044 12v 4 amp power supply, meet with Canada and USA market.
Specifications
|
MODEL
|
SMT-012-048VW
|
SMT-024-048VW
|
|
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
|
|
RATED CURRENT
|
4.0A
|
2.0A
|
|
|
|
CURRENT RANGE
|
0~4.0A
|
0~2.0A
|
|
|
|
RATED POWER
|
48W
|
48W
|
|
|
|
RIPPLE&NOISE(max)
|
1.1V
|
1.12V
|
|
|
|
voltage TOLERANCE
|
12V±5%
|
24V±5%
|
|
|
|
SETUP RISE TIME
|
80ms/110VAC
|
80ms/110VAC
|
|
|
|
HOLD UP TIME(Typ.)
|
60ms/110VAC
|
60ms/110VAC
|
|
|
|
INPUT
|
VOLTAGE RANGE
|
100~265Vac
|
100~265Vac
|
|
|
|
FREQUENCY RANGE
|
50~60Hz
|
50~60Hz
|
|
|
|
POWER FACTOR(Typ.)
|
|
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>84%
|
|
|
|
AC CURRENT(Typ.)
|
0.6A/110V, 0.35A/220V
|
0.5A/110V,0.25A/220V
|
|
|
|
INRUSH CURRENT (Typ.)
|
COLD START 30A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
UL, CE Mark(LVD), IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured
at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
What is constant voltage led driver?
A Constant Voltage LED Driver 12V & 24v can be used to power LED lights that have constant current drivers already within the system or resistors . 'Constant voltage' refers to the ability to fluctuate output current to maintain a set voltage. So you need some type of constant voltage power supply that can convert your AC household voltage down to a safe DC voltage
