13-25 Tons Heavy Duty Diesel Counterbalance Forklift

Heavy Duty Diesel Counterbalance Forklift have a capacity ranging from 13-25tons,equipped Chinese or Cummins egine.They have high load capacity and are widely used for material handling, stacking, container stuffing and de-stuffing purposes.



13-25 Tons Heavy Duty Diesel Counterbalance Forklift

Heavy Duty Diesel Counterbalance Forklifts have a capacity ranging from 13-25tons,equipped Chinese or Japanese egine.They have high load capacity and are widely used for material handling, stacking, container stuffing and de-stuffing purposes.The truck is powerful and equipped with pneumatic rubber tires, which can adapt to various complex working conditions, and can also be equipped with various attachments to adapt to handling various materials.We can also produce 28-50 tons of super heavy duty diesel forklifts according to customers' needs.

Details of 13-25 Tons Heavy Duty Diesel Counterbalance Forklift



Features:

1.The new dynamic counterbalance design technology is adopted to move the center of gravity backward, which greatly improves the load capacity and the safety of load driving

2.The perfect combination of large flow cyclone air filter and China III emission engine

3.Low noise, energy saving, environmental protection and effectively improve the working efficiency of the whole machine

4.The roof guard is welded in one piece, and the rear beam is fixed to reduce the vibration of the whole machine

5.The design of the joystick position is more ergonomic, which can reduce the operator's fatigue

6.The large-angle steering wheel can be adjusted to meet different driving needs

7.The digital instrument is intelligent, and the latest voice prompts are added to make driving easier

8.Optimized design of heat dissipation system and air duct ensures high efficiency and energy saving of the whole machine

9.The overall design of the frame is optimized and reinforced, which reduces the vibration of the whole machine, enhances the strength of the frame and prolongs the service life of the whole machine.



Specification:


  Manufacturer NEOlift
Model   CPCD140 CPCD160 CPCD180 CPCD200 CPCD250
Rated Load kg 14000 16000 18000 20000 25000
Weight kg  17500 25000 27000 30000 33500
Mast lifting height mm 3500 3500 3500 4000 4000
Overall width mm 2320 2750 2750 2930 3060
Fork dimension mm 2200*200*80 2200*200*90 2200*220*100 2200*240*100 2400*280*105
Traction KN 110 110 120 140 160
Driving brake   Hydraulic clamp disc
Engine brand/model Optional 1 Yuchai Engine WeiChai Engine
  YC6B125-T21 YC6B160Z-T20 YC6B160Z-T20 WP10G220E WP10G220E
Optional 2 Cummins
Rated Output 110(Kw) 129(Kw) 129(Kw) 162(Kw) 162(Kw)
Cylinder No. 6
Transmission gears(Front/rear)   2/1

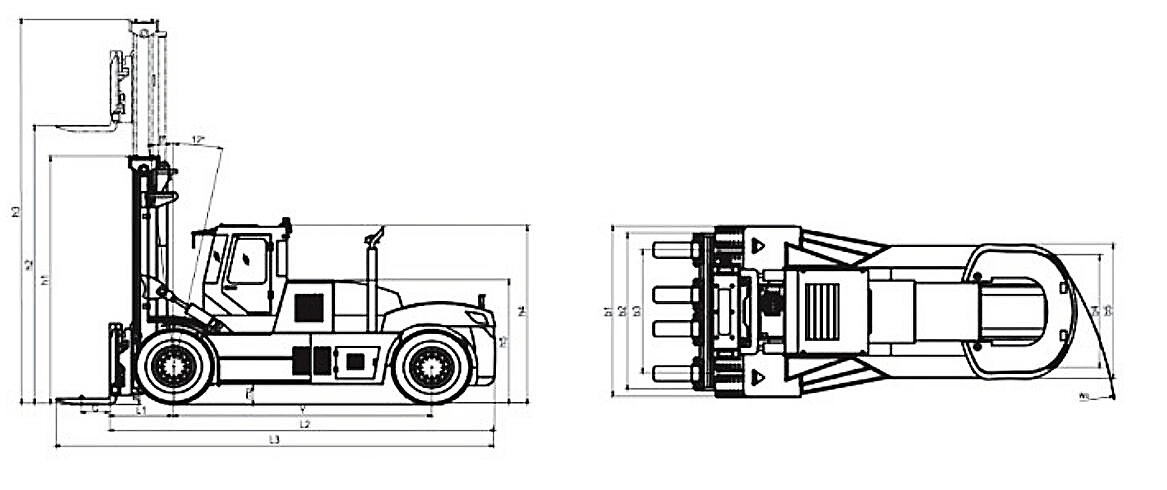

Size of heavy duty forklift

Application:

1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics

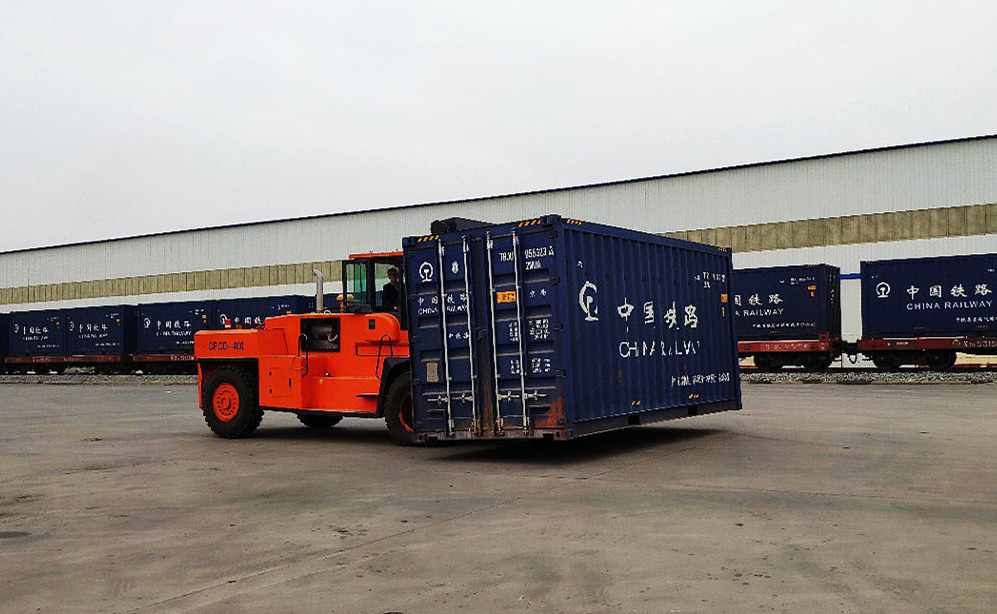

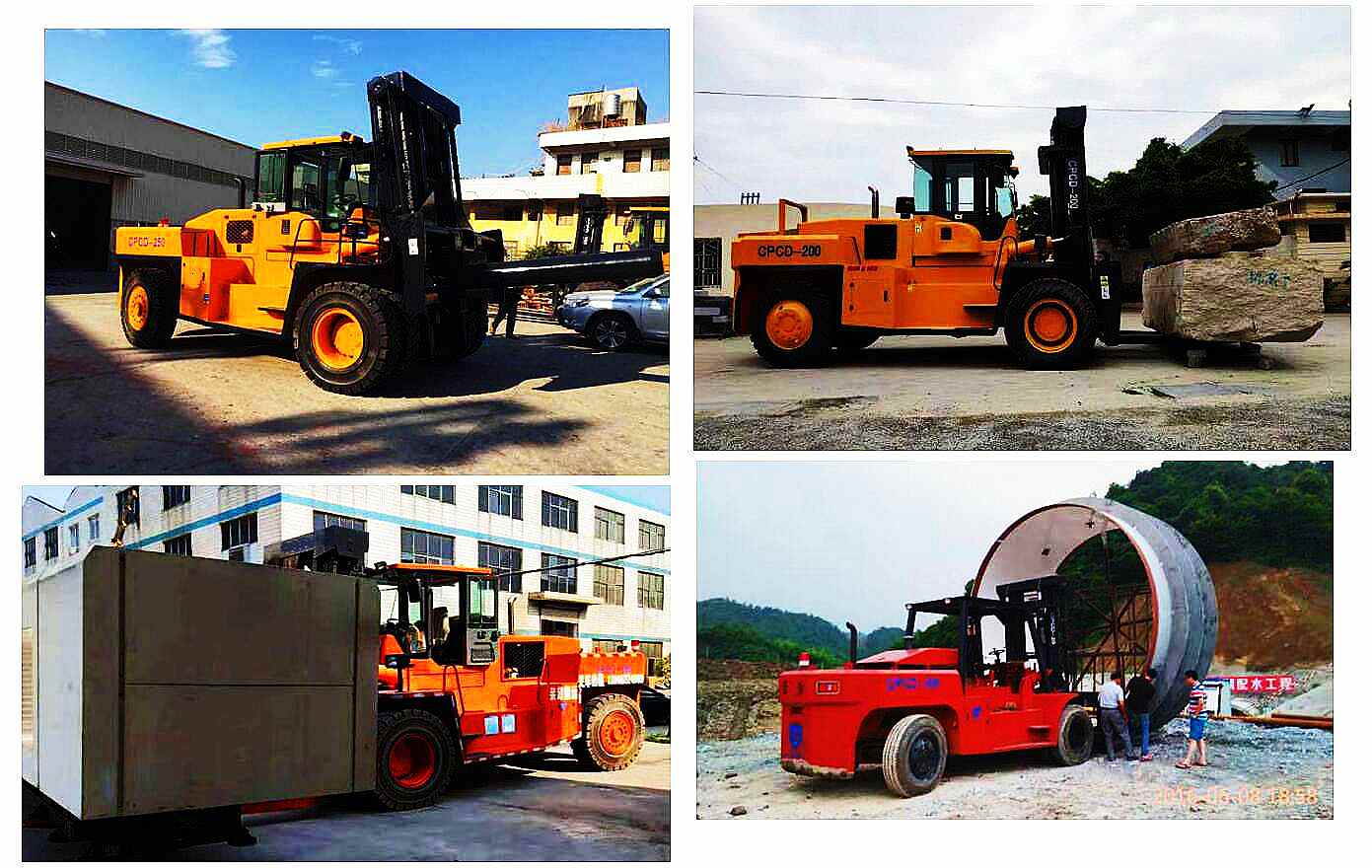

Application of 13-25 Tons Heavy Duty Diesel Counterbalance Forklift

Certificate:

Certificate

Why choose NEOlift?

1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.

2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.

3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
