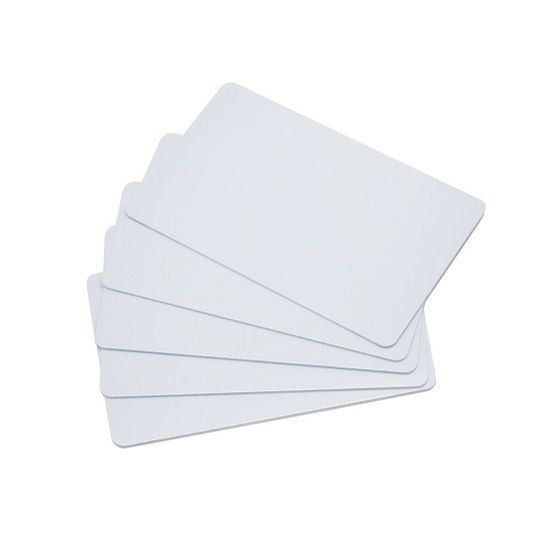

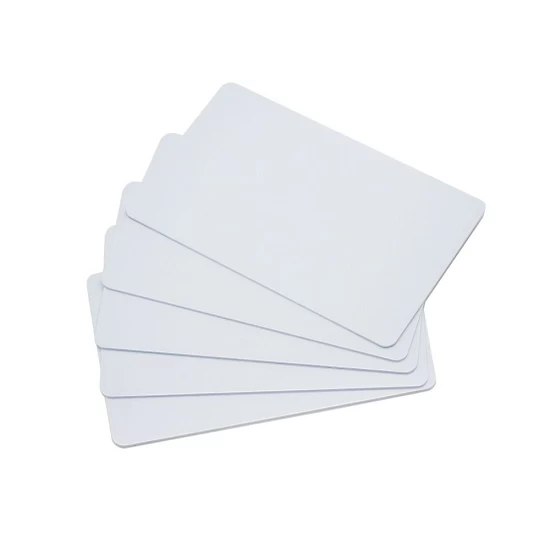

13.56Mhz MF Desfire EV1 Series Chips Blank RFID Card

Meihe rfid factory specialized in making many different kinds of rfid cards, such as the pvc cards with MF S50,S70,Mifare F08,MF desfire Ev1 2k/4k,etc.The surface of all cards is quite flat for the 2 sides laminations ,which can protect card appearance from being scratched.If you like,welcome to Meihe.



13.56Mhz MF Desfire EV1 Series Chips Blank RFID Card


Dimension :ISO7810:CR80(85.5mm*54.5mm) or customized

Thickness :0.84±0.02mm or customized

Material: PVC,PET,PET-G,Paper,ABS etc

Card Surface: Matte/ glossy finish

Working Frequency: HF

Reading Range :Depending on the design of the antenna of the reader

Housing :Lamination

Operating Temperature: -25 to +60°C

Storage Temperature :-40 to +70°C

Printing Option:
-Full color offset printing
-Silk-screen printing
-Silver/Gold silk-screen printing background


Additional crafts
-Number printing(Jet dot,Thermo transfer,Laser engrave)
-Barcode printing(Code 39, code 128, EAN13 , EAN 8,QR,etc)
-Magnetic Stripe(300oe, 2750oe, 4000oe)
-Logo/Graphics/Photo
-Overlay Foil
-Signature Panel
-Name Personalisation
-Photo Personalisation
-Hologram
-Security Printing
-Encoding

The Blank Card Application

Detail description of DESFire® EV1 2K/4K chips
- Fully ISO / IEC 14443 A 1-4 compliant
 - 4 Kbytes EEPROM with fast programming
 - Secure, high speed command set
 - High data rates according to ISO / IEC 14443-4: 848 Kbit/s
 - Flexible file structure
 - Choice of open DES/3DES/3KDES/AES crypt to algorithm in hardware
 - Anti-collision
 - Unique 7-byte serial number (ISO cascade level 2)
 - Data integrity: CRC and bit counting on physical layer
 - Available in MOA4 modules or 8” sawn bumped wafer



Main Feature

The surface of all cards is quite flat for the 2 sides laminations ,which can protect card appearance from being scratched.All our blank card is suitable for all kinds of card printer.


Application
 - Advanced public transportation
 - Access management
 - E-Government incl. social services
 - Identity
 -Cashless payment
