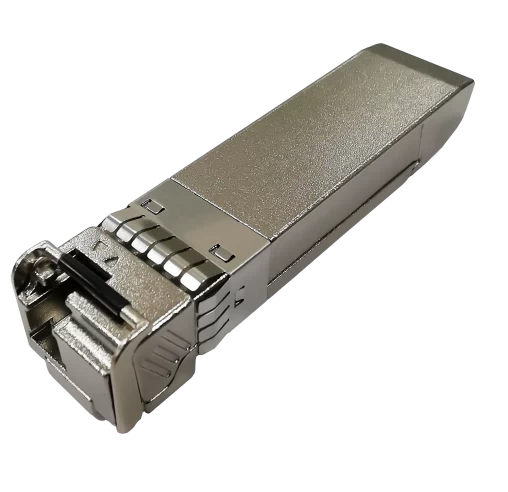

ESB23X6-3LCD10
14.025Gbps SFP+ BIDI Transceiver, Single Mode, 10km Reach
1270nm TX / 1330nm RX
Features
Ø Supports up to 14.025Gbps bit rates
Ø Hot-pluggable SFP+ footprint
Ø 1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
Ø Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
Ø Compatible with RoHS
Ø Single +3.3V power supply
Ø Real Time Digital Diagnostic Monitoring
Ø Operating case temperature:
Standard: 0 to +70°C
Applications
Ø 4.25/8.5/14.025G Fibre channel
Product description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode in
tegrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
