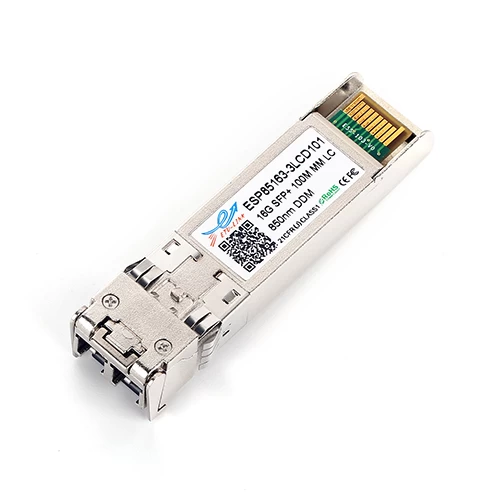

ES85X6-3LCD01
14.025Gbps SFP+ Transceiver, Multi Mode, 100m Reach
Features
Ø Supports up to 14.025Gbps bit rate
Ø Hot-pluggable SFP+ footprint
Ø 850nm VCSEL laser and PIN photodiode, Up to 100m for OM3-MMF transmission
Ø Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Ø Compatible with RoHS
Ø Single +3.3V power supply
Ø Real Time Digital Diagnostic Monitoring
Ø Operating case temperature:
Ø Standard: 0 to +70°C
Applications Applications
Ø 4.25/8.5/14.025G Fiber Channel
Product description
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025 Gbps.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
