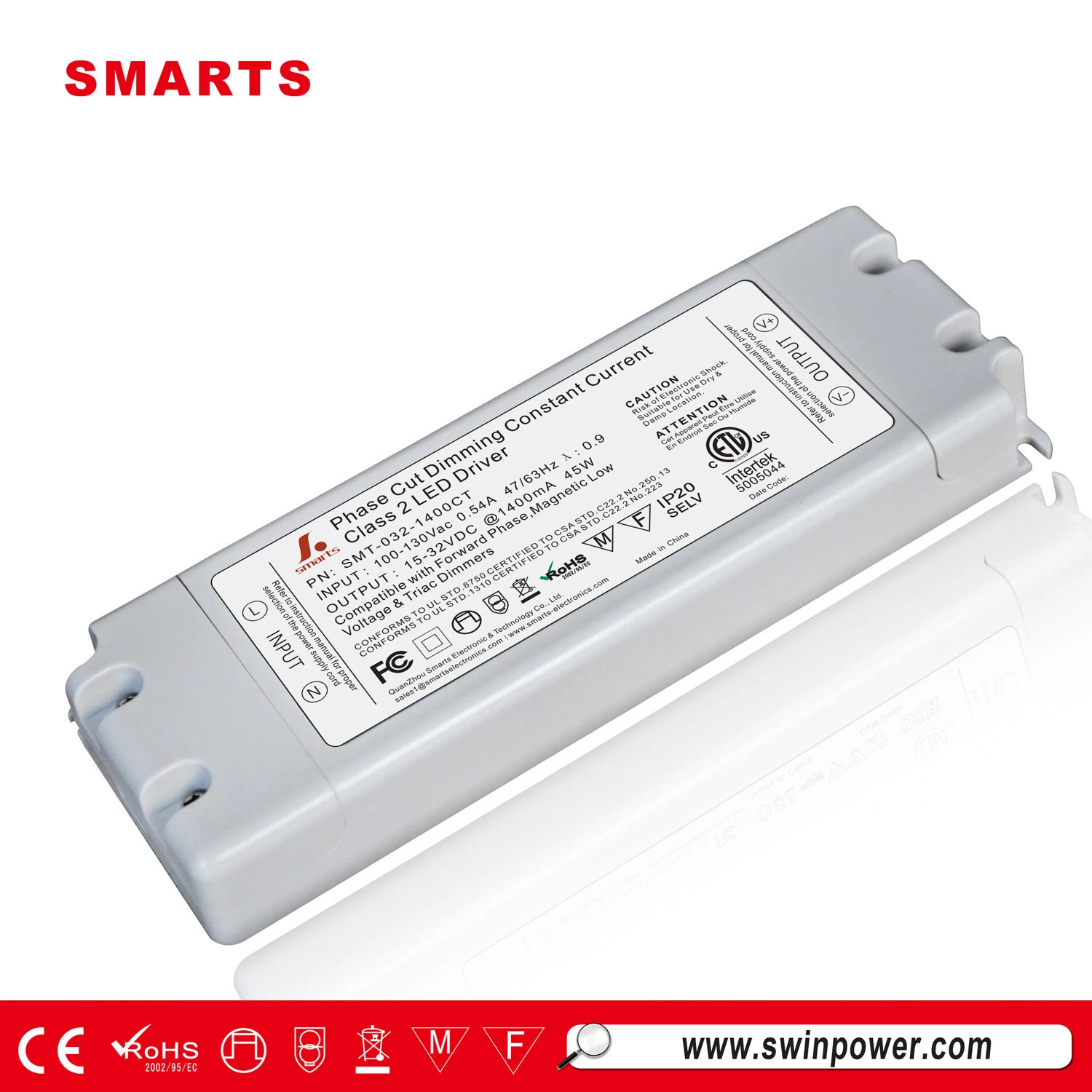

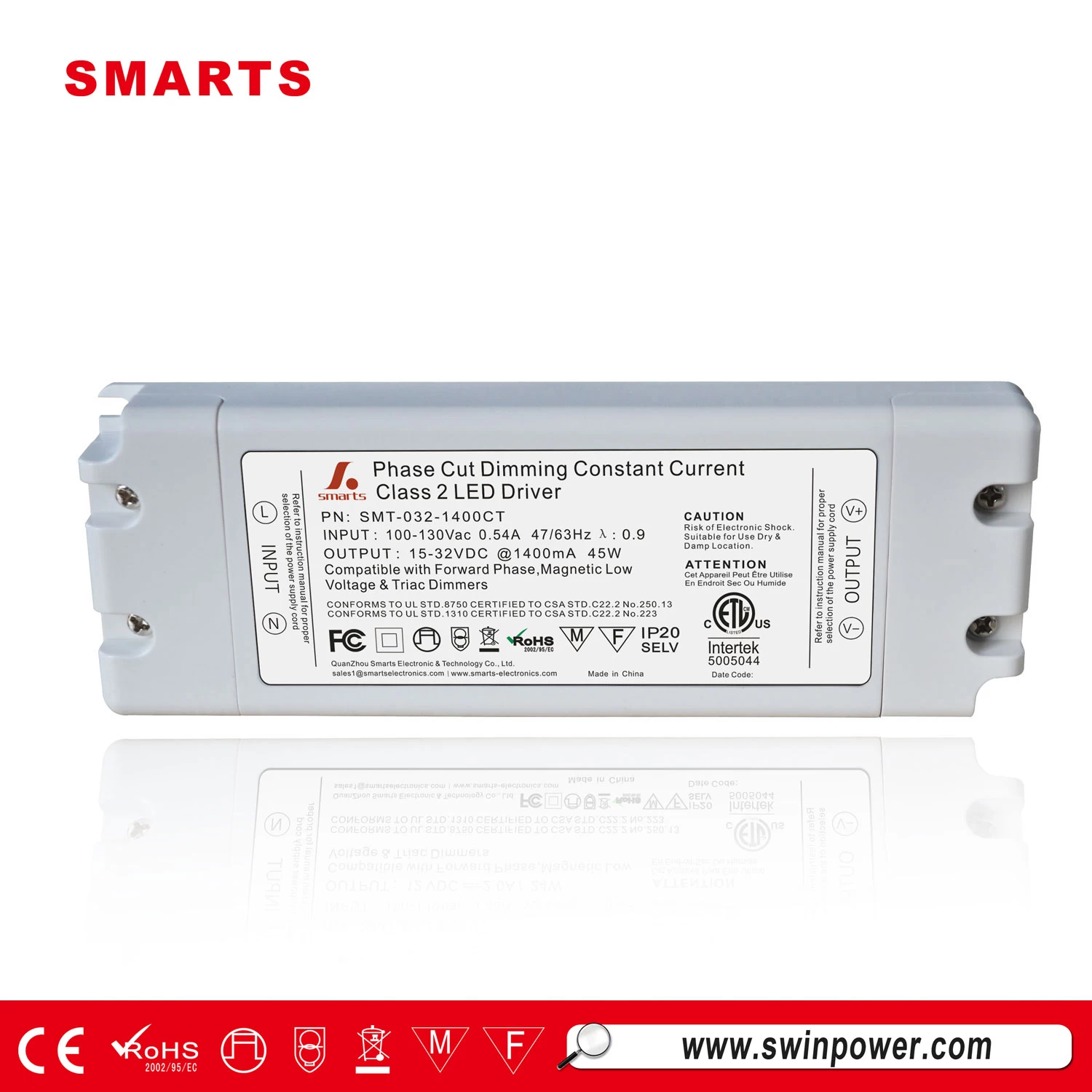

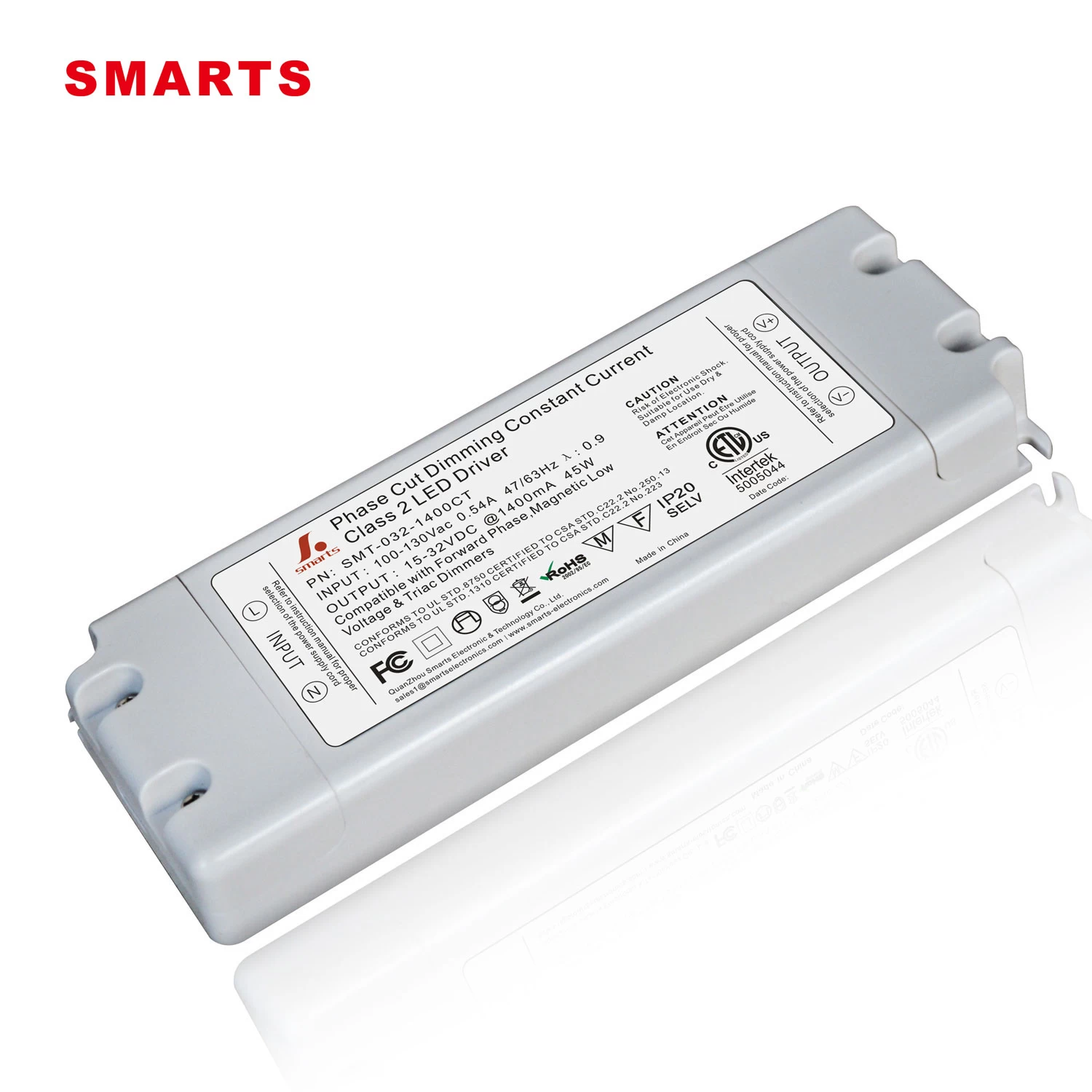

SMT-032-1400CT is 1400mA triac dimming led driver. The output voltage range is 18-32Vdc, 45W. it is IP20 not waterproof version for indoor use. High PF>0.92, high efficiency>88%. With long warranty years 5 years.
Features of 1400mA triac dimming led driver：
·Output constant current
·Input range :100-130VAC / 170-265VAC
·Built-in PFC function, PF>0.9
·Efficiency > 85%
·Protections:Short circuit/over Voltage
·Fully isolated plastic case
·Easy installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·CE,UL/cUL, RoHS approval
·5 years warranty
Specification of 1400mA triac dimming led driver:
|
Model
|
SMT-090-0350CT
|
SMT-032-1400CT
|
SMT-065-0700CT
|
SMT-050-0900CT
|
|
Output
|
DC Current
|
350mA
|
1400mA
|
700mA
|
900mA
|
|
|
Current Accuracy
|
±5%
|
|
|
Voltage Range
|
50-90V
|
18-32V
|
40-65V
|
25-50V
|
|
|
Rated power
|
30W
|
45W
|
45W
|
45W
|
|
Input
|
Voltage Range
|
90-130VAC / 170～250VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor （Typ.）
|
PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V
|
|
|
Full Load Efficiency（Typ.）
|
>85%
|
>85%
|
>85%
|
>85%
|
|
|
AC Current（Typ.）
|
0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
|
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over voltage
|
≦270VAC
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN-61347-1-2
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
0.34Kg/pcs
|
|
|
Size
|
180*60*34mm
m
mmm（L*W*H）
|
|
|
packing
|
324*298*176mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a
0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
FAQ：
What is the difference between a driver and a power supply?
LED power sources that provide a “constant-current” output have typically been referred to as LED drivers. In the past, AC-DC power supplies that provided a regulated “constant-voltage” to LEDs were referred to as LED power supplies. Today, the terms “LED driver” and “LED power supply” are used interchangeably.
