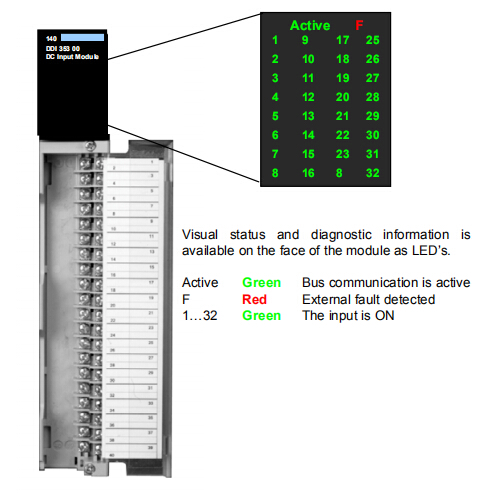

The Quantum 140DDI35300 Discrete DC Input Module accepts (32) 24VDC inputs. The module is a 4x8 (4 groups, 8 inputs each) Sink input card and is for use with source output devices.
A Quantum removable terminal strip allows for easy maintenance.
Quantum backplanes (ordered separately) come in 2,3,4,6,10, and 16 slot versions. Any Quantum module can be used in any slot. A Quantum power supply is required in each rack. The power supply provides logic power to all modules on the bus.
|
Module Type
|
|
32 discrete inputs in 4 groups of 8 inputs
|
|
|
|
|
|
Signal Type
|
|
24 VDC
|
|
|
|
|
|
ON Voltage
|
|
+15 … +30 VDC
|
|
|
|
|
|
OFF Voltage
|
|
-3 …+5 VDC
|
|
|
|
|
|
ON Current
|
|
2.0 mA minimum
|
|
|
|
|
|
OFF Current
|
|
0.5 mA maximum
|
|
|
|
|
|
Absolute Maximum Input
|
|
30 VDC Continuous; 56 VDC decaying pulse over 1.3 ms
|
|
|
|
|
|
Response Time
|
|
1.0 ms OFF to ON; 1.0 ms ON to OFF
|
|
|
|
|
|
Internal Resistance
|
|
2.5 kΩ
|
|
|
|
|
|
Input Protection
|
|
Resistor limited
|
|
|
|
|
|
Group to Group Isolation
|
|
500 VAC rms for 1 minute
|
Schneider 140DDI35300
140DDI35300 - discrete input module Modicon Quantum - 32 I 24 V
Email:sales3@amikon.cn
Range of product
|
Modicon Quantum automation platform
|
Product or component type
|
Low voltage dc discrete input modules
|
Discrete input number
|
32
|
