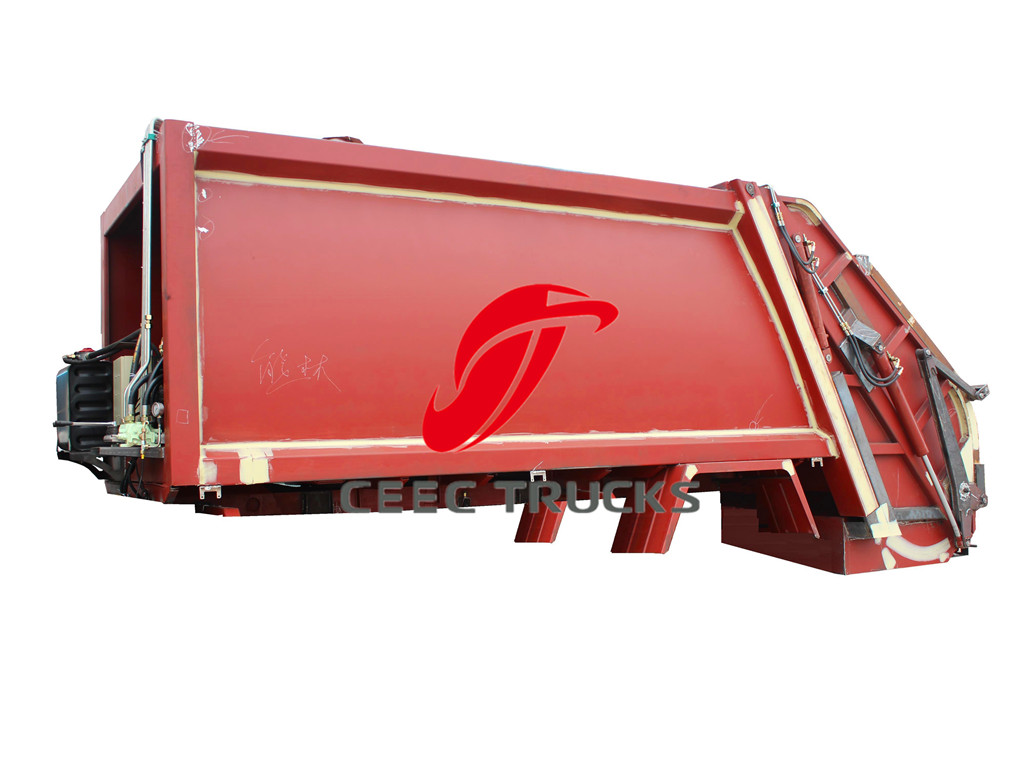

14CBM Compressed truck up-body

2017design 14 CBM refuse compactor truck kit, high strength steel material compactor tanker body, thickness for side and floor over 5mm, top china hydraulic cylinder for good performance, nice structure and better quality 14000Liters compactor truck up-body suggested to be mounted on 4*2 chassis



Recommend Chassis in China:

DongFeng brand: 4*2 & 4*4 model, with LHD and RHD optional

ISUZU brand: 4*2 & 4*4 model, only LHD

Beiben brand: 4*2 & 4*4 model, with LHD and RHD optional

Other brand: SHACMAN, FAW, SINOTRUK, etc


Recommend Chassis in customer country:

Can be refitted on any chassis based on Chassis CAD Drawing, such as ISUZU RHD 10wheel chassis, HINO RHD 6*4 chassis.



14 CBM Compressed truck Up-body



14CBM Compactor truck kit



All main components of the dustbin, shovel and loader are made with high-strength manganese steel, ensuring that they have good structural integrity, are light weight, have good rigidity and high strength.



Gorgeous design with curvatures at both sides and the top give the truck a grand appearance.


Using advanced hydraulic lifting circuit, the truck is safe and reliable. The loader will not collapse even in the event of oil pipe leakage, which improves operational safety.



The dustbin has strong loading capacity supported by a two-way compression technology that can achieve a compaction radio of 1:2.5. The density of refuse after compaction is 600-800km/m3.



Good sealing between the dustbin and loader is provided by custom-made rubber stripes that prevent secondary pollution



What 14CBM refuse compactor truck up body consist of?



Tailgate Assembly

Tailgate manufacturer produce and supply



Push Plate Assembly

Push plate assembly hot sale



Hydraulic Oil Cylinder Assembly

Hydraulic oil cylinder assembly



Waste Water Collection Tanker Assembly

Waste water collection tanker assembly sale



Whole view for other necessary Assembly

garbage compactor kits Assembly



CKD & SKD parts for Garbage Compactor Superstructure as below


Hydraulic Oil Tanker

Hydraulic Oil Pipeline

Side Plate Assembly

Auxiliary Frame

hydraulic oil tanker supplier 80L, 140L, 180L, 220L

Hydraulic Oil Pipeline

garbage compactor body side plate assembly

garbage compactor truck Auxiliary Frame

Push Plate Assembly

Hopper / Tailgate Assembly

Waste Water Tank Assembly

Hydraulic Oil Cylinder

Refuse compactor truck Push Plate Assembly

Trash compactor truck hopper assembly

rubbish compressor waste water collection tank

Hydraulic Oil Cylinder

Pipe Clamps

Hydraulic Pump Bracket

Hydraulic Oil Pipeline

Side Light Unit

Hydraulic Oil Pipeline clamps

Hydraulic oil pump bracket

Hydraulic Oil pipeline

SIde Light
