Product Name

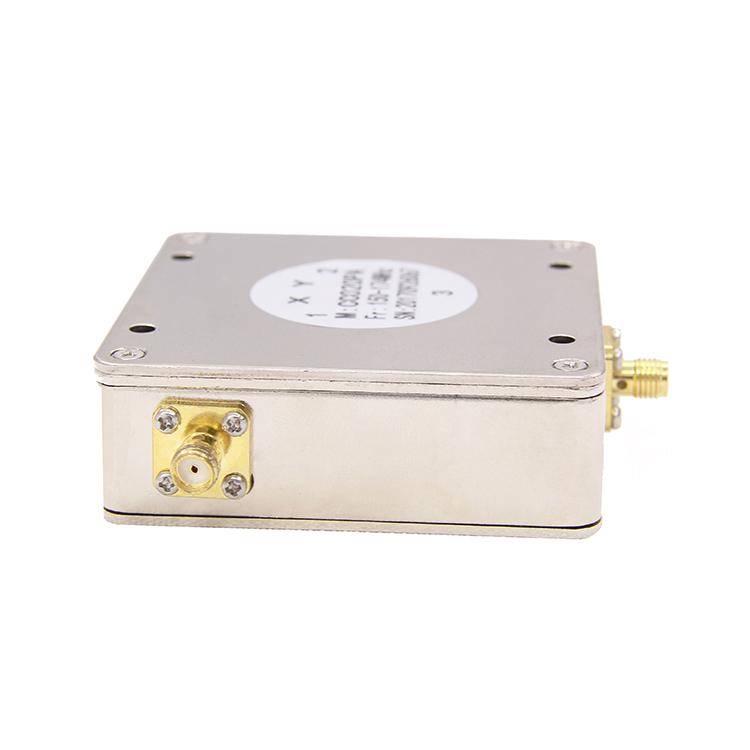

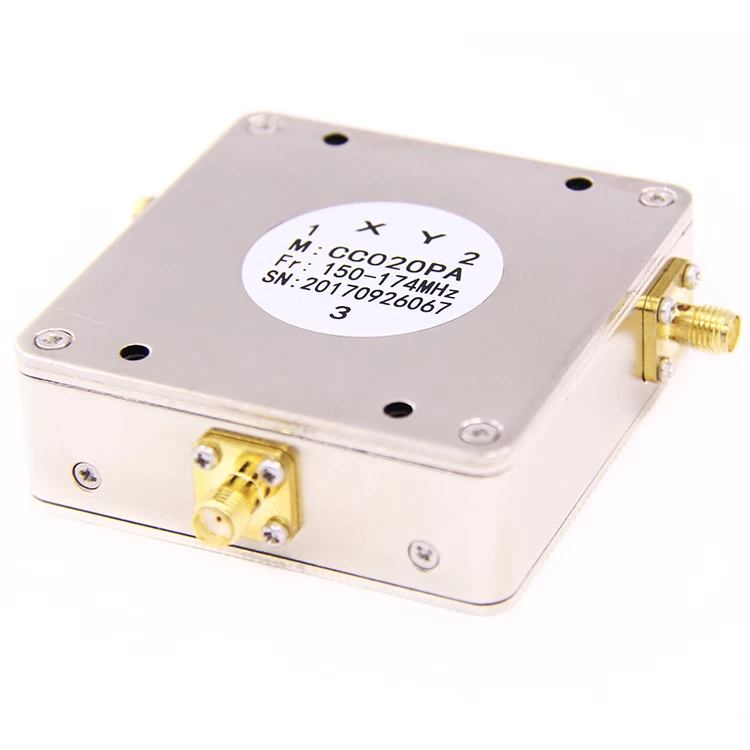

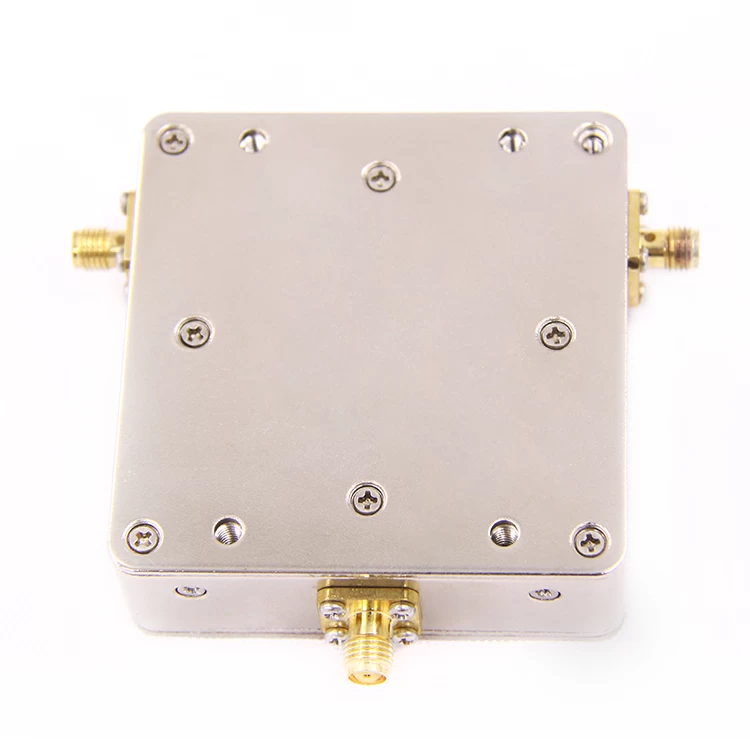

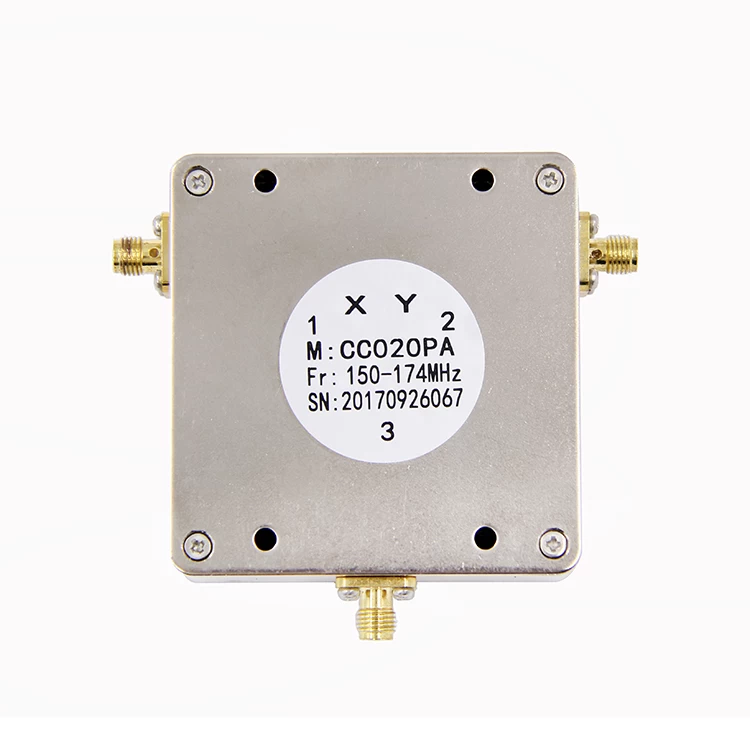

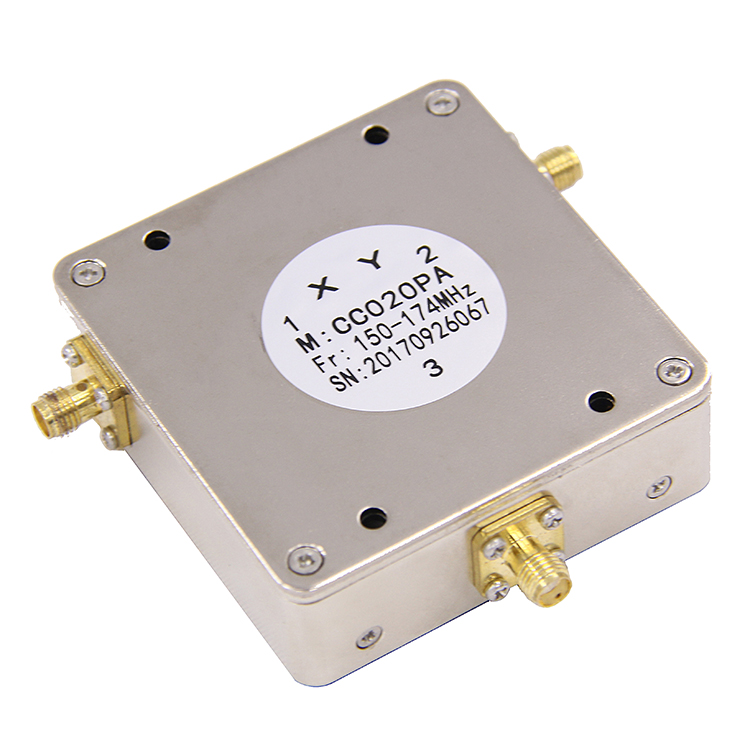

Coaxial Circulator (150-174MHz,SMA-Female,100W)
Product Features
VHF Coaxial Circulator is Wide Frequency Band 150-174MHz,Low VSWR,Low Insertion loss and High Isolation and 150-174MHz Coaxial Circulator is Widely used for Military,Space and Commercial Applications
Technical &Mechanical Specifications
|
Frequncy range (频率)
|
150-174MHz
|
|
Bandwidth (带宽)
|
24MHz
|
|
Insertion Loss (损耗)
|
≤0.8dB
|
|
Isolation (隔离)
|
≥15dB
|
|
VSWR（驻波）
|
≤ 1.30
|
|
Power Rating（通过功率）
|
100W AV
|
|
Operating Temp（温度范围）
|
-30~+70℃:(0.4dB/20dB/1.25)
|
|
Connector Type（连接方式）
|
SMA-Female
|
|
Direction（方向）
|
Clockwise (1→2→3)
|
|
Weight (重量)
|
----
|
|
Remark (备注)
|
----
|

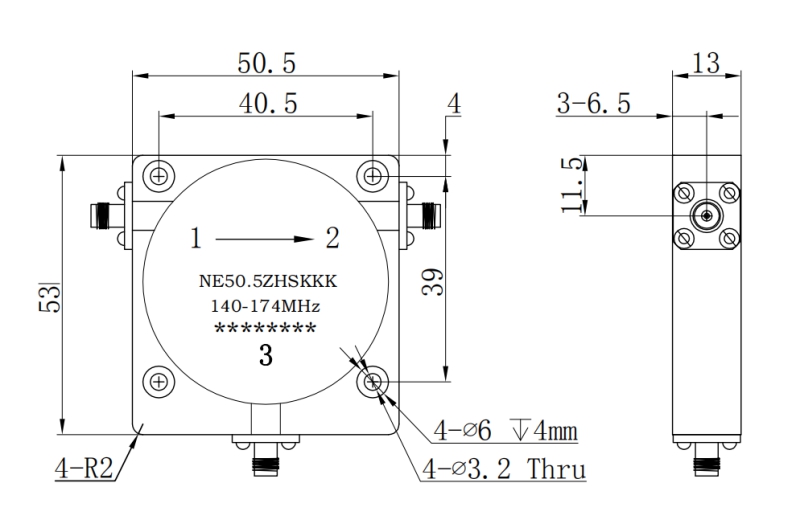

Mechanical Drawing
