Product Name

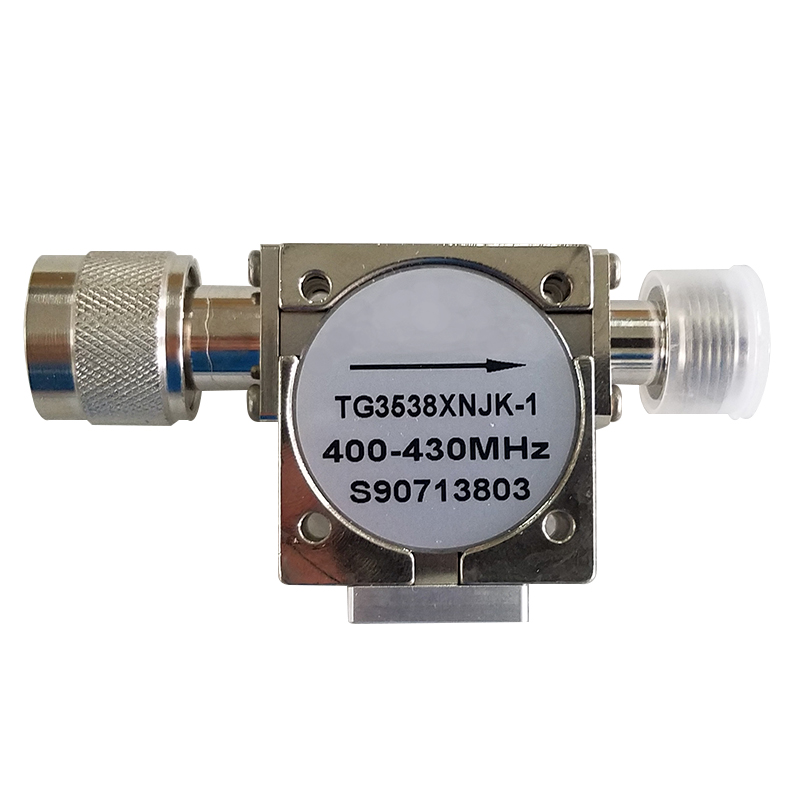

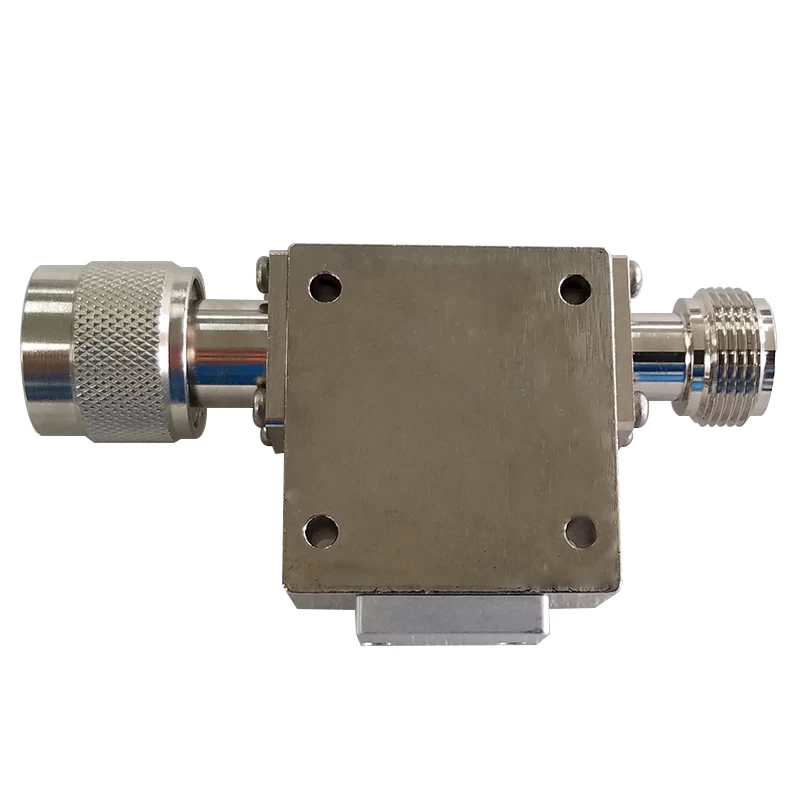

Coaxial Isolator(400-430MHz,N connector type,200W)
Product Features
UHF Coaxial Isolator is Wide Frequency Band 400-430MHz,Low VSWR,Low Insertion loss and High Isolation and 400-430MHz Coaxial Isolator is Widely used for Military,Space and Commercial Applications
Technical &Mechanical Specifications
|
Frequency range (频率)
|
400-430MHz
|
|
Insertion Loss (损耗)
|
≤0.4dB
|
|
Isolation (隔离)
|
≥20dB
|
|
VSWR（驻波）
|
≤ 1.25
|
|
Forward Power（通过功率）
|
200W CW
|
|
Reverse Power（反射功率）
|
20W
|
|
Connector Type（连接方式）
|
N-K/N-J
|
|
Temperature
|
-30~+75℃
|

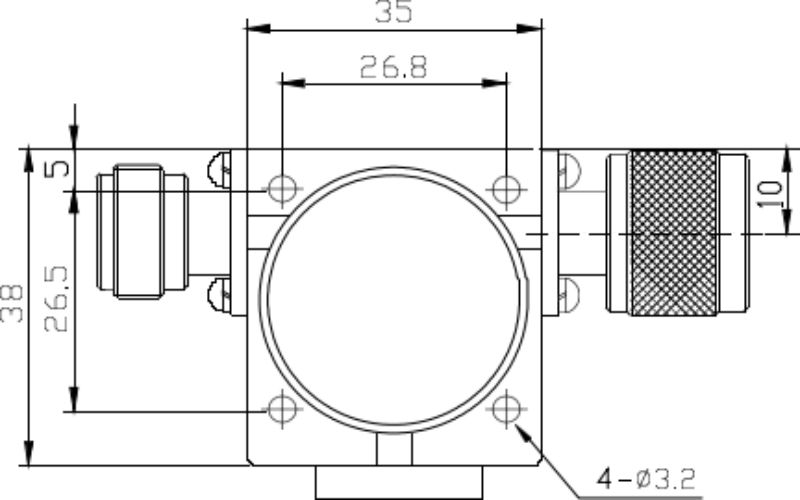

Mechanical Drawing
