150mm Width Adjustable Wet Film Applicator for Lab Coating

150mm Width Adjustable Wet Film Applicator is the nice and cheap tool for lab lithium ion coin cell battery electrode making in coating process.



150mm Width Adjustable Wet Film Applicator for Lab Battery Electrode Coating

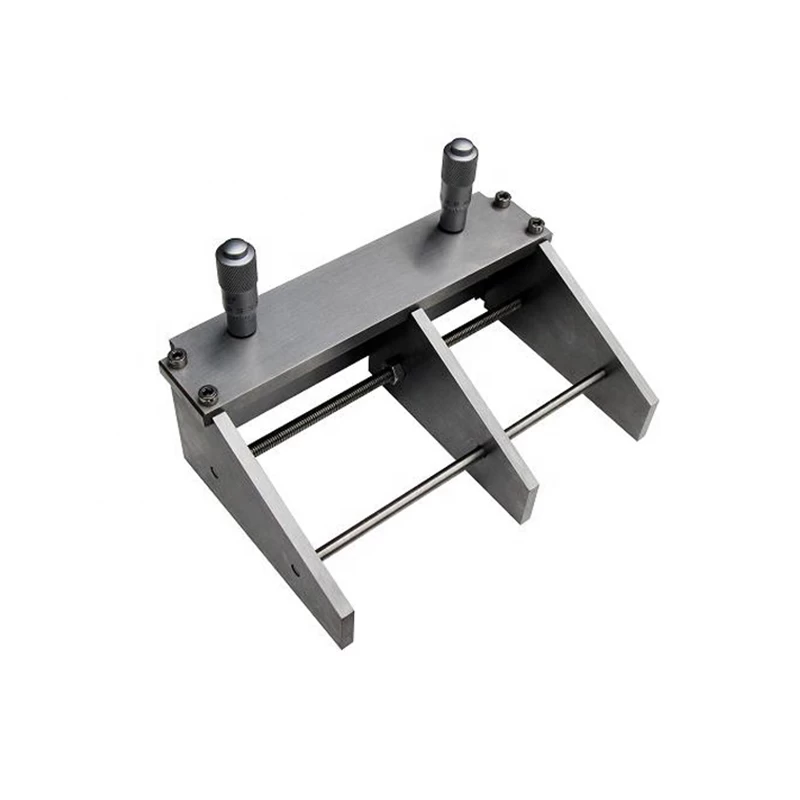

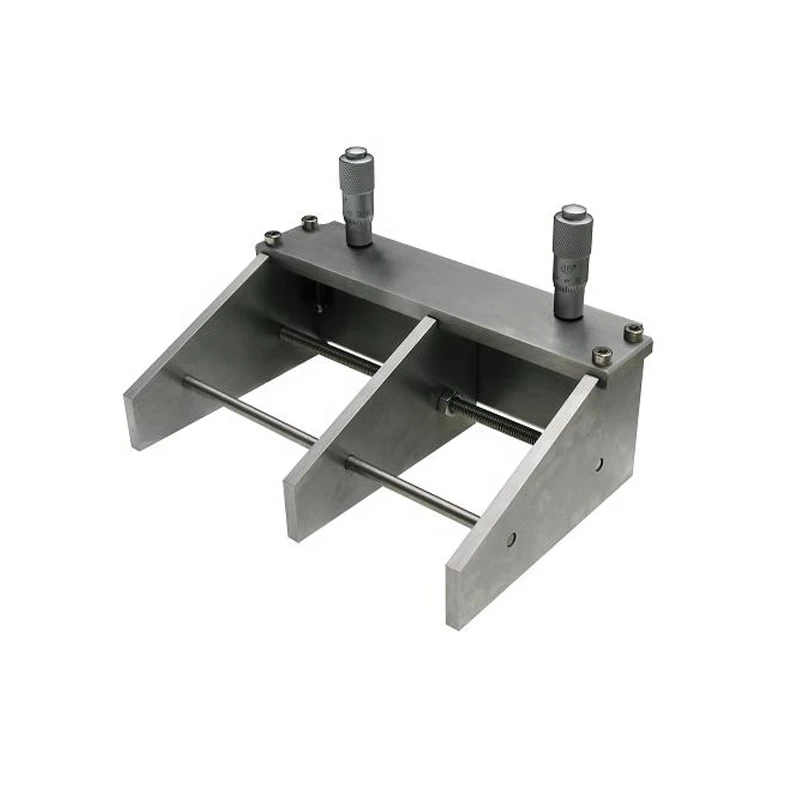

AOT-KTQ-150A This unique wet film applicator features adjustment.for both of thickness and width.


The operator sets the blade clearance by adjusting the micrometers, and sets up film width to be coated by adjusting blade width. This is an excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.


Model

Width Adjustable Film Applicator AOT-KTQ-150A

Width

0 - 150 mm adjustable width.

Wet film thickness

10 - 4500 microns

Micrometer head's controllable accuracy

10 microns

Micrometer Film Applicator with Adjustable Width 150mm Film Casting Doctor Blade

Width Adjustable Wet Film Applicator
