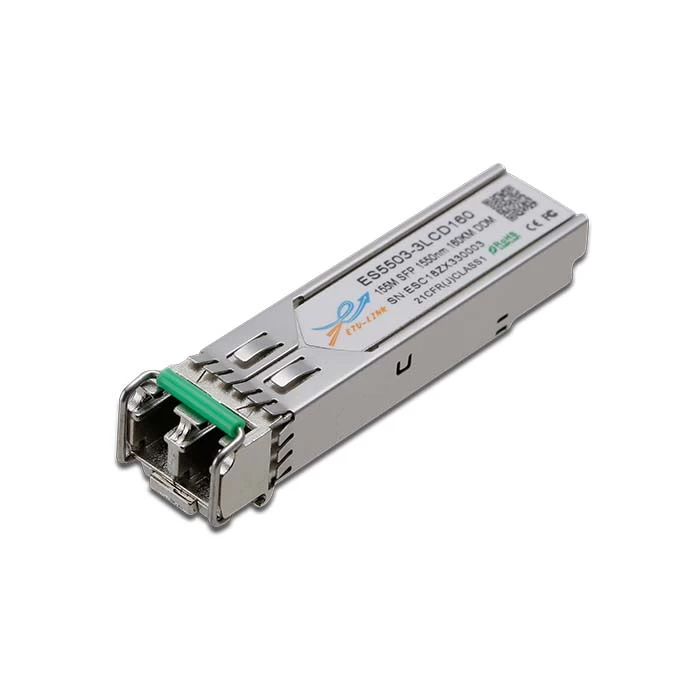

ES5503-3LCD150

155Mbps SFP Optical Transceiver, 150KM Reach

Features

Up to 155Mbps data-rate

1550nm DFB laser and APD photo detector for 150KM transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Digital Diagnostic Monitoring:Internal Calibration or External Calibration

Compatible with RoHS

+3.3V single power supply

Operating case temperature:

Standard : 0 to +70°C

Industrial : -40 to +85°C

Applications

SDH STM-1, S-1.1,L-1.1, L-1.2

SONET OC-3 IR1,LR1,LR2

Other optical links

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 150KM transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, b APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
