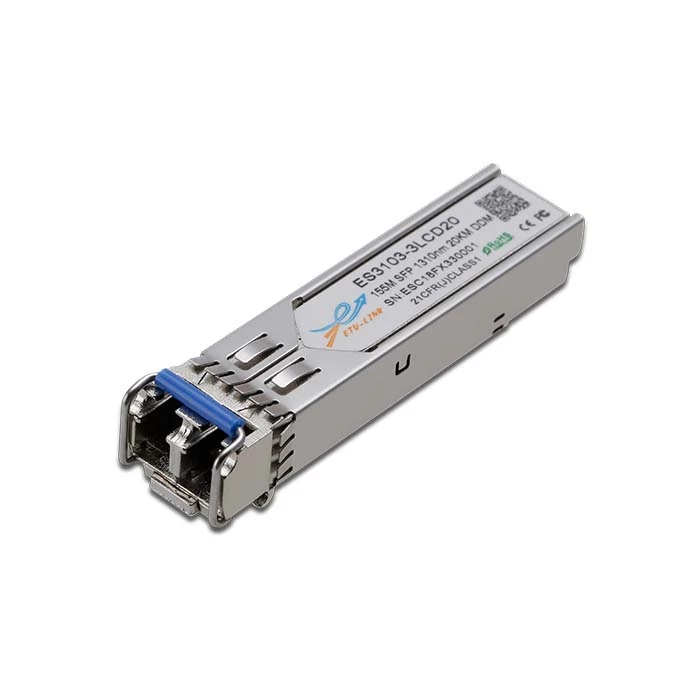

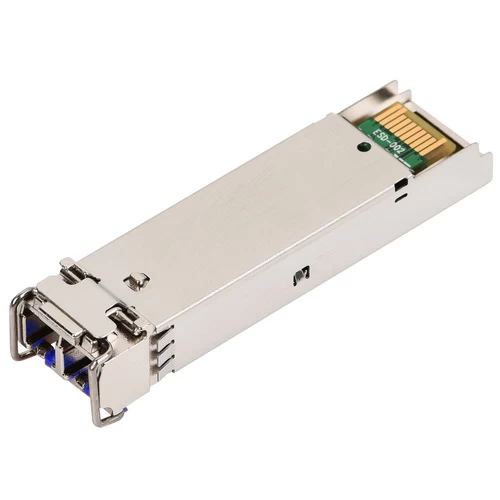

ES3103-3LCD20

155Mbps SFP Optical Transceiver, 20KM Reach

Features

• Up to 155Mbps data-rate
• 1310nm FP laser and PIN photo detector for 20km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring:
• Internal Calibration or External Calibration
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature:Standard : 0 to +70°C
•  Industrial : -40 to +85°C

Applications

• SDH STM-1, S-1.1,L-1.1, L-1.2
• SONET OC-3 IR1,LR1,LR2
• Other optical links

Description

• The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 20km transmission distance with SMF.

• The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

• The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
