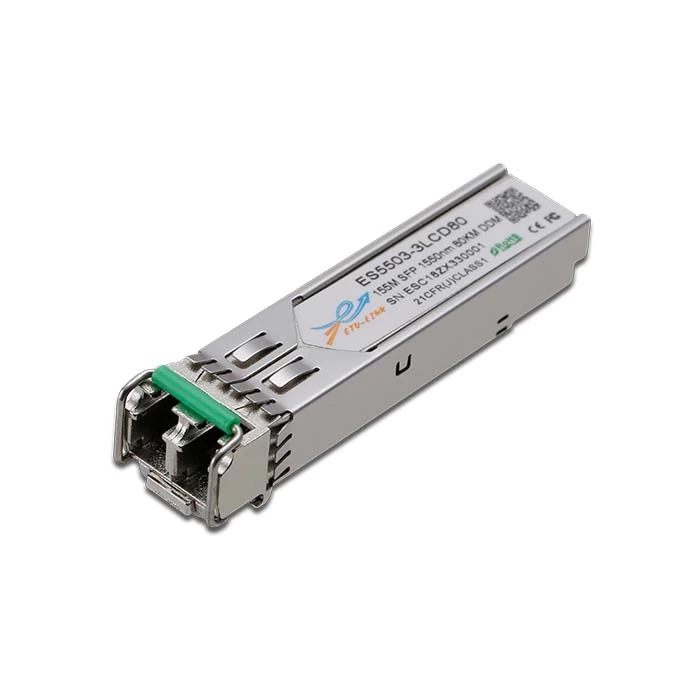

ES5503-3LCD80
155Mbps
SFP Optical Transceiver, 80KM Reach
Features
Up to 155Mbps data-rate
1550nm DFB laser and PIN photo detector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
SDH STM-1, S-1.1,L-1.1, L-1.2
SONET OC-3 IR1,LR1,LR2
Other optical links
Description
The SFP transceivers are high performance, cost
effective modules supporting data-rate of 155Mbps and 80km transmission
distance with SMF.
The transceiver consists of three sections: a DFB
laser transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class I laser
safety requirements.
The
transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
For further information, please refer to SFP MSA.
