15T Lab Hydraulic Cold Isostatic Press With 22mm ID Vessel

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Certificate CE, IOS, ROHS, SGS, UL Certificate
  • WarrantyOne year limited warranty with lifetime technical support

15T Lab Hydraulic Cold Isostatic Press With 22mm ID Vessel

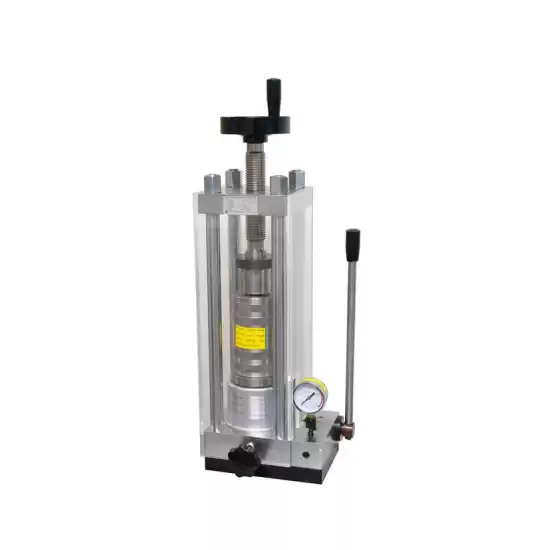

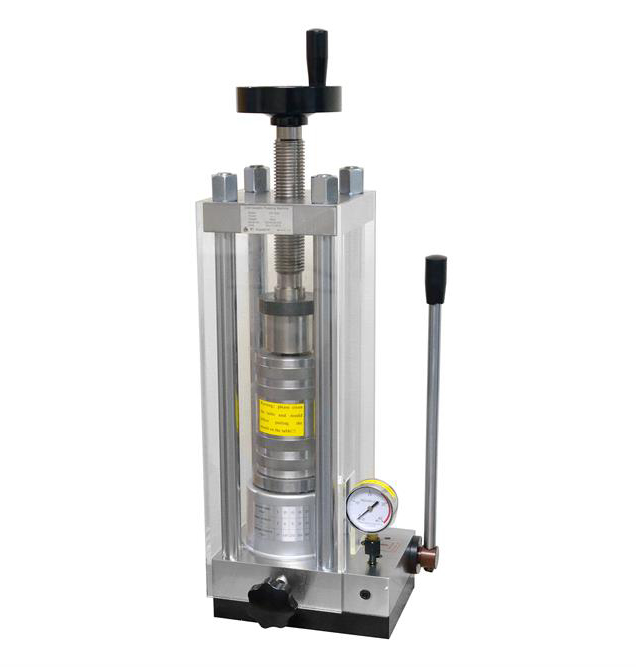

YLJ-CIP-15 is a CE Certified and the smallest cold isostatic pressing (CIP) in the world.  It has a 22mm ID hydraulic chamber made by ultra strength alloy, which can provide isostatic pressure up to 300 Mpa via a 15T hydraulic press.  It is an excellent tool to prepare high-density compound pellet and small diameter rod.  CIP-15 has the small footprint and can be placed in glove-box to prepare air-sensitive materials.  A plastic protection cover is included.


Specification

Pressure Vessel

22mm ID. x 90mm Height

max available sample height 70mm

Made of high strength alloy with stainless steel protective jacket

Max. Hydraulic Pressure in Chamber

300 Mpa ( 43500 PSI)

Gauge Pressure Value to
Force Conversion

Gauge Displayed Pressure Value (Mpa) for 87 mm Dia. Hydraulic Press

5

10

15

20

Actual Force Applied on the Hydraulic Press (Ton)

3

6

9

12

Pressure Applied to CIP Vessel ( Mpa) vs 22mm vessel cylider

77

155

232

310

Notes:

The actual force applied on the Vessel Cylinder (Ton) equal to the force applied to your working piece

For calculating the actual pressure (Mpa) applied on your working piece, please follow the equations in below:

P = T/πr^2 x g x 10

P: Pressure (Mpa) applied on your working piece

T: Force (metric ton) Applied on the Pressure Vessel Cylinder

g: Standard gravity. g 9.8 m/s2

π: ~3.14

r: Radius (cm) of the Pressure Vessel (1.1 cm)

1000 Kg = 1 Metric Tone; 1 Mpa  10 Kg/cm2

Hydraulic Machine

15T

Botton Cylinder Traveling Distance

20mm maximum

Operation Temperature

10 - 40°C

Dimension of Working Space


 D1: 100mm   D2: 85mm   D3: 90mm
 H1: 310mm       H2: 290mm

Overall Dimension
(including 15T Presser)

270mm (W) x 240mm (D) x 660mm (H)

Net Weight

 100 Lbs

Compliance

 CE Certified

Warranty

 Two years limited warranty with lifetime support

Application Notes

You may use the liquid rubber to seal the sample to be CIP

You may use the machine as a dry pressing to order pressing die

Warning

Never let the press hold the target pressure be longer than 8 minutes,

It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period.

Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing

Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (20mm)

Packing List:



Name

Qty

1

Main machine (15T Electric hydraulic pressing machine)

1 unit

2

Cold isostatic pressing dies (locating plate, top and bottom pressing die)

1 set

3

Seal kits

1 set

4

Black Rubber Rings O.D 7/8"

3 pcs

5

Pushing Rod Handwheel

1 pc

6

Hydraulic pressing oil

1 bottle

7

Socket Head Screw Driver

 1 pcs




Product Images



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace
