16 T north benz truck mounted crane manufacturer
The technical parameters of 16ton truck mounted crane
| Main Technical Parameter
|
| Product Name
|
Truck with Crane
|
Gross Vehicle Weight (kg)
|
25000
|
| Curb Weight (kg)
|
15300
|
Rated Payload(kg)
|
9570
|
| Overall Dimension(mm)
|
11586x2500x3500
|
Cargo inner dimension
|
7700x2300x500
|
| Max Lifting Capacity
|
16,000kg at 2.5m
|
Cab Allowed Persons
|
2
|
| Axle No.
|
3
|
Wheelbase (mm)
|
5650+1450
|
| F/R Suspension(mm)
|
1410/3076
|
Axle Load(kg)
|
7000/18000(parallel installed)
|
| App/Dep Angle(º)
|
26/15
|
Max Speed(km/h)
|
90
|
| Chassis Technical Parameter
|
| Chassis Name
|
Truck Chassis
|
Chassis Brand
|
North Benz
|
| Overall Dimension (mm)
|
11425×2495×3180
|

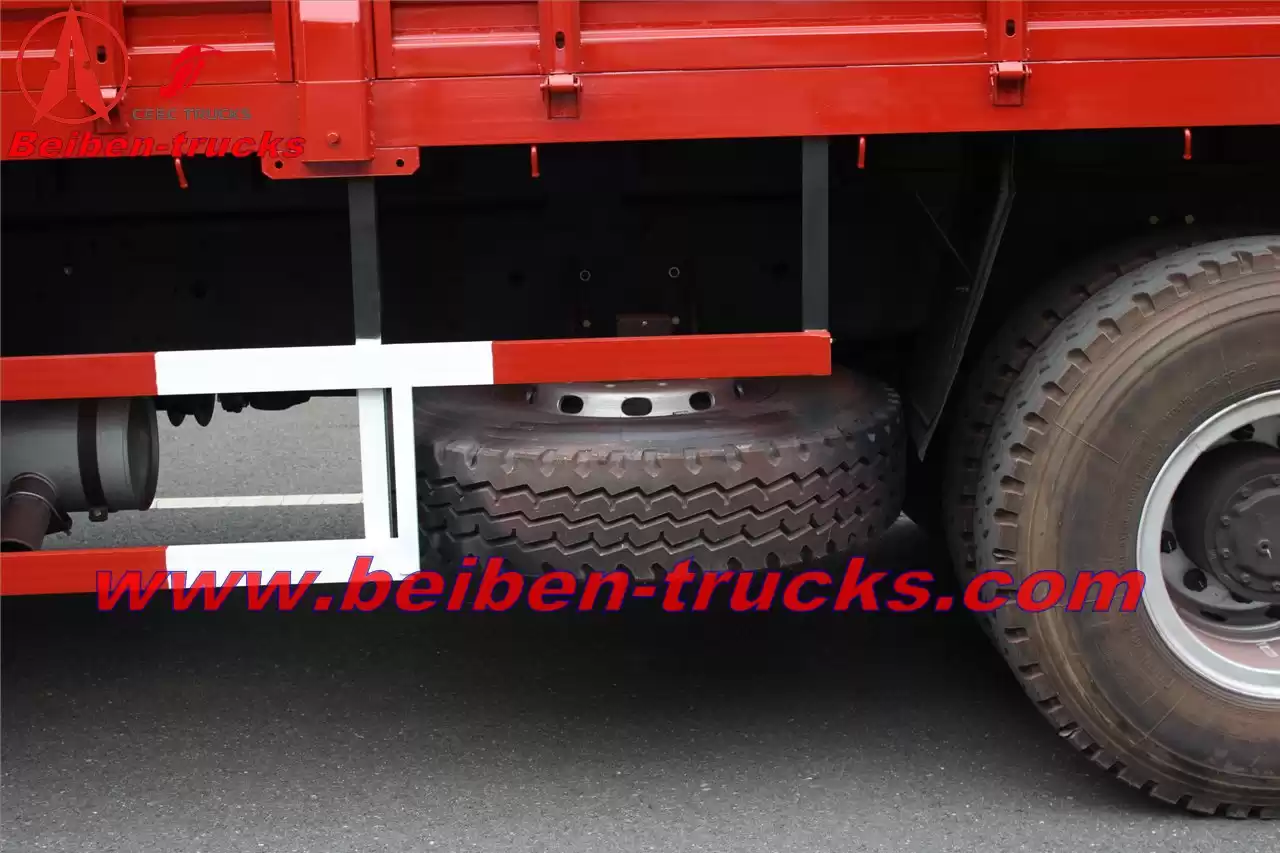

Tyre No.
|
10 with 1 spare tyre
|
| App./ Dep. Angle(º)
|
26/17
|
Tyre Spec.
|
12.00-20
|
| Leaf Spring No.
|
13/13
|
Front Track (mm)
|
1995
|
| Fuel Type
|
Diesel
|
Rear Track (mm)
|
1800/1800
|
| Drive Type
|
6x4
|
Brake System
|
Air brake
|
| F/R Suspension(mm)
|
1410/2915
|
Axle Load(kg)
|
7000/18000(parallel installed)
|
| Engine Technical Parameters
|
| Engine Model
|
WP10.290
|
Emission Standard
|
Euro III
|
| Power
|
213kw/290hp
|
Displacement(ml)
|
9726
|
| Superstructure Parameters
|

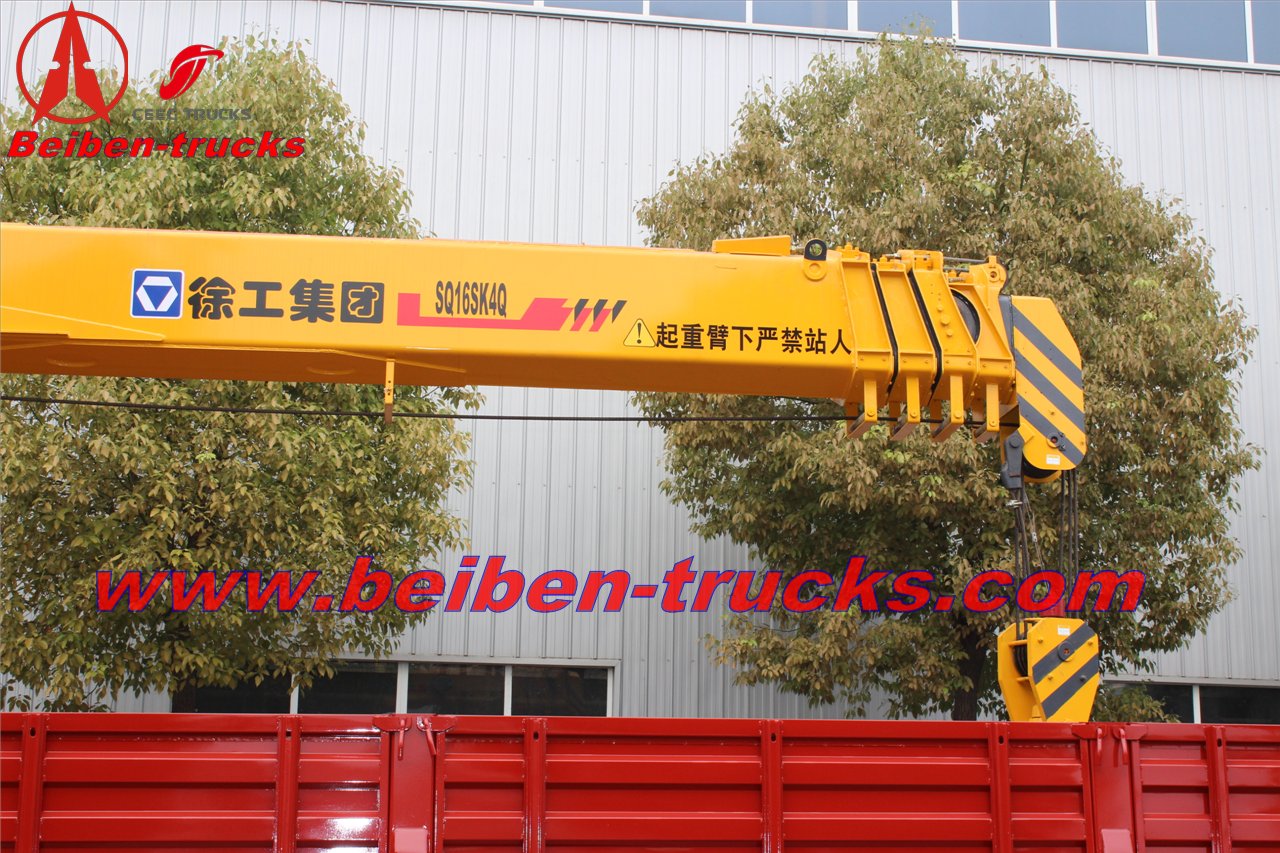

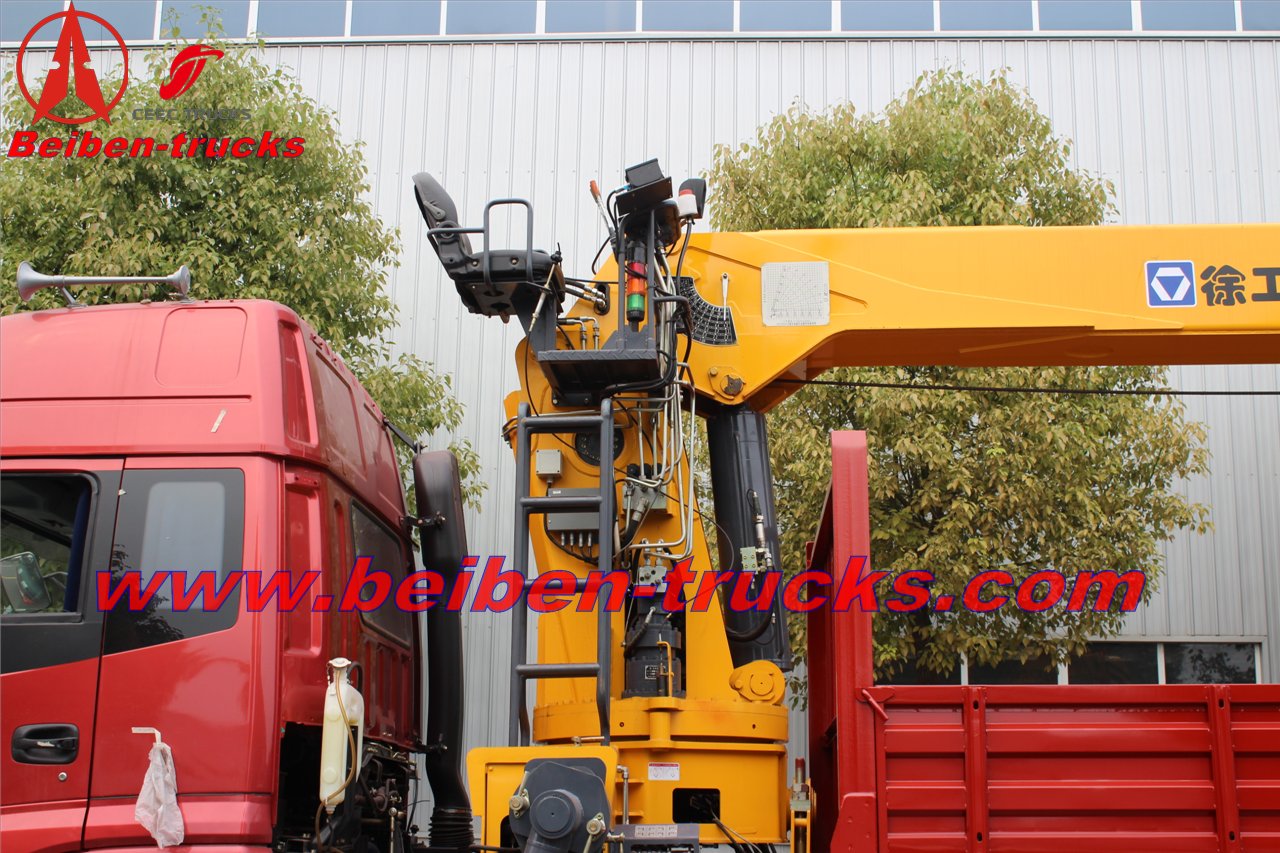

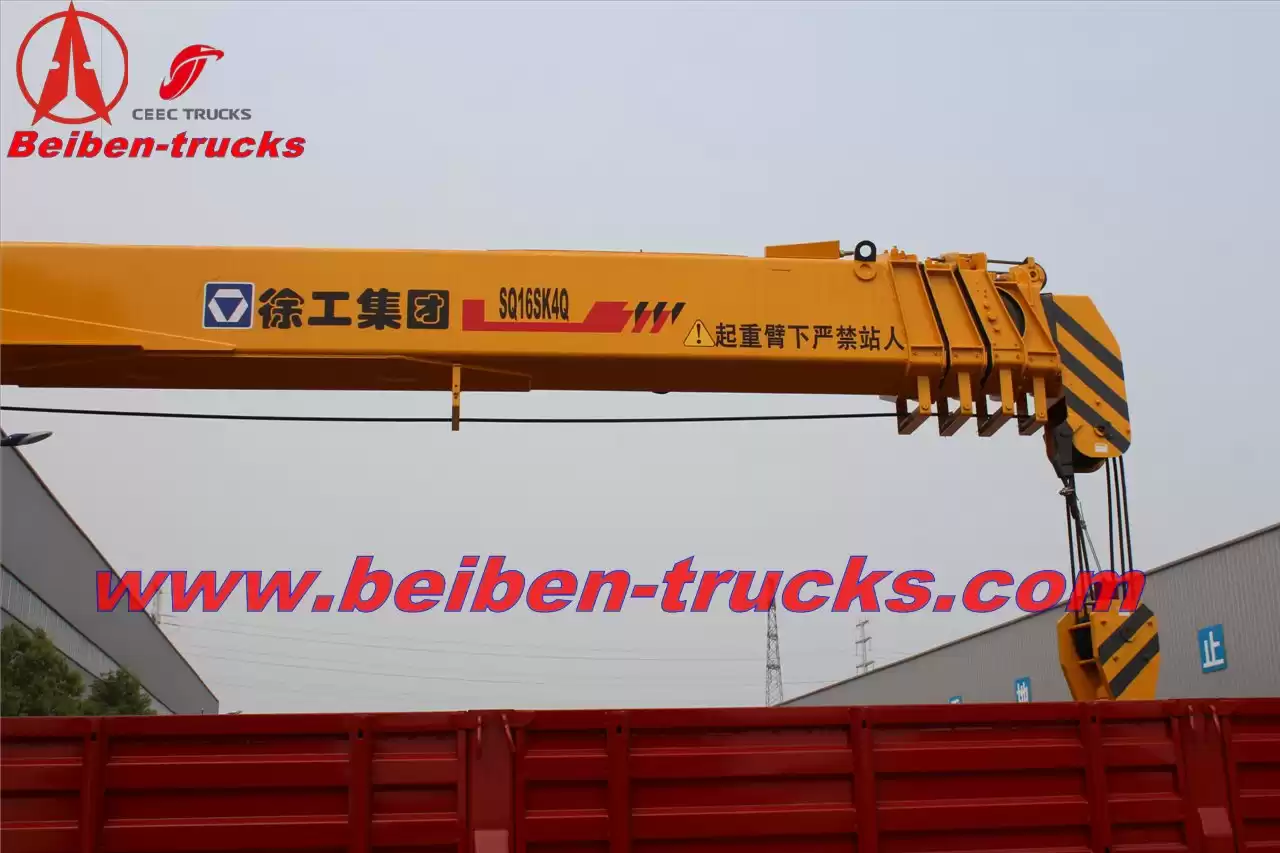

| Crane Type
|
Knuckle boom crane
|
Max lifting weight(kg)
|
16000
|
| Max lifting height(m)
|
15.5
|
Oil Tank Volume(L)
|
250
|
|
|
|
|
|
