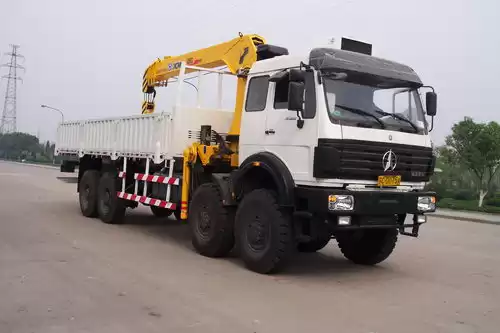

Durable Beiben 16Ton Knuckle Truck Mounted Crane For Heavy Things Lifting
| Sales No.
|
3134P
|
| Dimension（mm)
|
Long
|
11886
|
|
Wide
|
2500
|
|
High
|
3240
|
| Wheel base（mm）
|
1500+4450+1450
|
| Drive
|
8×4
|
| Engine
|
Model
|
WP10.340E32/WP10.336N
|
| Cabin
|
NG80B/ Long Cab
|
| Clutch（mm）
|
Φ430
|
| Front Axle
|
7.5T
|
| Rear/Mid Axle
|
Model/speed radio
|
Double Reduction Driving Axle /5.263
|
| Steering System
|
ZF8098
|
| Braking System
|
Dual Circulation Air Brake System
|
| Fuel Tank（L）
|
400L
|
| Frame/mm
|
317×70×8.5+7
|
| Tire
|
12.00R20
|
| Front/Rear Overhang
|
1410/3076
|
| Transmission
|
Fuller 12JS160T
|
| Curb Weight（kg)
|
13100
|
| Max loading Weight(kg)
|
17770
|
| Max Speed（km/h)
|
85
|
