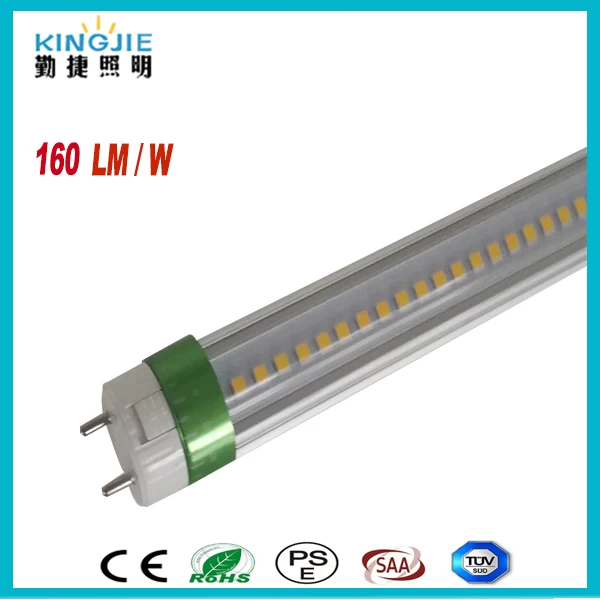

160LM/W 30° 60°small beam angle LED Tube

small beam angle LED Tube,super lumen used for projects with super high lux



1Up to 181LM/W used for projects with super high lux, warehouse,supermarket, exhibitation,shelves,etc

2Small angle,more brighter: 30°/ 60° /90° /120°   0.6M 0.9M 1.2M 1.5M

3Adjust Angle: with Rotatable or non-rotatable cap

4Widely usageReplacement for T8/T6/T5 fluorescent tube light or linear light

5High PF value over 0.9 for decrease of electricity loss
6High quality PCB for good heat dissipation
7No flicker,no delay, Instant on/off


Model
Size (mm)
Watt
Input Voltage
SMD LED
Material
PF
CRI Cap Beam Angle Light efficiency
T8-60CM-10W-S
φ26*588
10w AC85-265V
SMD2835
6063 aviation Aluminum+ optical lens cover
>0.92
>80
G13 & G5,rotatable cap optional         30°/60° /90° /120°
160LM/W
T8-120CM-18W-S
φ26*1198
18w
AC85-265V
SMD2835
6063 aviation Aluminum+ optical lens cover
>0.92
>80
G13 & G5,rotatable cap optional
30°/60° /90° /120°
160LM/W
T8-150CM-25W-S
φ26*1498
23w AC85-265V
SMD2835
6063 aviation Aluminum+ optical lens cover
>0.92
>80
G13 & G5,rotatable cap optional
30°/60° /90° /120°
160LM/W




Warning: Switch off power supply BEFORE COMMENCING WORK!


Step1. Remove the fluorescent lamp.

Step2. Cut off all wires which connected to inductive ballast or electrical ballast.



Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to  the label on the tube.




Step 4.Switch on power.

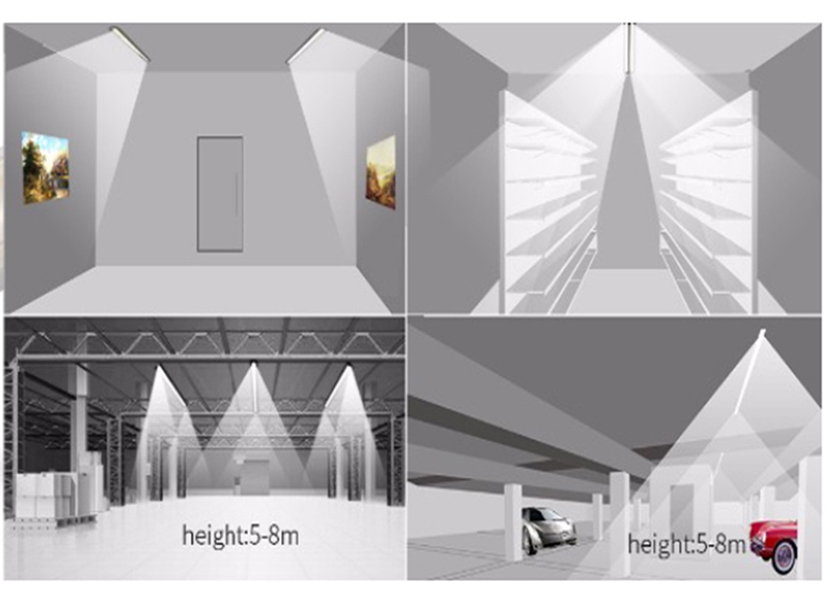

Perfect Used for projects with super high lux, warehouse,supermarket, exhibitation,shelves etc
