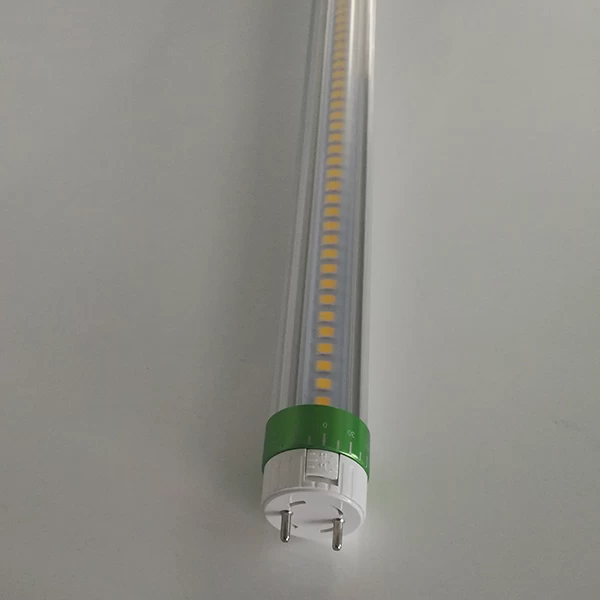

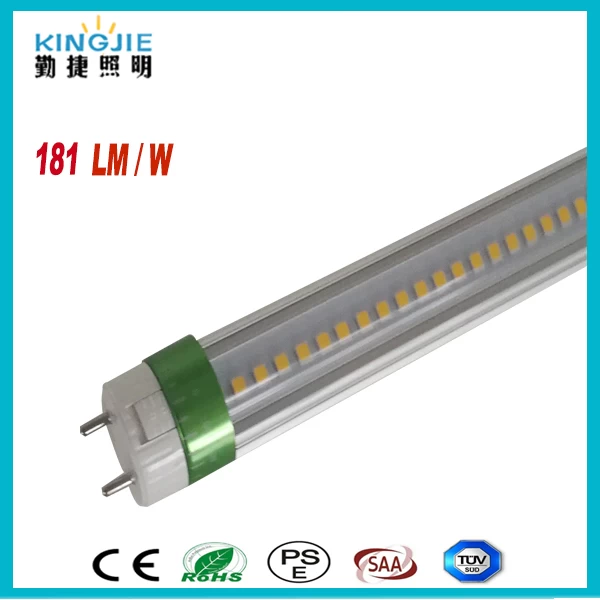

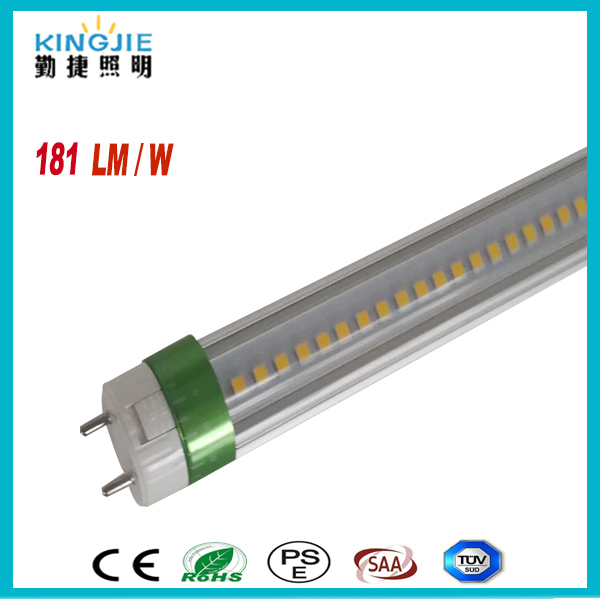

1、Up to 181LM/W used for projects with super high lux, warehouse,supermarket, exhibitation,shelves,etc

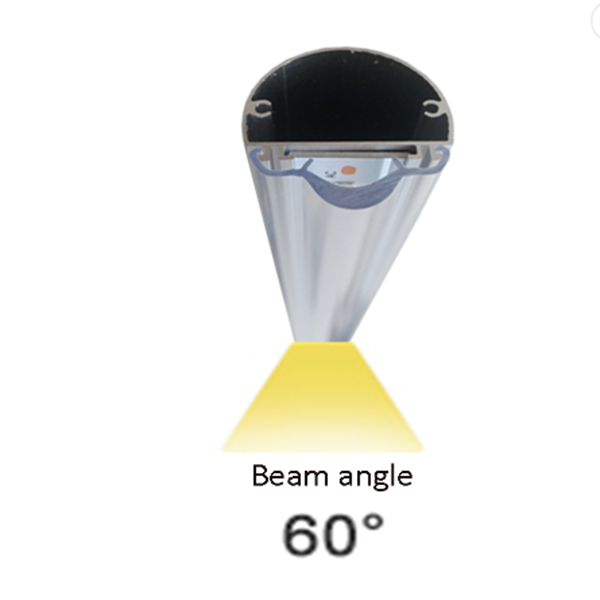

2、Small angle,more brighter: 30°/ 60° /90° /120° 0.6M 0.9M 1.2M 1.5M
3、Adjust Angle: with Rotatable or non-rotatable cap
4、Widely usage: Replacement for T8/T6/T5 fluorescent tube light or linear light
5、High PF value over 0.9 for decrease of electricity loss
6、High quality PCB for good heat dissipation
7、No flicker,no delay, Instant on/off
Model
|
Size (mm)
|
Watt
|
Input Voltage
|
SMD LED
|
Material
|
PF
|
CRI
|
Cap
|
Beam Angle
|
Light efficiency
|
T8-60CM-10W-S
|
φ26*588
|
10w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ optical lens cover
|
>0.92
|
>80
|
G13 & G5,rotatable cap optional
|
30°/60° /90° /120°
|
181LM/W
|
T8-120CM-18W-S
|
φ26*1198
|
18w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ optical lens cover
|
>0.92
|
>80
|
G13 & G5,rotatable cap optional
|
30°/60° /90° /120°
|
181LM/W
|
T8-150CM-25W-S
|
φ26*1498
|
23w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ optical lens cover
|
>0.92
|
>80
|
G13 & G5,rotatable cap optional
|
30°/60° /90° /120°
|
181LM/W
|
Warning: Switch off power supply BEFORE COMMENCING WORK!
Step1. Remove the fluorescent lamp.
Step2. Cut off all wires which connected to inductive ballast or electrical ballast.
Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to the label on the tube.
Step 4.Switch on power.
Perfect Used for projects with super high lux, warehouse,supermarket, exhibitation,shelves etc
