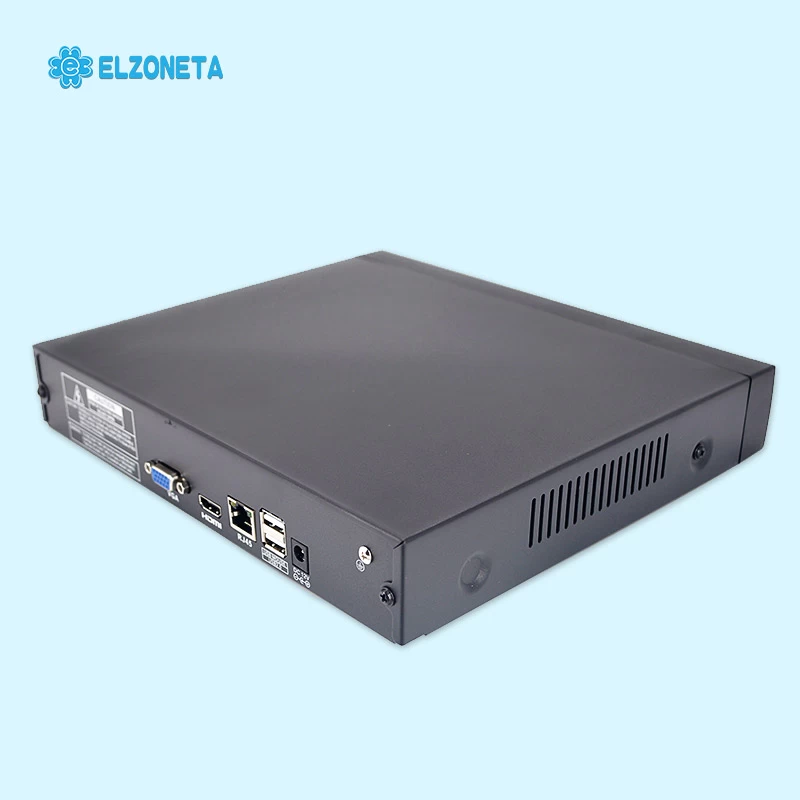

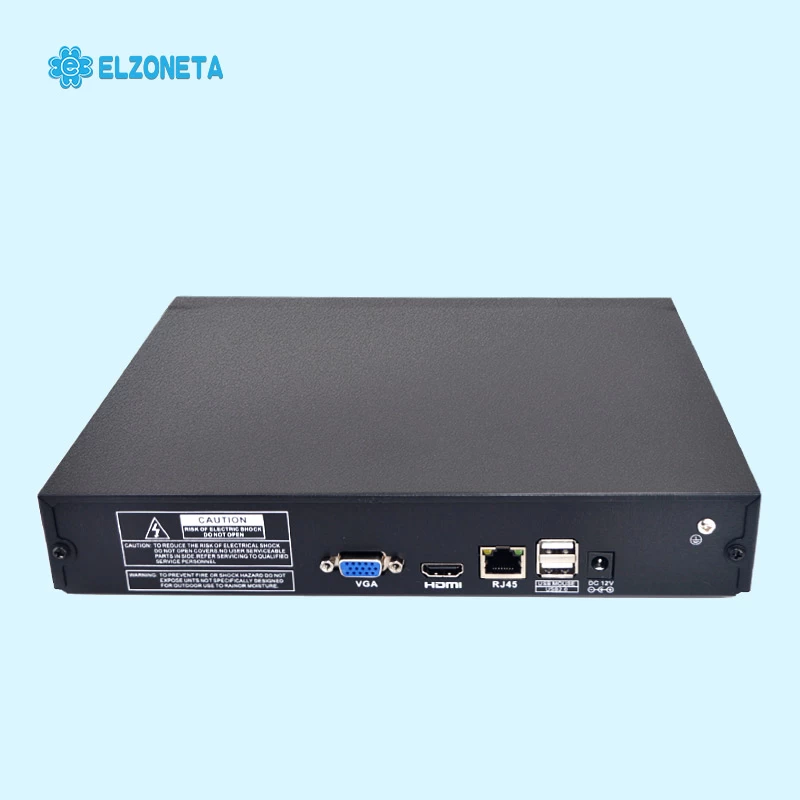

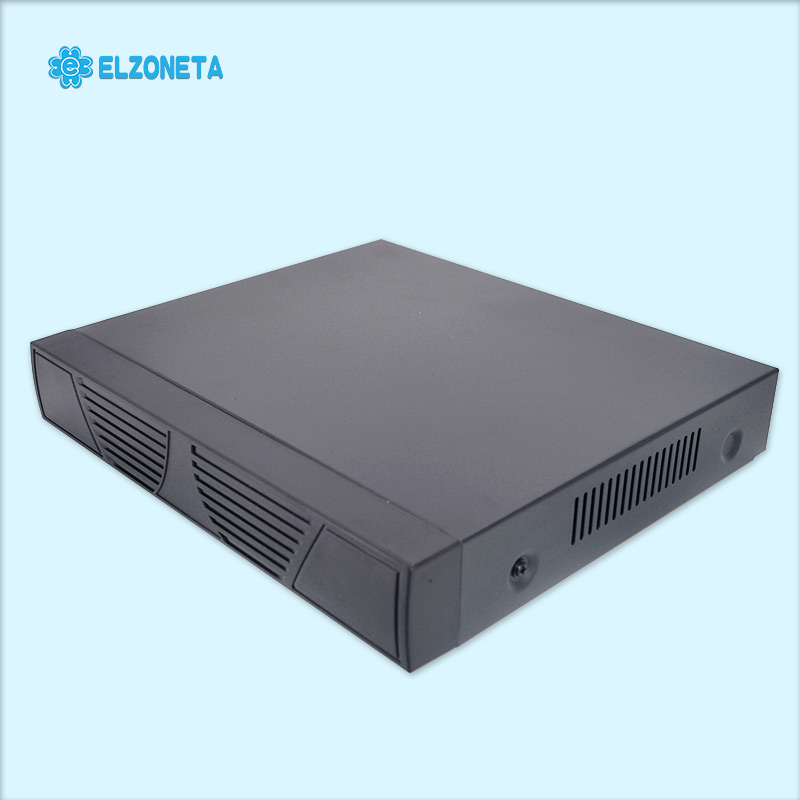

EC-N516 16CH 4K IP NVR
EC-N516 16CH H.265 NVR is the newest and most popular technology in security system nowadays. It can connect to 16 cameras or AP in the same time so that you can monitor everywhere.
Specifications
System Structures
Main Processor:Hi3798M
Operating System:Embedded LINUX
Video Input
IP video input:16-CH
Incoming bandwidth:76Mbps
Video Output
HDMI output resolution:1CH HDMI, 4K(3840×2160)/30Hz,1920×1080,1440×900,1366×768,1280×1024,1280×800,1024×768
VGA output resolution:1CH VGA, 1920×1080,1440×900,1366×768,1280×1024,1280×800,1024×768
Multi-screen Display:1/2/4/6/8/9/16
Decoding
Compression:Support H.265 / H.264
Recording Resolution:720P/960P/1080P/3MP/4MP/5MP/4K
Synchronous playback:4CH 1080P or 2CH 4MP or 1CH 4k
Audio
Standard G.711, support audio recording, HDMI audio output
Storage
Internal HDD:1 SATA port, up to 8TB capacity for each
Record mode:Support regular recording and motion detection recording
Backup:Support USB storage device to back up
Users Management
Max. user access:16
Network
Interface:1 RJ-45 Port (10/100Mbps)
Network function:HTTP, TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP etc.
Auxiliary interface:2 USB Ports (2 USB2.0)
Environmental
Operating temperature:-10 to +55℃
Operating Humidity:10 to 90%
Electrical
Power supply:DC +12V/4A
Power consumption:≤12 (without HDD)
Construction
Dimensions:335×245×55mm (W*D*H)
Weight:about 1711g (without HDD)
Guarantee
Product Guarantee:2 years
