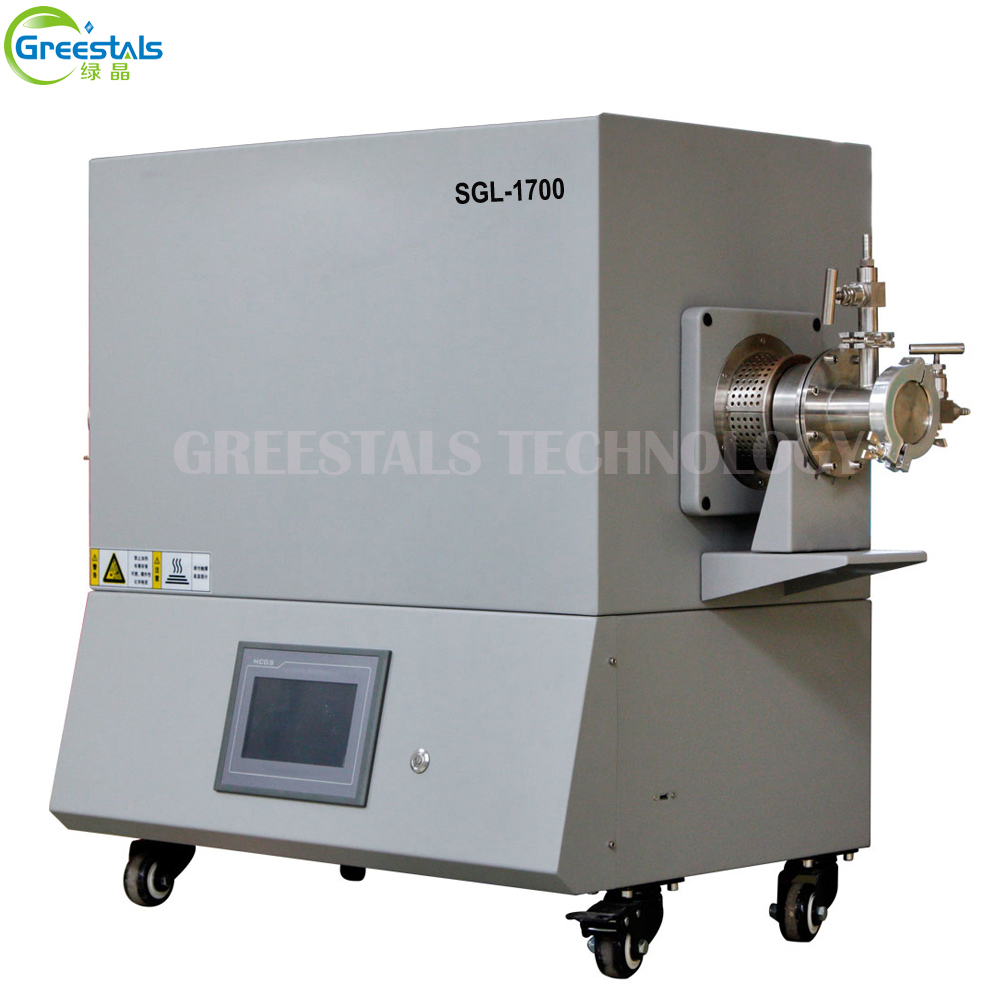

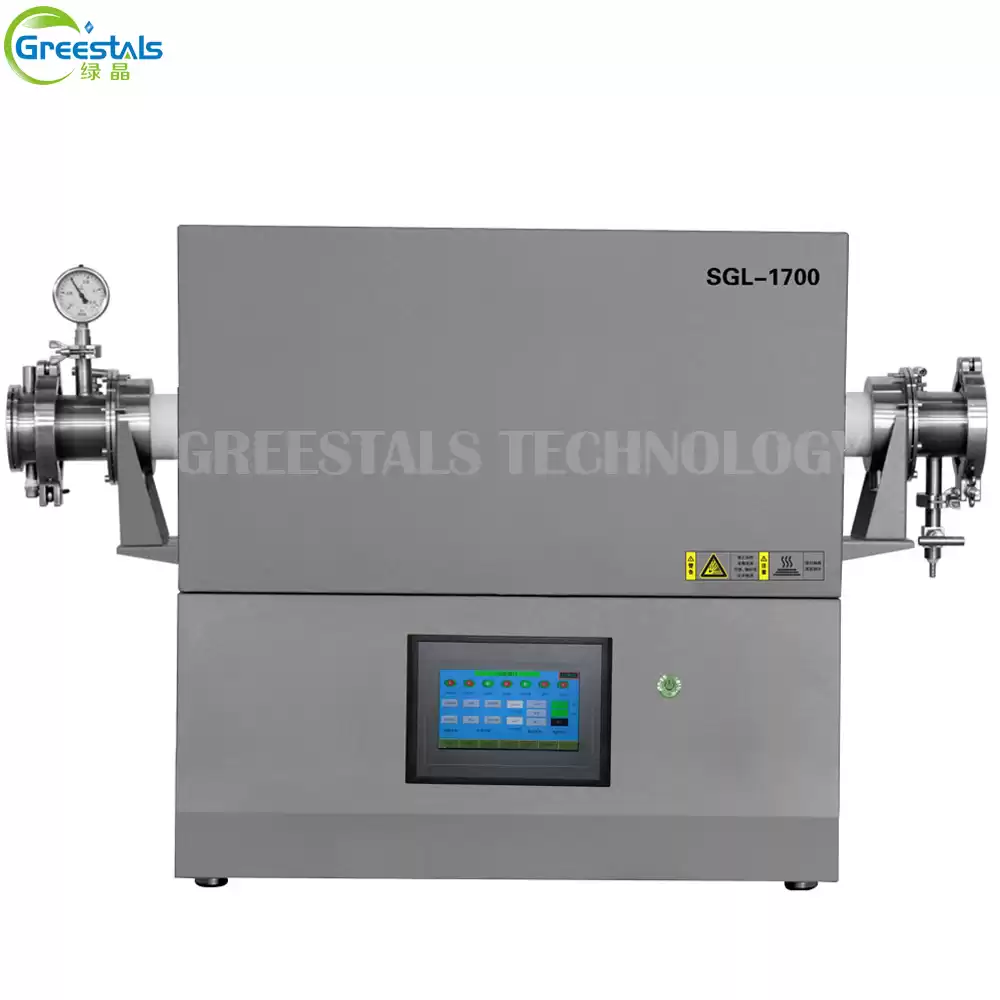

1700℃ Touch screen model Vacuum Tube electric lab furnace

Vacuum tube electric lab furnace is adopted touch screen control system, all the operations can be achieved by touch screen


  • Max Temperature1650℃
  • Furnace Tube SizeDia40 60 80 100mm *1000mm
  • Heating Zone Size410mm

Vacuum tube electric lab furnace is adopted touch screen control system, all the operations can be achieved by touch screen. Graphic Interface, easy operation. Also double shell structure and intelligent program temperature control system, phase trigger, SCR control. Furnace chamber adopted imported polycrystalline alumina fiber material, between the double furnace shell with air cooling system, fast heating and cooling, and can open the lid for rapid cooling. Reasonable structure, beautiful appearance.


Main function & Features:

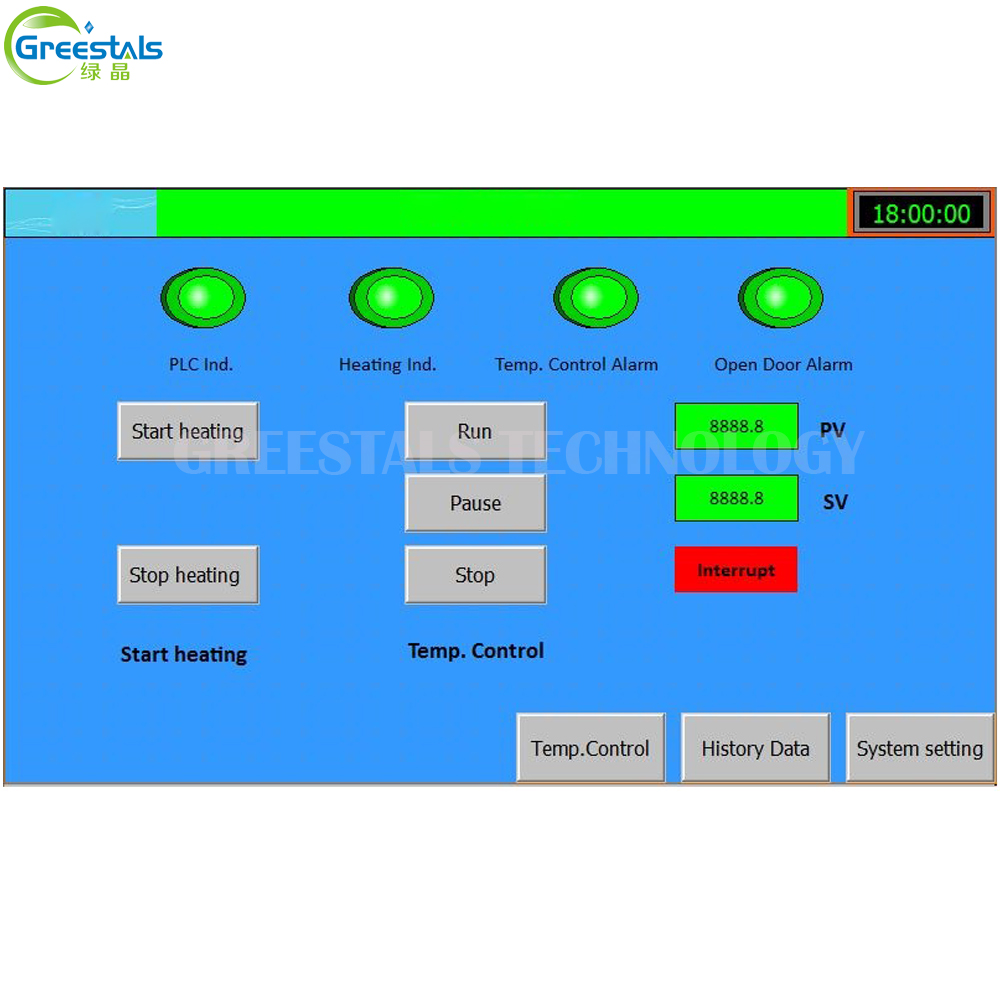

1. With 7 inch touch screen, graphic interface easy operation; All the experiment data can be exported through USB interface (all the heating curve can be screenshots and export to a U-disk), easy for long time save experiment data.

2. Experiment data can copy to computer by U-disk through USB interface. And can be save as Excel format.

3. Adopted KF quick flange sealing, only need a clamp flange the connection can be done. It is very convenient to put and take the specimen. Avoiding bolt leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges.

4. Adopt imported polycrystalline fiber vacuum absorption furnace chamber

5. Reserved vacuum, gas road fast interface, could working with our vacuum system or mixed gas system.

6. The temperature control system uses artificial intelligence technology, with PID control, self-tuning function

7. Temperature control accuracy: ±1℃

8. Heating rate: Recommend 10℃/min, Max. 30℃/min

5. Built - in thermocouple, real-time monitoring the temperature of the heated material.

6. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output.

7. Over temperature will alarm and cut off power supply automatically, also with leakage protect function, operation more safety.


Main applications:

Used for universities, research institutions, industrial and mining enterprises to do high temperature sintering atmosphere, atmosphere restoring, CVD experimental and vacuum annealing.

Model

SKGL-1200

SGL-1400

SGL-1700

Tube Size

(OD*L, mm)

40/60/80/100*800

60/80/100*1000

60/80/100*1000

Rated power(KW)

3.5

6

8

Heating zone length

410mm

280mm

360mm

Constant temperature

heating zone length

200mm

120mm

130mm

Tube material

Quartz tube

Alundum tube

Alundum tube

Heating Element

Swedish Kanthal0Cr27Al7Mo2

Alloy wire

silicon carbide rod

silicon molybdenum rod

Thermocouple

Omega brandN mode

S mode

B mode

Max. Temperature

1150℃

1350℃

1650℃

Continous Working

Temperature

1100℃

1300℃

1600℃

Program Segments

30

50

50

Furnace structure

Open type

Non-open type

Non-open type

Flange

Stainless steel KF Extrusion flange

Stainless steel KF flange

with water cooling system

Standard Accessories:

Sealing flange1 pc, O-rings 4 pcs, Tube 1 pc, Pipe plug 4 pcs, Crucible hook 1 pc


Optional accessories:

Furnace frame; Mixed gas system; Low, medium and high vacuum system; crucibles; tube, Oven gloves, Computer control software; Paperless recorder, Chiller ,etc.
