Decription:

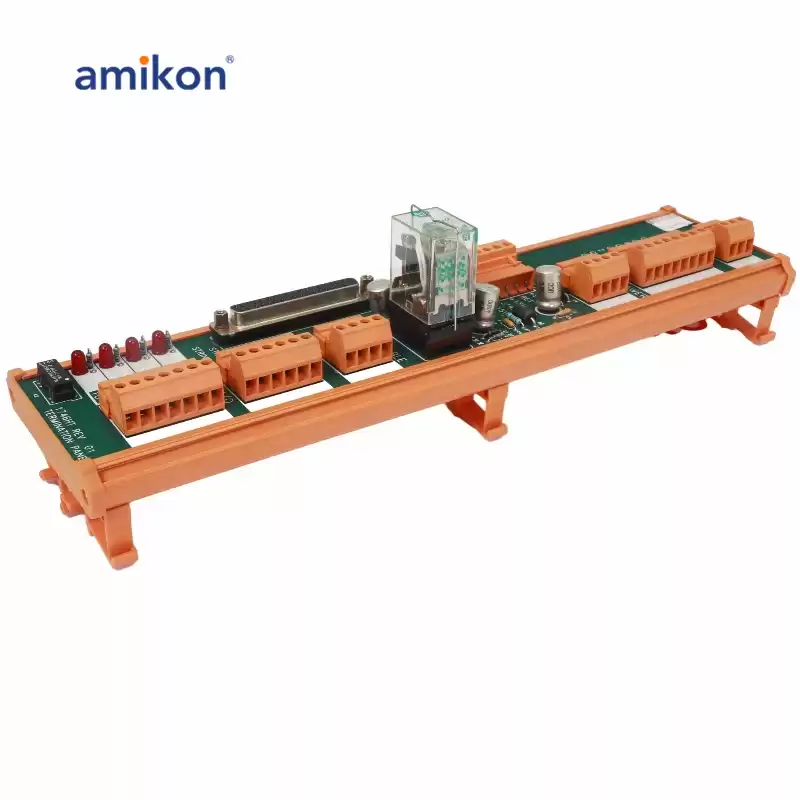

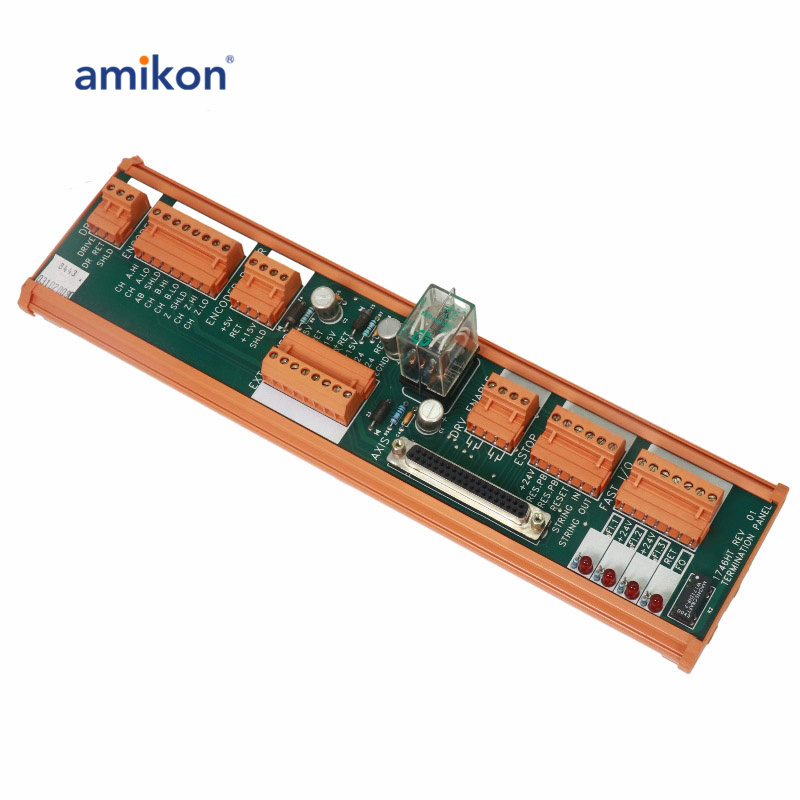

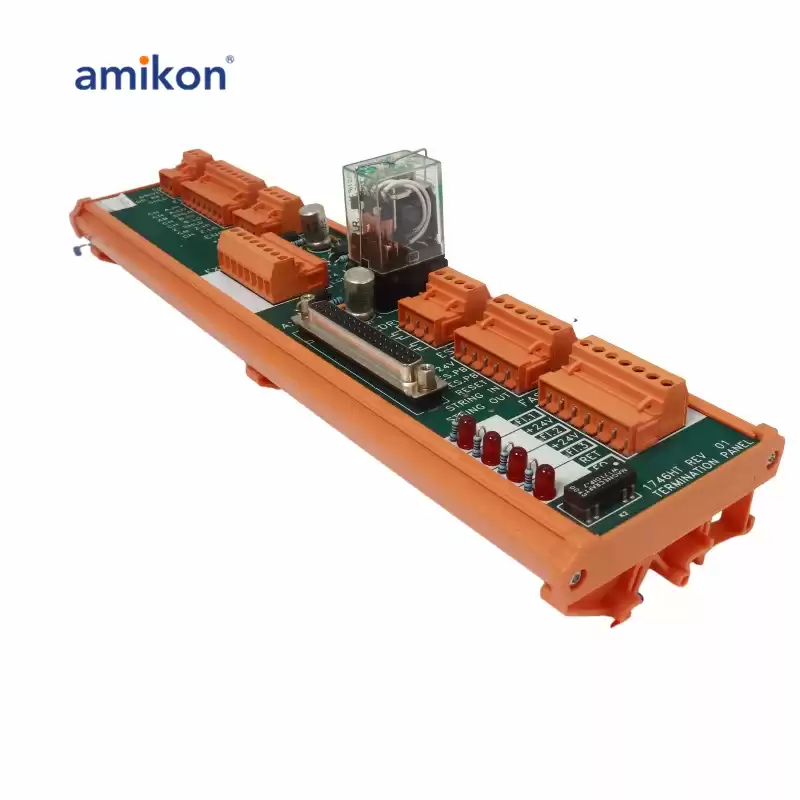

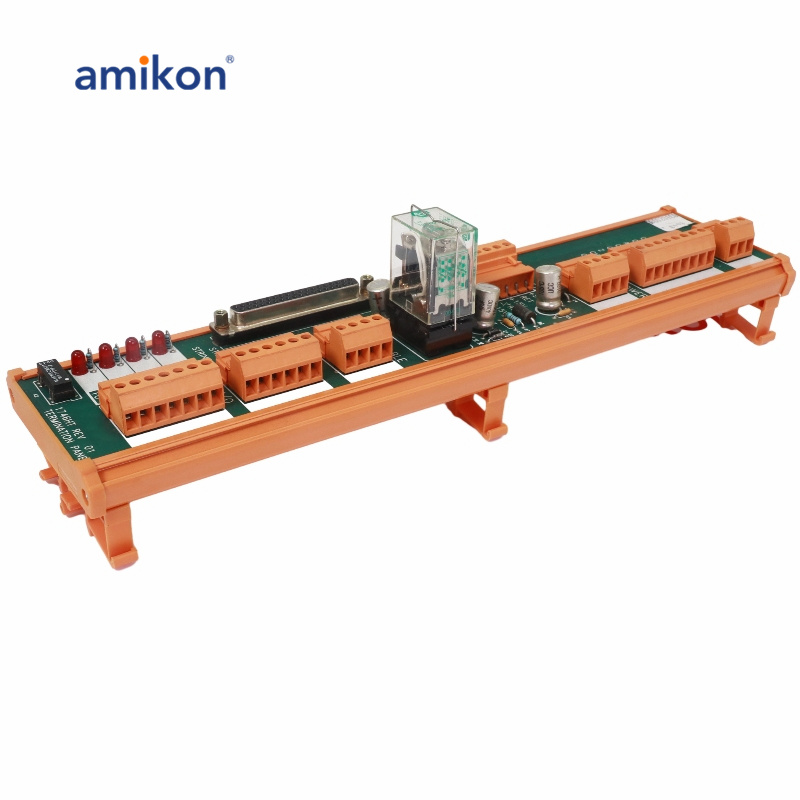

The 1746-HT is a termination panel designed to offer flexibility in servo control systems. It has a height of 292 mm (11.25 in.) and a width of 70 mm (2.75 in.). The panel supports an emergency stop connection for the emergency stop ring and features fast I/O connections for three inputs, one output, along with LED indicators that display the status for each I/O point. When using an encoder, encoder feedback for one axis is required. All drive connections are directed to the analog drive. The panel provides external connections for +5, +15, and +24 V power sourced from the power supply. It can be easily mounted on a DIN rail and positioned up to 2.1 m (7 ft) from the motion control module, requiring only a screwdriver and wire stripper for installation. The termination panel includes a drive within a drive, drive return, and a shield.
|
Part Number/Catalog No.
|
1746-HT
|
|
Series
|
SLC 500
|
|
Hardware Type
|
Termination Panel
|
|
Mounting
|
Rack
|
|
Outputs
|
Digital
|
|
Input Frequency
|
250 kilohertz
|
|
Backplane Current (5 Volts)
|
200 milliamps
|
|
Backplane Current (24 Volts)
|
90 milliamps
|
|
Slots
|
1
|
|
I/O Connection
|
1746-HT and 1746-HCA
|
