Decription:

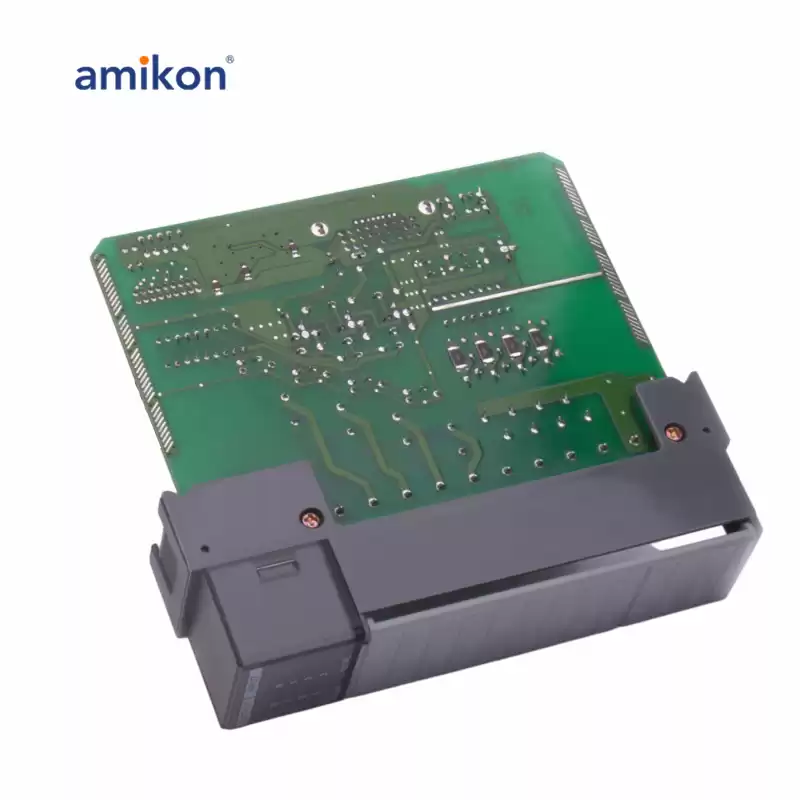

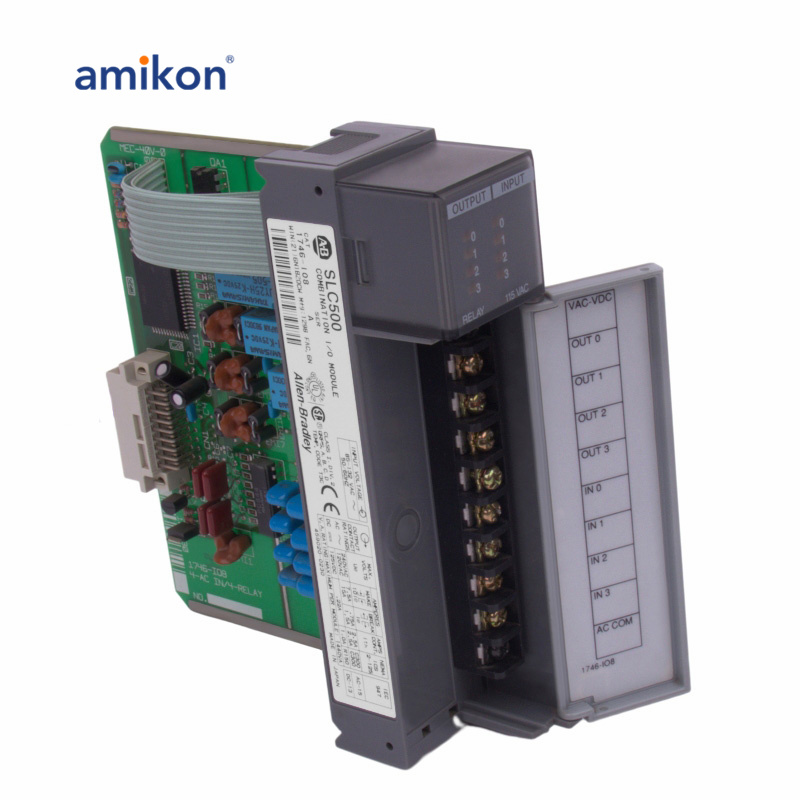

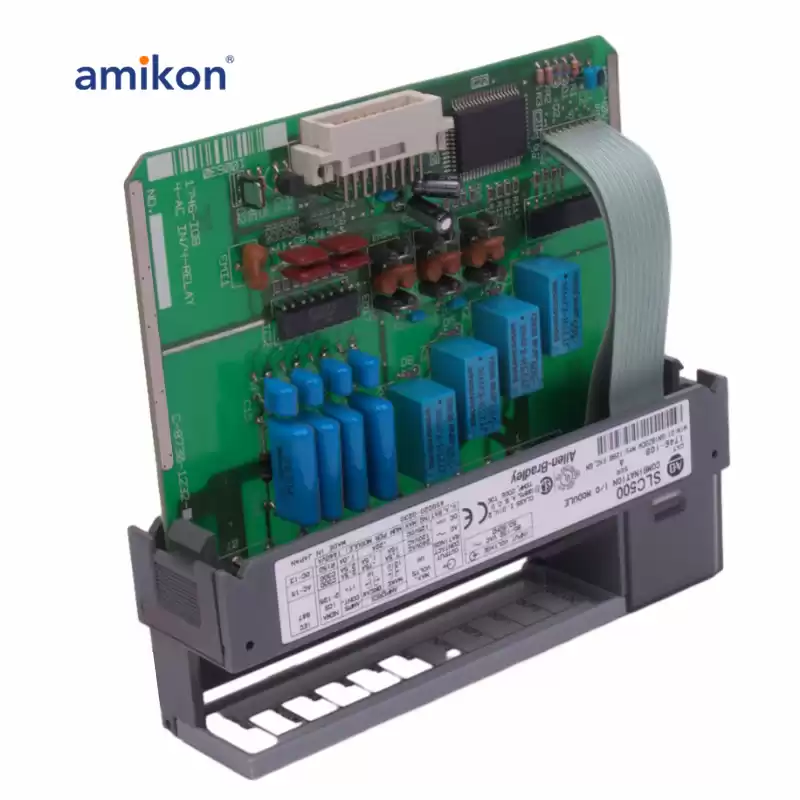

The 1746-IO8 is an I/O module from the SLC 500 series, featuring both input and output channels for flexible operation in various industrial systems. It is a relay contact module with a protective seal, which can be degraded by exposure to certain harsh chemicals, so it should be protected from such substances. The module is designed for use in non-hazardous industrial environments as well as in Class 1, Division 2, Groups A, B, C, and D rated hazardous environments. Regular inspection of the module for wear and tear is recommended, particularly if it is used in a hazardous environment. The 1746-IO8 module provides 4 inputs and 4 outputs for efficient process control.
|
Attribute
|
Specification
|
|
Part Number/Catalog No.
|
1746-IO8
|
|
Series
|
SLC 500
|
|
Module Type
|
Digital I/O Combination Module
|
|
Operating Voltage
|
85-132 Volts AC
|
|
Inputs
|
4
|
|
Outputs
|
4
|
|
Signal Delay
|
35-45 milliseconds
|
|
Current/Output (24VDC)
|
1.2 amps
|
|
Current/Output (120 VAC)
|
1.5 amps
|
|
Applications
|
Combination 120 Volts AC I/O
|
Packing & Delivery:
|
1)100% full New! - Original Factory Seal !
|
|
2)Warranty: 1 year!
|
|
3)Package: Original packing with cartons.
|
|
4)Delivery time: Shipped in 3 days after payment
|
|
5) All the goods will be tested before shipment.
|
