When in use, you need to ensure that the temperature does not exceed 60°C or fall below 0°C. You need to store this module in an area that has a temperature range of -40-85°C.
|
|

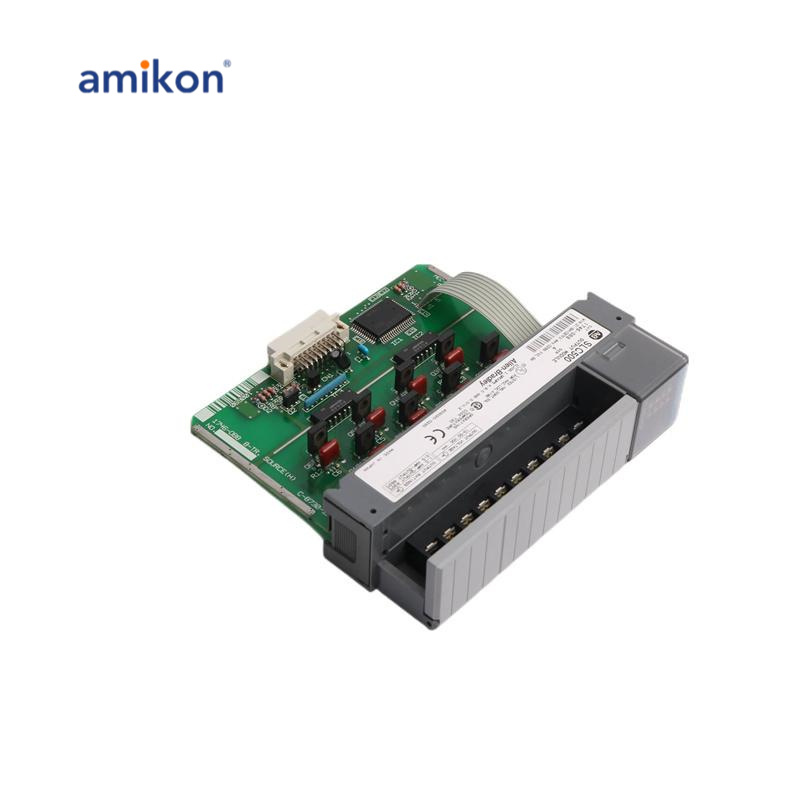

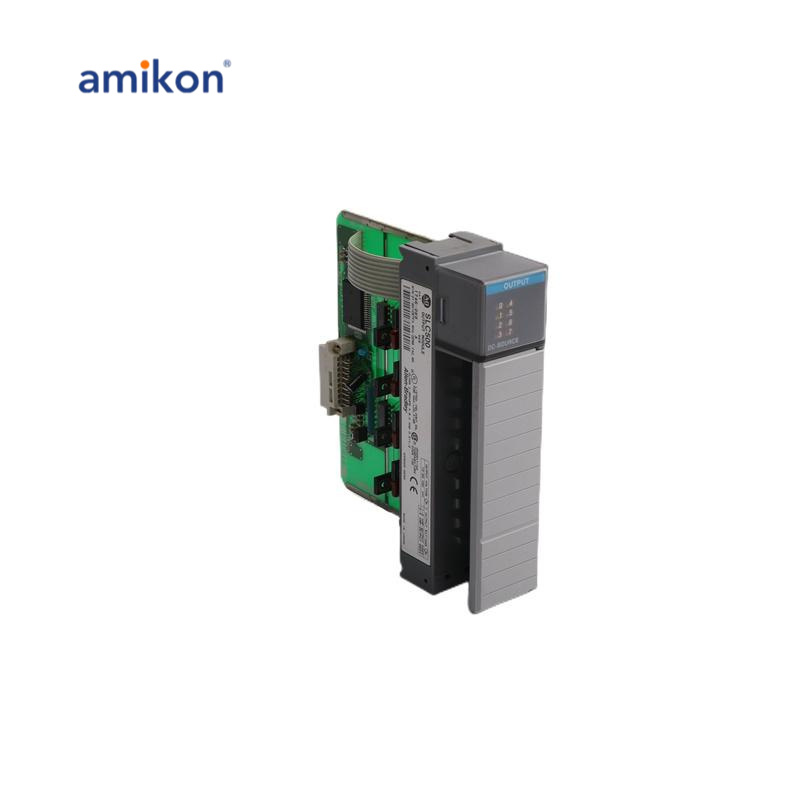

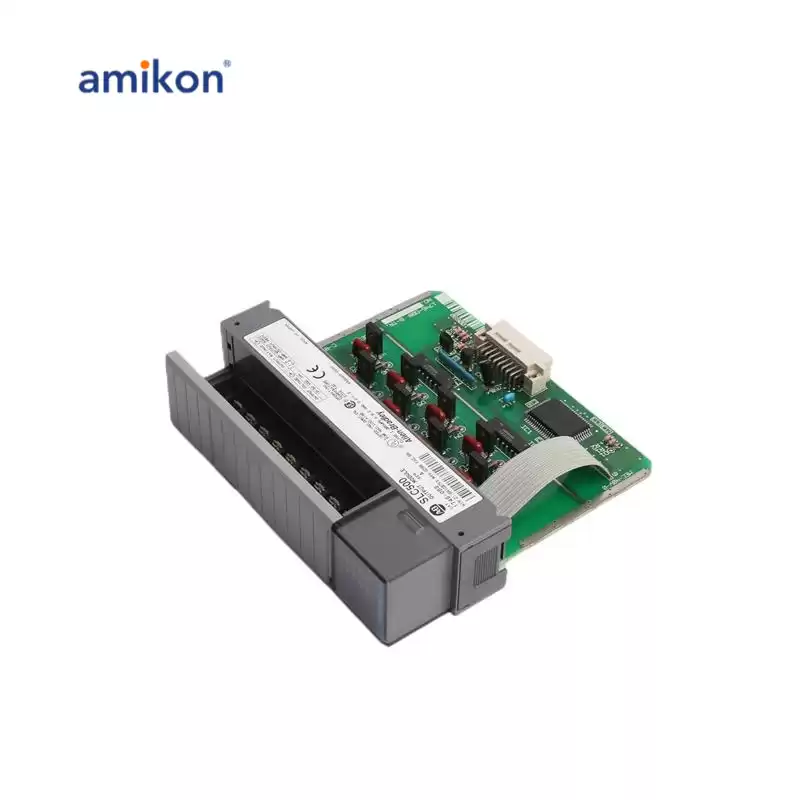

1746-OB8 Description:
|
It is UL-listed, CE compliant, and CSA and C-Tick certified. It has an operating humidity that ranges from 5 – 95% (non-condensing).
|
|
has a maximum On-state voltage drop of 1.2V at 1A and 3A for 10ms maximum surge current per point. It has a backplane current consumption of 135mA at 5V DC and 0 mA at 24V DC.
|
|
It has minimum load current of 1 mA. Please watch out for transient pulses which can occur when the external DC supply voltage is applied to the output common terminals.
|
|
