Technical specifications for 1747-L40C
|
Part Number/Catalog No.
|
1747-L40C
|
|
Module Type
|
Fixed Controller
|
|
Series
|
SLC 500
|
|
Inputs
|
(24) 24 V DC Sink
|
|
Outputs
|
16 AC/DC Relay
|
|
Memory
|
1K Instruction Capacity
|
|
Communication Port
|
DH485
|
|
Integrated Inputs
|
Twenty-Four (24) 120 Volts AC
|
|
Integrated Outputs
|
Sixteen (16) AC/DC Relay
|
|
High-Speed Counter
|
Yes
|
|
Line Power
|
120/240 Volts AC
|
|
Cable
|
Belden 9463
|
|
User Power
|
24 Volts - 200 milliamps
|
|
Weight
|
0.37 pounds (168 grams)
|
|
Connectors
|
6-Pin Phoenix Connector
|
|
UPC
|
1.06625E+13
|
|
UNSPSC
|
43232608
|
|
Dimensions
|
5.72 x 1.37 x 5.15 inches
|
|
Product Lifecycle Status*
|
Discontinued/Obsolete
|
|
Operating Temperature
|
0-60 Celsius
|

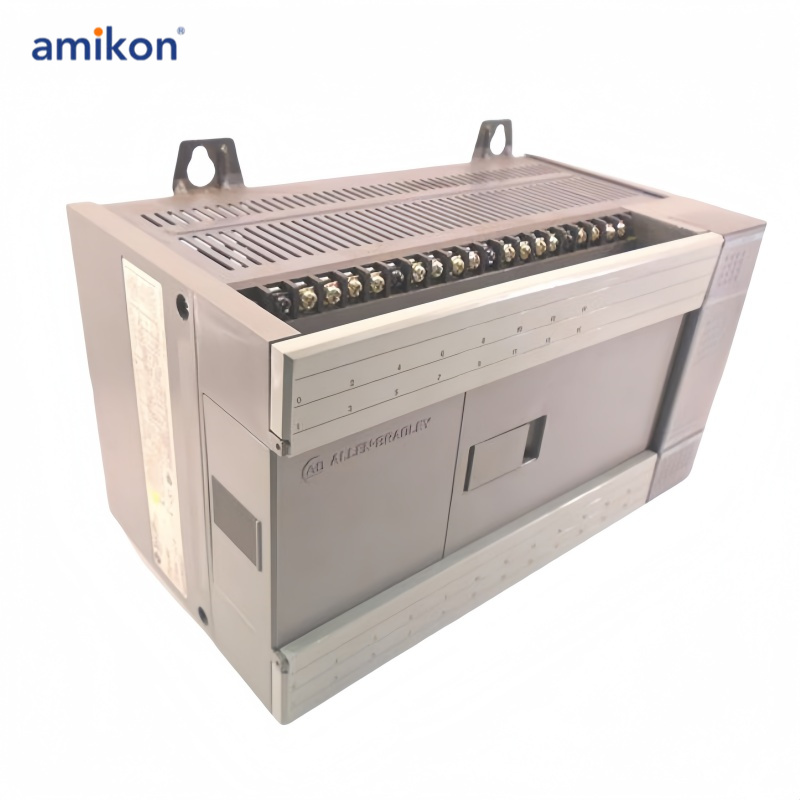

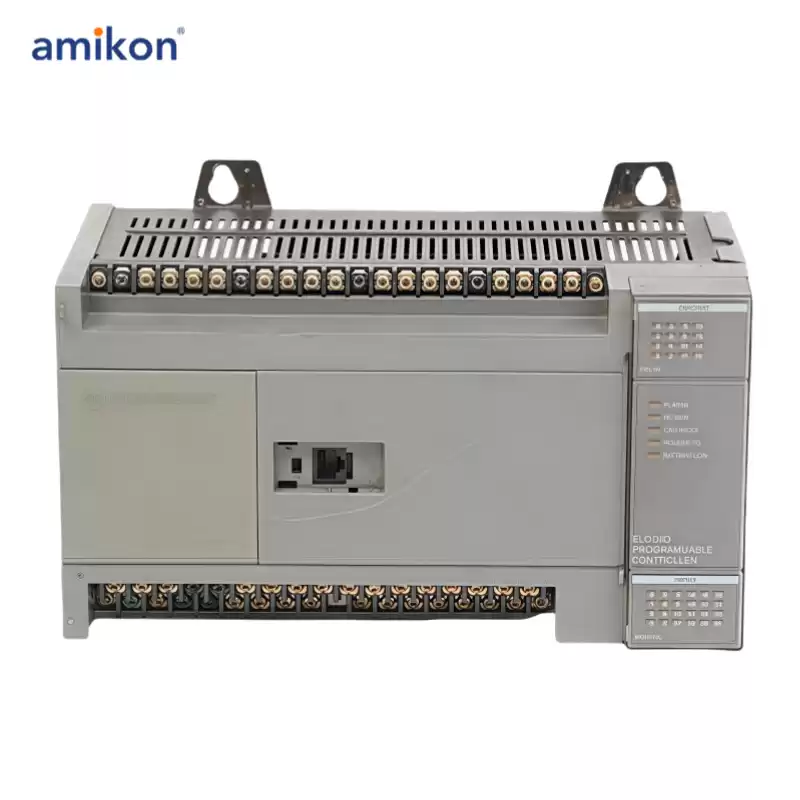

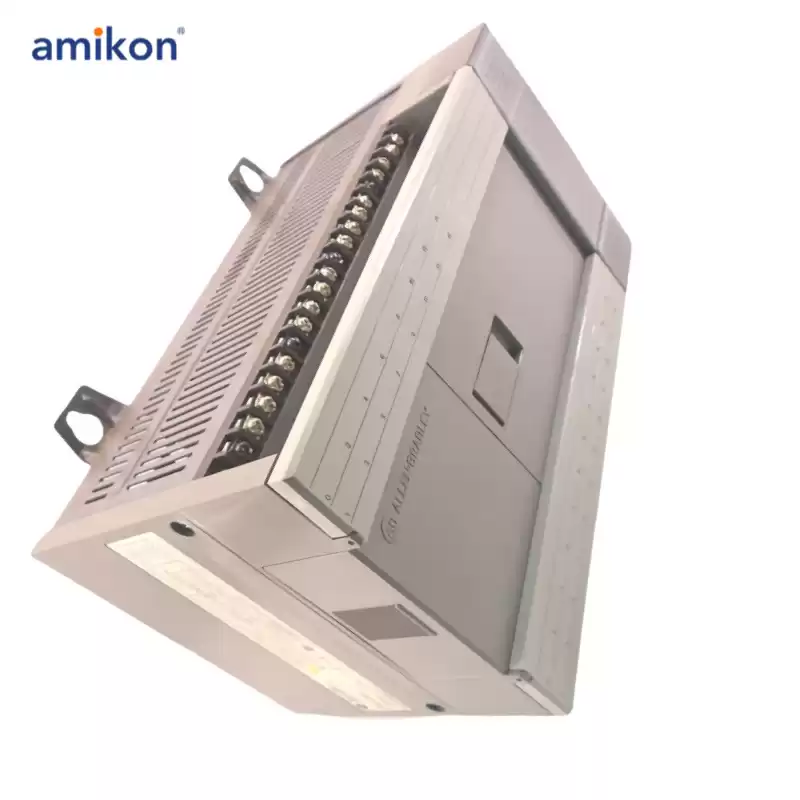

The 1747-L40C is a fixed hardware controller designed to operate on a supply voltage of 20.4 - 27.6V DC or 24V DC +/- 15%, with a line power of 120-240V AC. This fixed controller integrates a processor with 1,024 (1K) instruction capacities, a power supply, and a fixed number of I/O points within a single package. It features capacitor-backed RAM and offers optional battery backup, with memory options through EEPROM or UVPROM. The controller has a 1K instruction capacity for program memory.
For input configurations, the nominal current is 20mA at 24V DC for input 0 and 8mA at 24V DC for all other inputs. The input has an on-state voltage range of 10-30V DC and a maximum off-state voltage of 4V DC for input 0 (5V DC for all others). The maximum turn-on and turn-off times are 8 milliseconds.
The power output current is 200mA, with an output voltage range of 20.4 - 27.6V DC or 24V DC +/- 15%. The controller supports a maximum wire size of #14 AWG and provides electrical-optical isolation of 1500V AC for 1 minute.
Operating in a temperature range of 0-60°C, it must be stored at -40 to 85°C. The typical scan time is 8 milliseconds per 1K, with a program scan hold-up time of 20-700 milliseconds after power loss. The I/O configuration includes 24 (24V DC sink) inputs and 16 AC/DC relay outputs. Additionally, it supports a high-speed counter and 24V/200mA user power.
