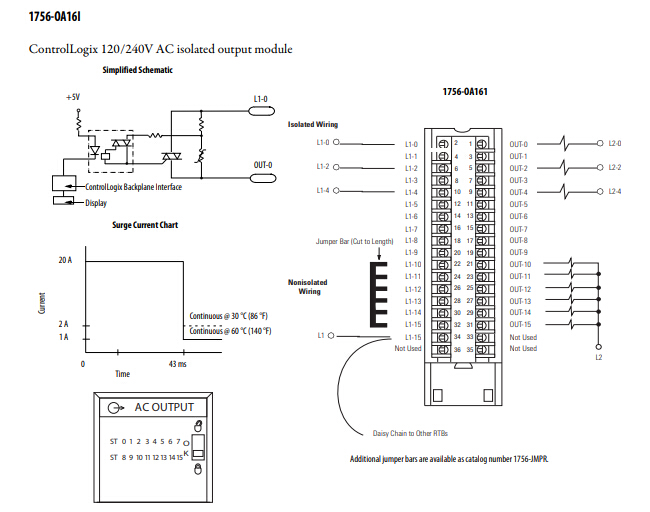

The 1756-OA16I ControlLogix AC Digital Output Module by Allen-Bradley is a 120-240V AC digital output module with 16 individually-isolated outputs, and a pilot duty rating. Its operational voltage ranges between 74 and 265V AC at 47-63 Hz, and has an output signal delay time of 9.3ms at 60Hz and one of 11ms at 50Hz for both ON to OFF and OFF to ON. The 1756-OA16I has a backplane draw current of 300mA at 5.1V and 2.5A at 24V and an aggregate backplane power of 1.59W. It has an operational thermal dissipation of 18.76 BTU/hr and dissipates 5.5W at 60 °C (140 °F).
The 1756-OA16I has a leakage current of 3mA per point and in the ON state, it has a peak drop voltage of 1.5V at 2A and 6V at a load current of <50mA. The maximum current on each output point is 2A at 30 °C and 1A at 60 °C and the aggregate current on the output module is 5A at 30 °C and 4A at 60 °C. The 1756-OA16I has an inrush current of 20A for 43ms per output point, repeatable every 2 s at 60 °C, and the lowest current load sustain on each point is 10mA.
|
Attribute
|
|
1756-OA16I
|
|
|
|
|
|
Outputs
|
|
16 individually isolated
|
|
|
|
|
|
Voltage category
|
|
120/240V AC
|
|
|
|
|
|
Operating voltage range
|
|
74…265V AC
|
|
|
|
47…63 Hz
|
|
|
|
|
|
Output delay time
|
|
9.3 ms @ 60 Hz
|
|
OFF to ON
|
|
11 ms @ 50 Hz
|
|
|
|
|
|
ON to OFF
|
|
9.3 ms @ 60 Hz
|
|
|
|
11 ms @ 50 Hz
|
|
|
|
|
|
Current draw @ 5.1V
|
|
300 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
2.5 mA
|
Allen Bradley 1756-OA16I
1756-OA16I Allen Bradley ControlLogix Isoloated AC Output Module
Email:sales3@amikon.cn
|
Part Number:
|
1756-OA16I
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Isoloated AC Output Module
|
|
Outputs:
|
16 Points Individually Isolated
|
|
Voltage:
|
120-240 Volts AC
|
|
Operating Voltage Range:
|
74-265 Volts AC
|
