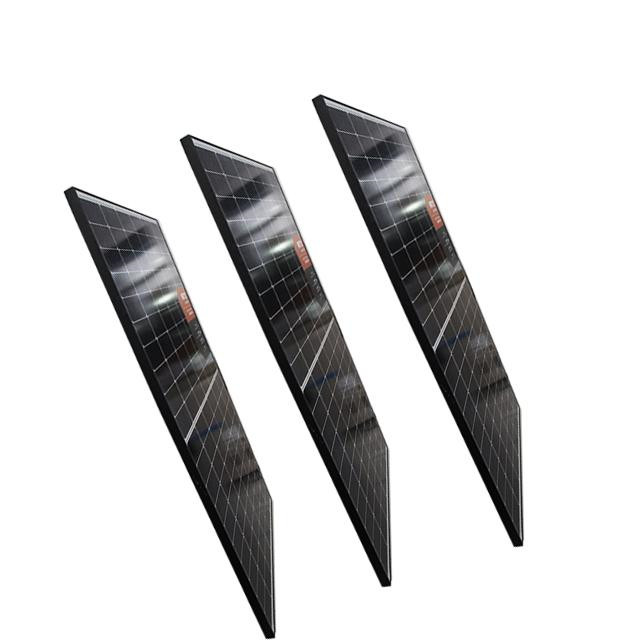

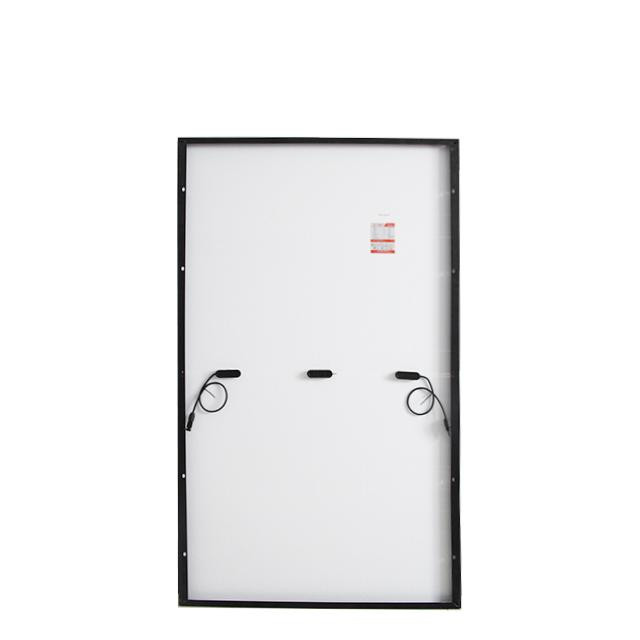

182mm PERC Monocrystalline Half-cell 530w 535w 540w 545w 550w 555w 560w 565w 570w 575w 580w Solar Panels

Solar modules stand out with the breakthrough innovation of M10 size (182mm) solar cells for the highest power generation and the lowest LCOE, which makes 182mm solar module the optimal choice for large solar power system.


  • Warranty25 years linear power warranty
  • CertificateTUV, CE, IEC, Inmetro

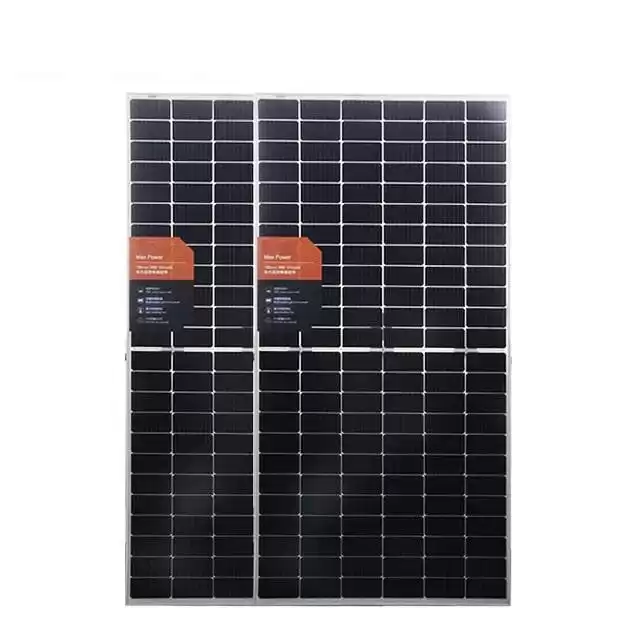

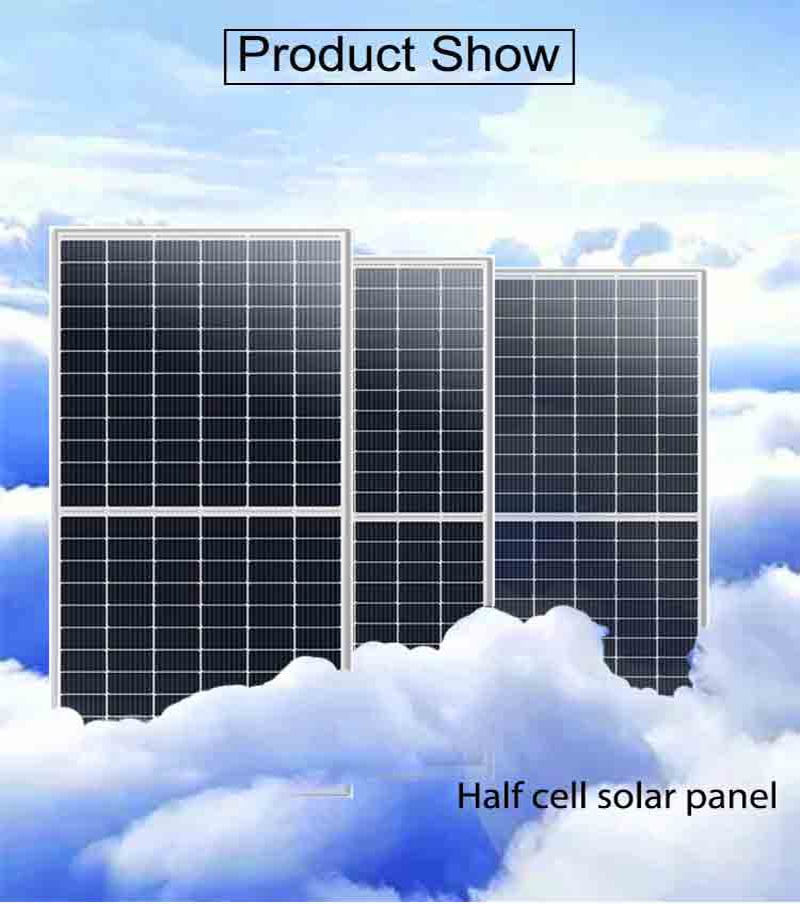

FOTOVO 530W 540W 545W 550W 182mm Half-cut Solar Cell Solar panels

  • Half cut cell Technology:the half-cell module can reduce the power loss caused by the shading, and can significantly increase the power generation of the module in the morning and evening and when the lower edge of the module accumulates dust and snow, and improves the economic benefits of the power station.
  • Saving shipping cost:The same 40-ft container can hold 682 pieces of 450w or  620 pieces of 540w. 450w x682=307kw, but 540w x 620pcs=335kw. This is equivalent to saving 10% of shipping cost and installation costs.


Product Specification

ELECTRICAL PARAMETERS AT STC
Rated Maximum Power (Pmax) [Wp] 530 535 540 545 550
Open Circuit Voltage (Voc) [V] 49.74 49.89 50.04 50.18  50.32
Maximum Power Voltage (Vmp) [V] 41.63 41.8 41.96 42.12  42.28
Short Circuit Current (Isc) [A] 13.62 13.69 13.76 13.83 13.9
Maximum Power Current (Imp) [A] 12.73 12.80 12.87 12.94 13.01
Module Efficiency [%] 20.51 20.7 20.89 21.09 21.28
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage [V] 1000/1500V
STC Irradiance 1000W/m², cell temperature 25°C, AM1.5G

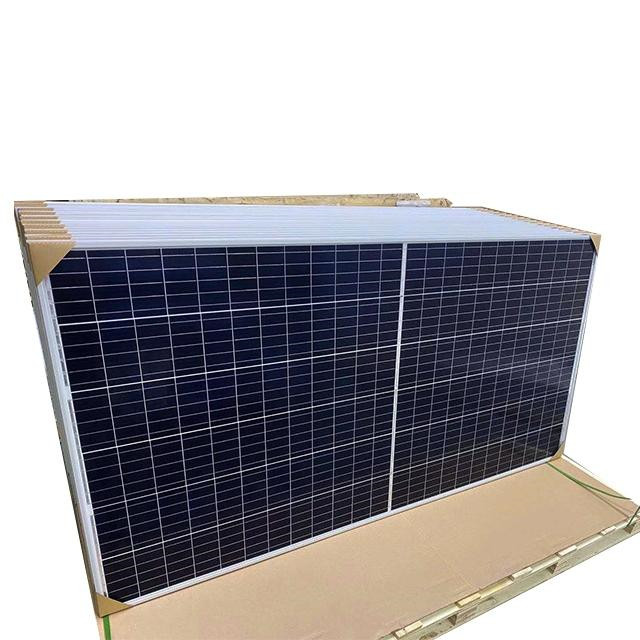

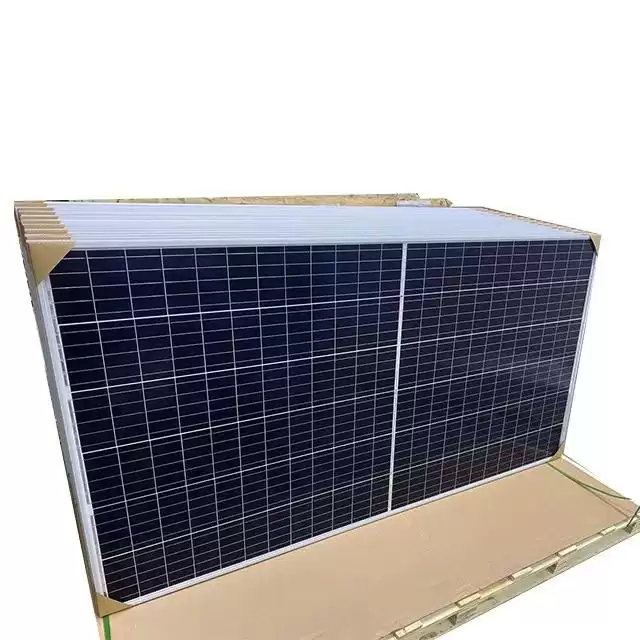

Factory&Delivery

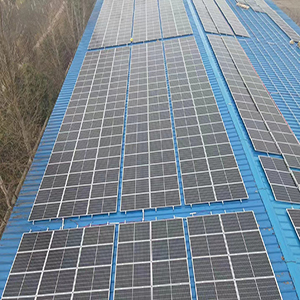

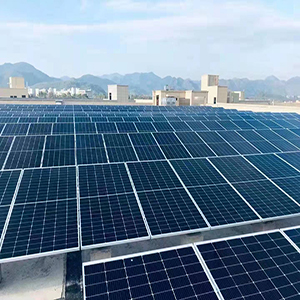

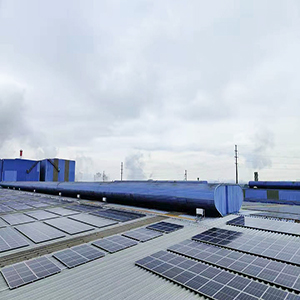

Projects

                   100kw in Ukraine  200kw in Japan                         30kw in Malaysia
