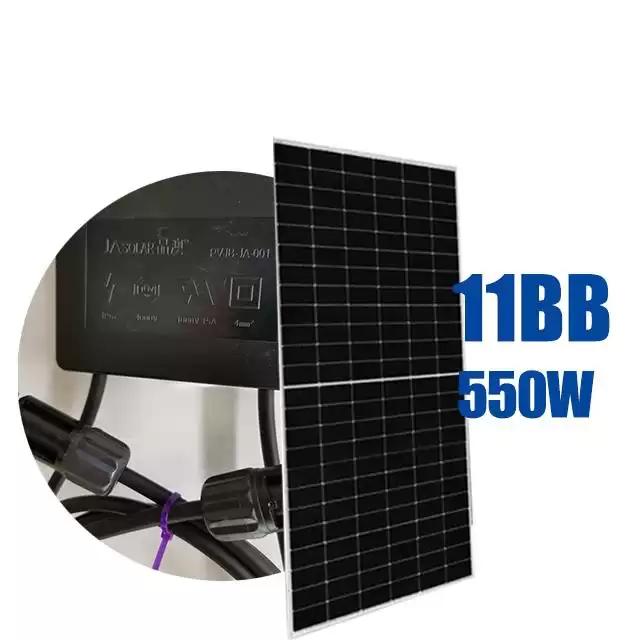

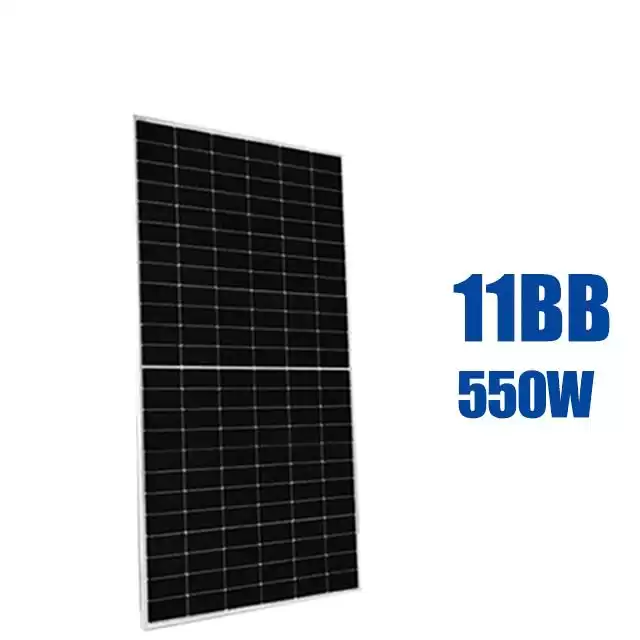

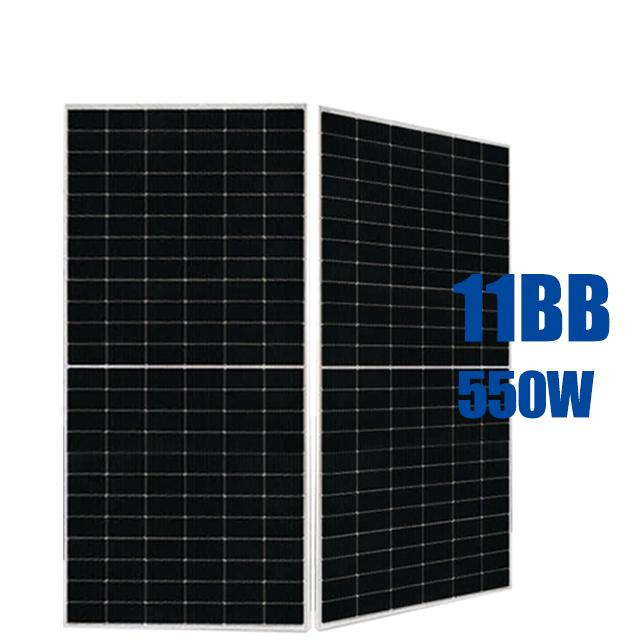

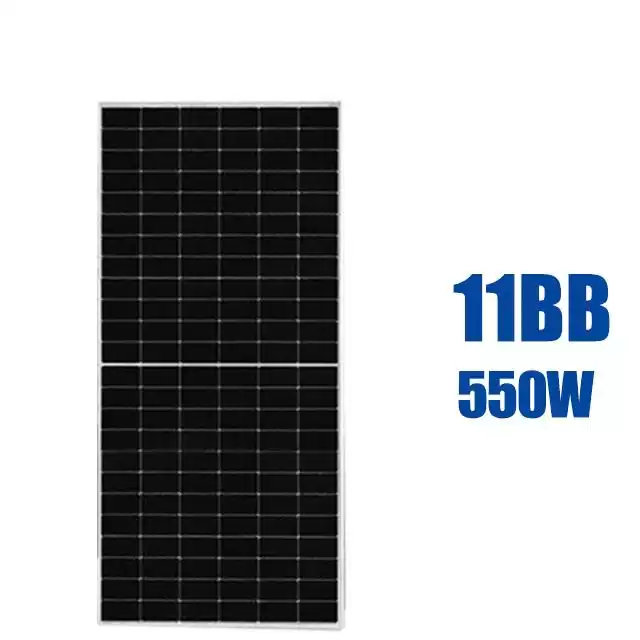

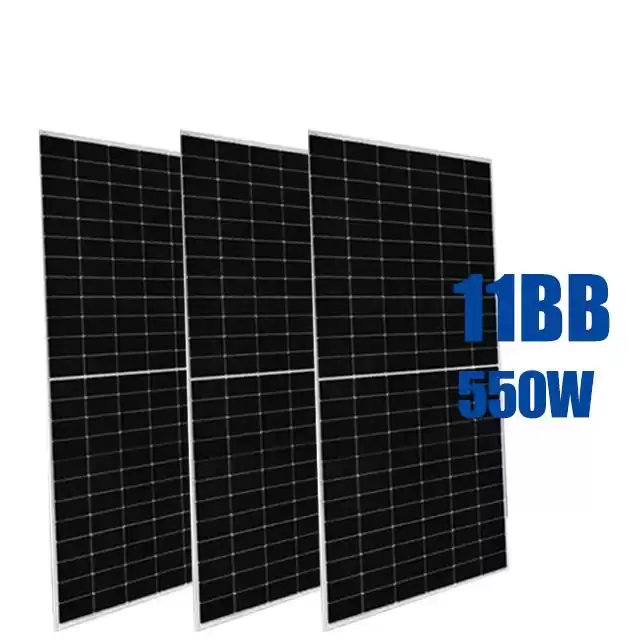

Tier 1 JA Solar panel High Efficiency Monocrystalline 530W 540W 550W
JA solar panel is assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Product Specification
|
SPECIFICATIONS
|
|
Cell
|
Mono
|
|
Weight
|
28.6kg±3%
|
|
Dimensions
|
2279±2mm x 1134±2mm x 35±1mm
|
|
Cable Cross Section Size
|
4mm² (IEC), 12AWG (UL)
|
|
No. of Cells
|
144 (6x24)
|
|
Junction Box
|
IP68, 3 diodes
|
|
Connector
|
QC 4.10(1000V), QC4.10-35(1500V)
|
|
Cable Length(Including Connector)
|
Portrail: 300mm(+) 400mm(-)
Landscape: 1200mm(+) 1200mm (-)
|
|
Packaging Configuration
|
31pcs/Pallet, 620pcs/40ft Container
|
|
ELECTRICAL PARAMETERS AT STC
|
|
Rated Maximum Power (Pmax) [W]
|
525
|
530
|
535
|
540
|
545
|
550
|
|
Open Circuit Voltage (Voc) [V]
|
49.15
|
49.30
|
49.45
|
49.60
|
49.75
|
49.90
|
|
Maximum Power Voltage (Vmp) [W]
|
41.15
|
41.31
|
41.47
|
41.64
|
41.80
|
41.96
|
|
Short Circuit Current (Isc) [A]
|
13.65
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
|
Maximum Power Current (Imp) [A]
|
12.76
|
12.83
|
12.90
|
12.97
|
13.04
|
13.11
|
|
Module Efficiency [%]
|
20.3
|
20.5
|
20.7
|
20.9
|
21.1
|
21.3
|
|
Power Tolerance
|
0~+5W
|
|
Temperature Coefficient of Isc [α_Isc]
|
+0.045%/°C
|
|
Temperature Coefficient of Voc [β_Voc]
|
-0.275%/°C
|
|
Temperature Coefficient of Pmax [γ_Pmp]
|
-0.350%/°C
|
|
STC
|
Irradiance 1000W/m², cell temperature 25°C, AM1.5G
|
|
ELECTRICAL PARAMETERS AT NOCT
|
|
Rated Maximum Power (Pmax) [W]
|
397
|
401
|
405
|
408
|
412
|
416
|
|
Open Circuit Voltage (Voc) [V]
|
46.05
|
46.18
|
46.31
|
46.43
|
46.55
|
46.68
|
|
Maximum Power Voltage (Vmp) [W]
|
38.36
|
38.57
|
38.78
|
38.99
|
39.20
|
39.43
|
|
Short Circuit Current (Isc) [A]
|
10.97
|
11.01
|
11.05
|
11.09
|
11.13
|
11.17
|
|
Maximum Power Current (Imp) [A]
|
10.35
|
10.39
|
10.43
|
10.47
|
10.51
|
10.55
|
|
NOCT
|
Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G
|
Package

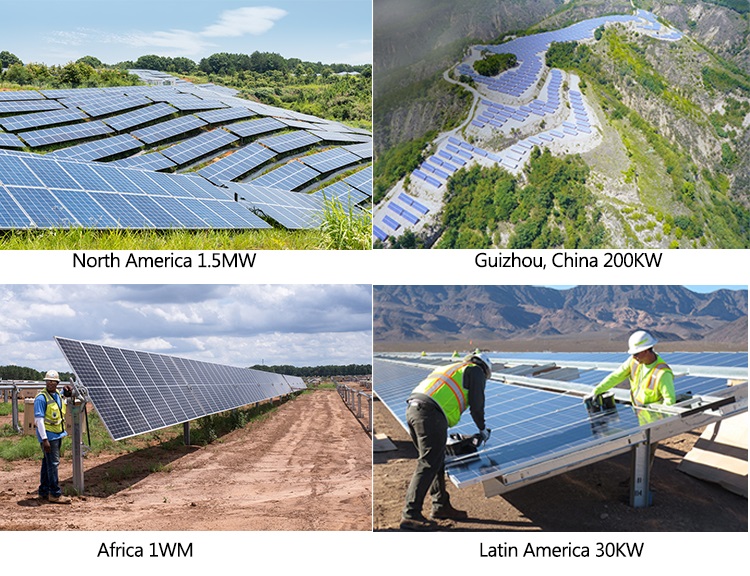

Projects
FAQ
Q1: What's your MOQ?
A1: Our MOQ is 1 pallet, which is 31pcs of solar panels.
Q2: What is your delivery time?
A2: We have regular stock in our warehouse, if you need big quanity or not common model, the delivery time is about 2-3 weeks.
Q3: What's your warranty?
A3: All of our A grade solar panels have garantee of 12-year product warranty and 25-year linear warranty.
Q4: Can I get a solar system for my house?
A4: Yes, we also supply all products of a complete solar system. Including solar panel, inverter, battery, distribution box, mounting brackets, etc.
Q5: Do you have the relevant certificate for exporting to my country?
A5: Yes, we have been exported to over 50 countries so far, and our sales team are full of experience of handling all the export procedures.
