Overview

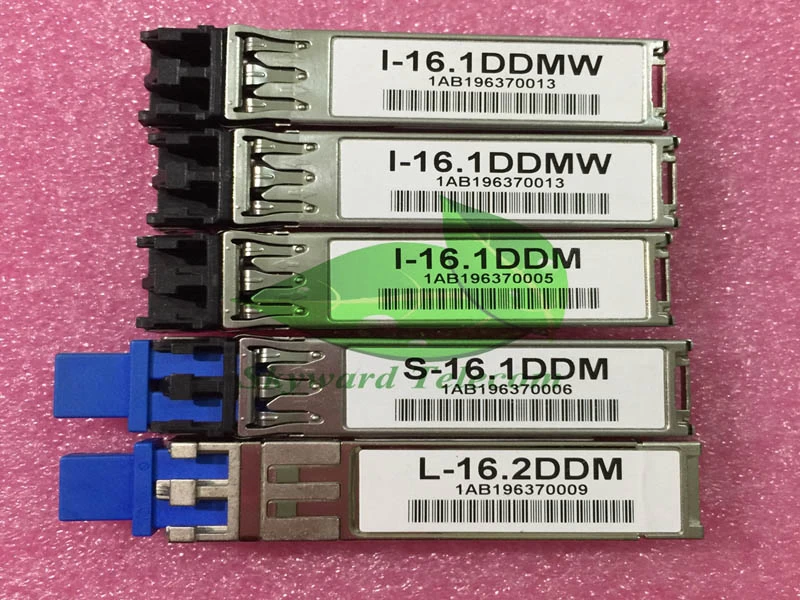

Alcatel Optical Module L-16.1ddm SFP OC48-SR, SFP, 2.5Gb/s, 2km, 1310nm, Duplex LC, DDM
Alcatel Transceiver 1AB196370005 is promgrammed to be fully compatible and functional
with all intened Alcatel switching devices. The SFP optical transceiver is based
on the ATM/SONET/SONET standard and is desinged to be complaint with SFF-8472
SFP Multi-source Agreement(MSA). This mondule is desinged for single mode fiber
and operates at a nominal wavelength of 1310nm.
Product Specification
-
Single Fiber Bi-directional Data Link
-
Up to 2.67GBd Bi-directional data links
-
Hot-Pluggable SFP Footprint
-
Un-cooled 1310nm FB laser transmitter
-
Dual LC Connectors
-
Up to 2km over 9/125 SMF
-
Operating temperature range E-Tmp -10℃to 85℃
-
Wide Distance Supported from 500m to 120km
-
Digital Diagnostic Functions Optional
-
Metal Enclosure for Lower EMI
-
Comply with SFP MSA
-
Comply with IEEEstd 802.3
-
Single +3.3V Power Supply
-
RoHS-6 Compliant
Compliance
-
ANSI-T1.646, ATM and SONET and SDH for OC-48/STM-16
-
SFP MSA SFF-8472
-
RoHS
-
Class 1 laser product EN 60825
Applications
-
SNOET OC-48 SR/SDH STM 1-16
-
SNOET OC-12 SR/SDH STM 1-4
-
SNOET OC3 SR/SDH STM 1-16
-
1.25GBd Gigabit Ethernet
-
2.125 GBd/1.08 GBd Fiber Channel
