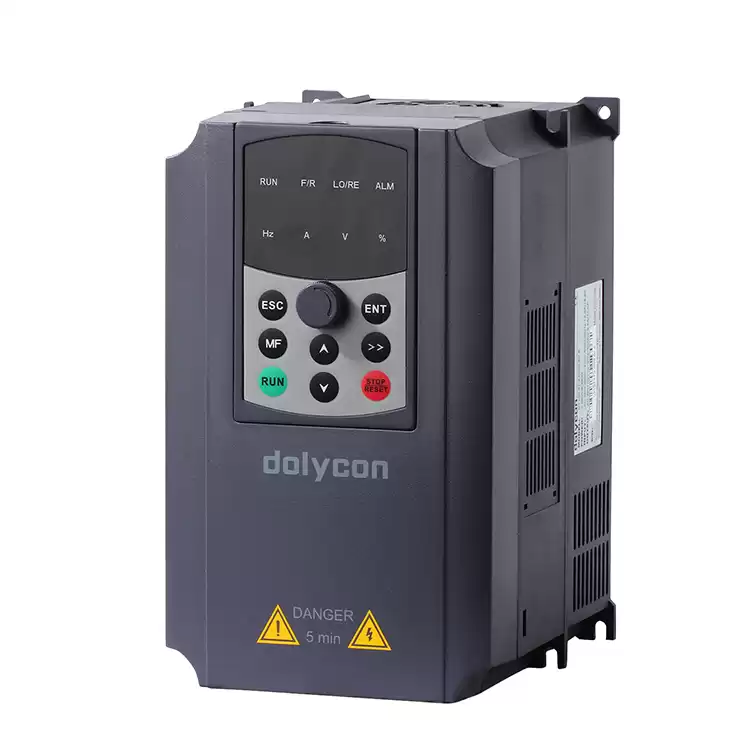

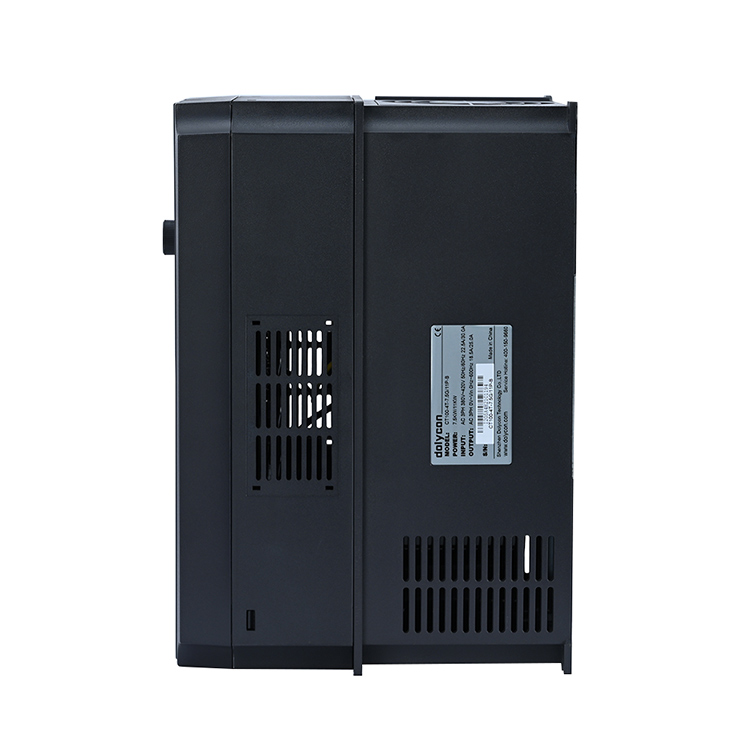

3 Phase VDF for Middle And High Frequency Power Supply
3 Phase VDF Features:
-
V/F separate control function to satisfy industry craft requirements.
-
Automatically search and follow resonance points to ensure real-time system efficiency.
-
Switch voltage lock and current lock modes to meet different industrial requirements.
MOQ: 10
3 Phase VDF Technical Parameter
|
Input and output parameters
|
Input voltage
|
3PH 380VAC±15%.
|
|
Input frequency
|
50～60Hz±5%
|
|
Output voltage
|
0～Rated input voltage
|
|
Output frequency
|
50～3000Hz
|
|
Technical control parameters
|
Control mode
|
current control, voltage control
|
|
Overload capacity
|
150% of rated current: 60s;
180% of rated current: 10s;
200% of rated current: 1s
|
|
ACC and DEC time
|
0.1～3000.0s
|
|
Frequency setting
|
Keypad setting, analog quantity setting,
multi-step speed setting, PID setting,
485 communication setting
|
|
Output voltage setting method
|
Keypad setting, analog quantity setting,
multi-step speed setting, PID setting,
485 communication setting
|
|
Control terminals
|
Digital input
|
Standard 5-channel inputs
|
|
Analog input
|
Standard 2-channel inputs,AI0:0～10V keyboard knob, AIN: -10～10V input optional.
|
|
Communication interface
|
RS485 communication
|
RS485 communication interface for external RS485 communication,
Modbus protocol (RTU mode)
|
|
Fault protection
|
ACC over-current, DEC over-current, constant speed over-current, ACC over-voltage, DEC over-voltage, constant speed over-voltage, busbar under voltage, motor overload, inverter overload, input power failure, output phase loss, rectifier module overheating, inverter module overheating, external fault, communication fault, current detection fault, etc.
|
|
Keypad display
|
LED display
|
Highlight LED digital tube displays the inverter information
|
|
Others
|
Running environment
|
Indoors, less than 1km above sea level, without dust, corrosive gases or direct sunlight
|
|
Ambient temperature
|
-10～+40℃, derate 1% for every additional 1℃ when the ambient temperature is between 40～50℃
|
|
Humidity
|
5～95% (no condensation)
|
|
Altitude
|
0～2000m, derate 1% for every additional 100m when the sea level is above 1000m
|
|
Vibration
|
Less than 0.5g
|
|
Storage temperature
|
−40～+70℃
|

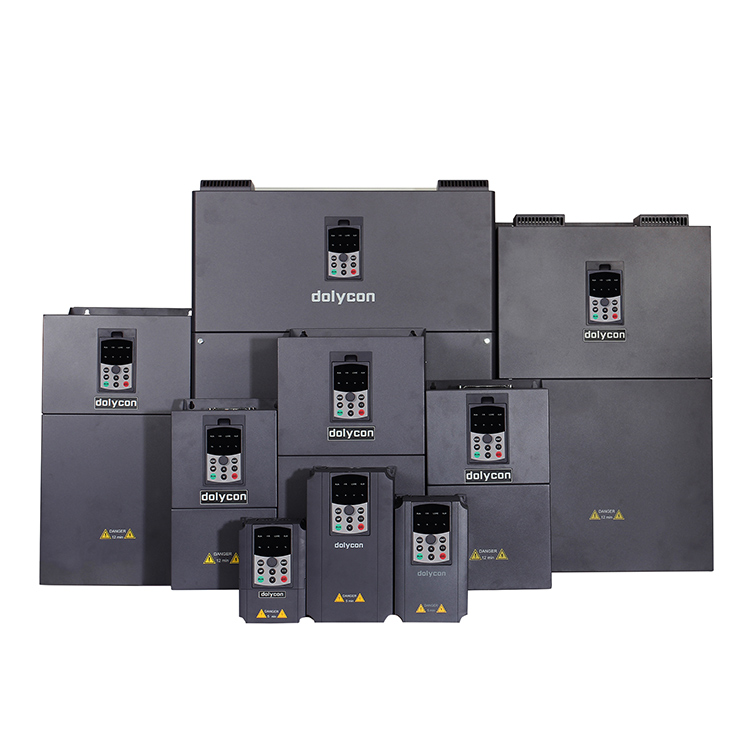

Some Models of CT113 series variable frequency inverter
|
Inverter type
|
Input current（A）
|
Output current（A）
|
Power capacity(KW）
|
|
CT113-4T-0.7
|
5.0
|
3.8
|
1.5
|
|
CT113-4T-1.5
|
5.8
|
5.3
|
2.1
|
|
CT113-4T-2.2
|
12.0
|
9.5
|
3.7
|
|
CT113-4T-4.0
|
18.5
|
14.0
|
5.4
|
|
CT113-4T-5.5
|
22.5
|
18.5
|
7.1
|
|
CT113-4T-7.5
|
30.0
|
25.0
|
9.5
|
|
CT113-4T-11
|
39.0
|
32.0
|
12.2
|
|
CT113-4T-15
|
45.0
|
38.0
|
14.5
|
|
CT113-4T-18.5
|
54.0
|
45.0
|
17.1
|
|
CT113-4T-22
|
68.0
|
60.0
|
22.8
|
|
CT113-4T-30
|
84.0
|
75.0
|
28.5
|
3 Phase VDF Applications：
CT113 Variable Frequency Drive incorporates functions that are suitable for the most common applications, including but not limited：
-
Elevator
-
VF Motor
-
Coal Mining
-
Conveyor Belt
-
Petrochemical
-
Painting Print
-
Boiler
-
Dyeing
-
Rice Paper
If you have any other inverter types in need, please also feel free to tell me !
FAQ
Q1: Are you a factory or trading company?
A1: We are a VFD & solar pump inverter manufacture, customized product is available if you have good requirement quantity for them.
Q2: What is your hot items?
A2: Different power VFD and solar pump inverter.
Q3: How about the Shipping Method?
A3: Samples by DHL/TNT express, Patch order by seafreight or by airfreight according to your suggestion in C&F or CIF shipment. If you have your own forwarder, FOB shenzhen or any other China port is acceptable.
Q4: How about the delivery date?
A4: Samples 5-7 days, patch orders 7-20 days according to the order quantity.
Q5: How about the label and the logo?
A6: Customized label and logo is OK.
Q6: How about the warranty?
A6: All our goods are 18 months warranty and we will do free replacement for all the problem items.
