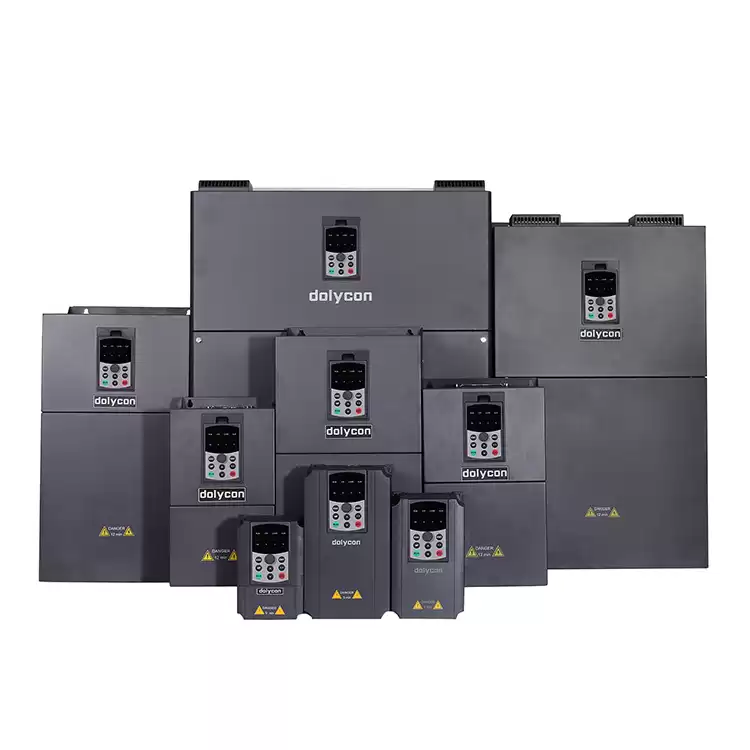

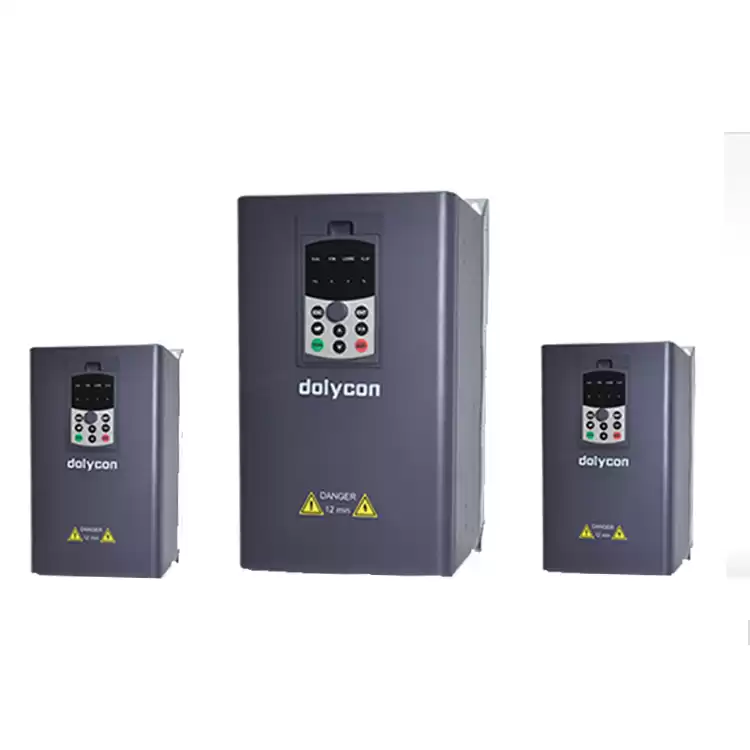

AC Variable Frequency Drive for Rotary Cutting Machine
AC Variable Frequency Drive Description:
Output Frequency: 0～600Hz
Input frequency:50～60Hz±5%
Input voltage:
Single-phase 220VAC±15%,
three-phase 380VAC±15%,
three-phase 660VAC±15%.
Control mode: V/F control, PG close loop vetcor control( applicable for synchronous motors and asynchronous motors)
Communication interface: RS485 communication
Ambient temperature:-10～+40℃, derate 1% for every additional 1℃ when the ambient temperature is between 40～50℃
Humidity:5～95% (no condensation)
MOQ:10
AC Variable Frequency Drive Features:
-
Unique thickness compensation, better effect
-
Regular downtime, more flexible business operations available
-
Touch integration solution
-
Rotary cutting, fixed-length breaking, split axis control
-
Bio-frequency conversion control system,high yield.
-
Integrated special control logic for rotary cutting machine,cut wood into pieces according to the setting width and thickness.
-
Close vector control mode,high speed control accuracy,strong mechanical hardness and good cutting consistency.
-
Complete identification and compensation,good system stability.
AC Variable Frequency Drive Specification
|
Inverter model
|
Power(kW)
|
Input current(A)
|
Output current(A)
|
Applicable motor power(kW)
|
|
Single-phase 220Vac 50/60Hz
|
|
CT200-2S-0.7-B
|
0.7
|
8.2
|
4.0
|
0.75
|
|
CT200-2S-1.5-B
|
1.5
|
14.0
|
7.0
|
1.5
|
|
CT200-2S-2.2-B
|
2.2
|
23.0
|
9.6
|
2.2
|
|
Three-phase 380Vac 50/60Hz
|
|
CT200-4T-0.7-B
|
0.7
|
3.4
|
2.5
|
0.7
|
|
CT200-4T-1.5-B
|
1.5
|
5.0
|
3.7
|
1.5
|
|
CT200-4T-2.2-B
|
2.2
|
5.8
|
5.3
|
2.2
|
|
CT200-4T-4.0-B
|
4.0
|
12.0
|
9.5
|
4.0
|
|
CT200-4T-5.5-B
|
5.5
|
18.5
|
14
|
5.5
|
|
CT200-4T-7.5-B
|
7.5
|
22.5
|
18.5
|
7.5
|
|
CT200-4T-11-B
|
11
|
30.0
|
25.0
|
11
|
|
CT200-4T-15-B
|
15
|
39.0
|
32.0
|
15
|
|
CT200-4T-18.5-B
|
18.5
|
45.0
|
38.0
|
18.5
|
|
CT200-4T-22-B
|
22
|
54.0
|
45.0
|
22
|
|
CT200-4T-30-B
|
30
|
68.0
|
60.0
|
30
|
|
CT200-4T-37-B
|
37
|
84.0
|
75.0
|
37
|
|
CT200-4T-45
|
45
|
98.0
|
92.0
|
45
|
|
CT200-4T-55
|
55
|
123.0
|
115.0
|
55
|
|
CT200-4T-75
|
75
|
157.0
|
150.0
|
75
|
|
CT200-4T-90
|
90
|
188.0
|
180.0
|
90
|
|
CT200-4T-110
|
110
|
221.0
|
215.0
|
110
|
|
CT200-4T-132
|
132
|
267.0
|
260.0
|
132
|
|
CT200-4T-160
|
160
|
309.0
|
305.0
|
160
|
|
CT200-4T-185
|
185
|
344.0
|
340.0
|
185
|
|
CT200-4T-200
|
200
|
384.0
|
380.0
|
200
|
|
CT200-4T-220
|
220
|
429.0
|
425.0
|
220
|
|
CT200-4T-250
|
250
|
484.0
|
480.0
|
250
|
|
CT200-4T-280
|
280
|
539.0
|
530.0
|
280
|
|
CT200-4T-315
|
315
|
612.0
|
600.0
|
315
|
|
CT200-4T-350
|
350
|
665.0
|
650.0
|
350
|
|
CT200-4T-400
|
400
|
715.0
|
720.0
|
400
|
|
CT200-4T-500
|
500
|
890.0
|
860.0
|
500
|
