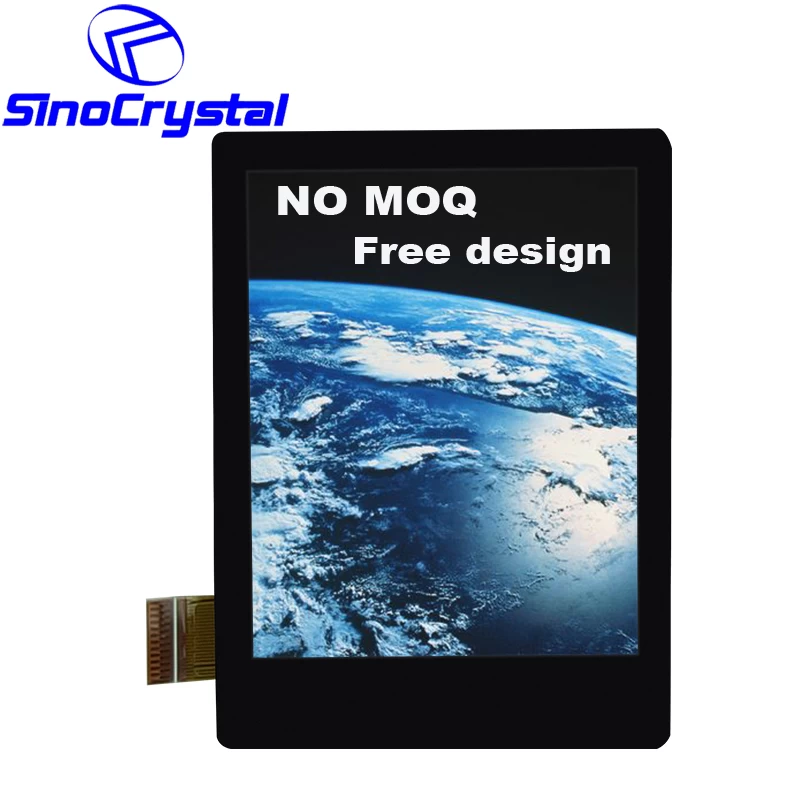

2.0 inch IPS LCD Screen with ST7789V Driver 240RGB*320 resolution

SCT020008-V02 is a 2.0'' TFT LCD Display with 240RGB*320 resolution, it built in with ST7735R IC, and it supports 8bit MCU interface, 20 PIN, 6 o'clock View direction

  • Touch ScreenNo
  • IC Part No.ST7789V
  • Interface8bit MCU
  • View DirectionIPS
  • Active Area (mm)30.60*40.80
  • Viewing Area (mm)31.60*41.80
  • Brightness (cd/m²)300
  • Outline Dimension (mm)34.98*50.57*2.10
  • Resolution240*320
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    240RGB*320

Outline Dimension:        34.98*50.57*2.10

Active Area:                  30.60*40.80

View area:                     31.60*41.80

Interface:                      RGB

Driver IC:                       ST7789V

View Direction:              IPS

PIN:                                25

Backlight:                      White LED

Touch Screen:               No touch screen with standard module, But can be added if customer needed.

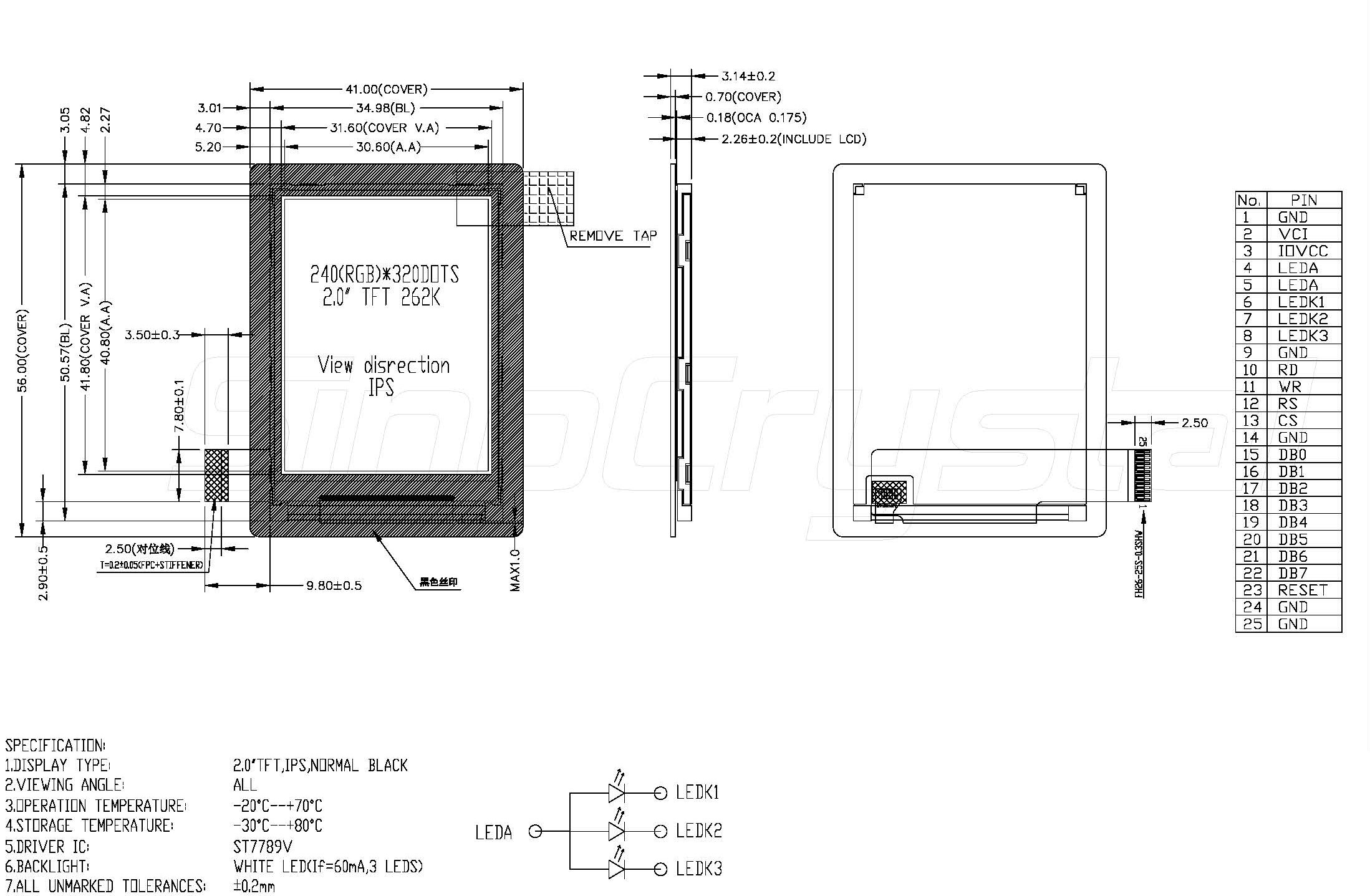

Drawing



General Specification


Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 42.72 x 60.26 x 2.45 mm.
  Active Area ( W×H ) 36.72 x 48.96 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.153 x 0.153 mm.
  Color depth 262K(MAX) colors
  Interface 8 bit MCU -
  Driving IC ST7789V -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode Normal Black -
  Backlight Type LED x 3 PCS




Interface Definition


Pin No Pin Symbol Type Description
1 GND P Ground
2 VDD P Power supply
3 IOVCC P Power supply for logic
4 LEDA P LED light, anode
5 LEDA P LED light, anode
6 LEDK1 P LED light, cathode.
7 LEDK2 P LED light, cathode.
8 LEDK3 P LED light, cathode.
9 GND P Ground
10 /RD I Read signal
11 /WR I Write signal
12 RS I Register select signal. 0:index register; 1: data register
13 /CS I Chip Select signal
14 GND P Ground
15 DB0 I/O Data bus
16 DB1 I/O Data bus
17 DB2 I/O Data bus
18 DB3 I/O Data bus
19 DB4 I/O Data bus
20 DB5 I/O Data bus
21 DB6 I/O Data bus
22 DB7 I/O Data bus
23 /RESET I Chip reset signal
24 GND P Ground
25 GND P Ground
